CORMAK Składany podnośnik towarowy L20

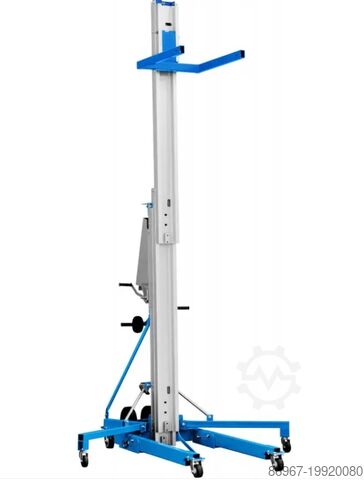

Compact Material Lift 6.5 m / 250 kg – Professional Solution for Safe High-Level Lifting

Key Features of the Device

Lifting height up to 6.5 m – ideal for ventilation installation, ceiling fitting, or loading high storage racks.
Load capacity up to 250 kg – enables safe transport of heavy and bulky components.
All-terrain wheels and self-leveling wheels – easy maneuvering over stairs, thresholds, and in tight spaces.
Chedpfx Ajw U Shued Ujc
Three-section telescopic mast – ensures rigidity, precision, and compact transport dimensions.
Mast lock – enhanced safety by preventing accidental mast section drop.
Stabilizing outriggers – maximum stability and tilt protection during load handling.
Winch with self-locking brake – keeps the load at any height without risk of dropping.

Structure and Technology

The mast consists of three segments – top, middle, and bottom – operating in a telescopic configuration. An additional mechanical safety feature in the form of a mast lock prevents accidental lowering of the load in case of lift mechanism failure. The unit is fully operated via a winch with an integrated self-locking brake, significantly increasing operational safety.

Precise Load Handling

Owing to the precisely engineered winch system and sturdy 600 mm forks, users can smoothly and reliably lift crates, pallets, and various installation items. The lift remains stable even with the mast fully extended, while wide-set stabilizers (up to 1850 mm) minimize tipping risk even if the load is distributed unevenly.

Applications

The compact material lift 6.5 m / 250 kg is suitable for a wide range of operations:

HVAC sector – installation of air conditioners, ventilation units, and high-level ductwork.
Warehousing & logistics – stocking goods on high-bay racks, loading containers and trucks.
Construction – handling prefabricated elements, ceilings, fittings, and tools on job sites.
Exhibition and retail – installing decorations, lighting systems, and advertising carriers in shopping malls and exhibition centers.

Standard Equipment

Three-section telescopic mast with locking mechanism
Winch with self-locking brake
Dual stabilizing outriggers with up to 1850 mm spread
All-terrain and self-leveling wheels – for easy mobility on any surface
Robust 600 mm transport forks

Material lift specifications:
Lifting height: 6.5 m
Weight: 185 kg
Folded height: 2000 mm
Ground clearance: 50 mm
Minimum loading height: 150 mm
Width without/with extended outriggers: 800 mm / 1850 mm
Maximum load capacity: 250 kg
Fork length: 600 mm
Load capacity by center of gravity distance:
up to 40 cm: 250 kg
up to 60 cm: 200 kg
up to 80 cm: 150 kg
up to 100 cm: 100 kg
