Cnc torna ve freze merkezi

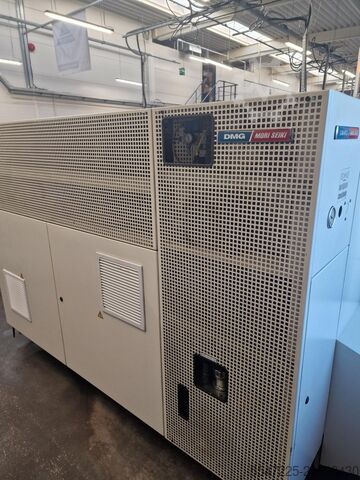

DMG MORI CTX 310 ecoLine

Durumu: iyi (kullanılmış), Üretim yılı: 2013, Fonksiyonellik: tamamen fonksiyonel, Control system: CNC path control including 15" TFT SlimLine Panel Siemens 840 D SL 4.4, with Shop Turn and freely configurable DMG Smartkey Operating hours: 38,495 h Program run time: 21,047 h TECHNICAL DATA Swing range *Over bed: 330 mm *X-slide: 260 mm Dksdpfx Aow Eb D Uobpou Maximum turning diameter: 200 mm Chuck diameter: 210 mm Center height: 190 mm Distance between centers: 581 mm Travel distance *X-axis: 160 mm *Z-axis: 450 mm Drive power (40/100% duty cycle): 16.5/11 kW Torque (40/100% duty cycle): 166.5/112 Nm Max. spindle speed: 5,000 rpm Spindle mounting (flange): 140 h5 Spindle bore: 68.5 mm Max. bar capacity: 51 mm Rapid traverse (X/Z axes): 30 m/min Feed forces (X/Z axes): 4,500 Nm C axis Speed range: 0-100 rpm Torque: 112 Nm Rapid traverse: 100 m/min Accuracy at stop:

Durumu: mükemmel (kullanılmış), Üretim yılı: 2013, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 8044000703A, Siemens 840 D Control Country of Manufacture: EU - Poland Voltage: 400V Dimensions: 3082x2260x1775 mm (with chip tray) 4228x2260x1775 mm (with chip conveyor) Net machine weight: 3400 kg TECHNICAL SPECIFICATIONS CTX 310 ecoline V1/V3 New Design Working Capacity Dedjw T Sqyepfx Abpsku Max. swing over bed: 330 mm Swing over cross slide (X-axis): 260 mm Max. turning diameter: Ø 200 mm Chuck diameter: Ø 210 mm X-axis travel: 182.5 mm Z-axis travel: 455 mm Centre height: 190 mm Distance between centers: 581 mm Feed Drives Rapid traverse, X and Z axes: 30 m/min Control: Siemens Sinumerik 840D Slim Line C-Axis with Siemens control Speed: 0 – 100 rpm Torque: 112 Nm Precision: < 0.04° Spindle Spindle nose: 140 h5 mm Front bearing diameter: 100 mm Spindle bore: Ø 74.3 mm Max. bar capacity: 51 mm Main drive with Siemens control Drive power (40% / 100% duty cycle): 16.5 / 11 kW Torque (40% / 100% duty cycle): 166.5 / 112 Nm Max. speed: 5,000 rpm Turret Number of tool stations: 12 Tool holder: DIN69880 (VDI 3425) Cylinder diameter: 30 mm Tool change (with locking): 0.95 sec Tool change (without locking): 0.4 sec Driven Tool Turret with Siemens Control Number of driven tools: 12 Drive power (40% duty cycle) at 4000 rpm: 8.4 kW Torque (40%): 20 Nm Max. speed: 4,500 rpm Tailstock Automatic movement: 396 mm Quill bore: flange Max. quill thrust: 400 daN Hydraulic Unit Tank capacity: 50 L Max. pressure: 50 bar Coolant System Tank capacity: 175 L Capacity with conveyor: 200 L Pump power: 0.85 kW Pump rate at 5 bar: 30 L/min Electrical Connection Max. power: 21 kVA Current: 400V Frequency: 50-60Hz Fuses: 33A Pneumatics Compressed air connection: 6 bar Environmental Conditions Ambient temperature: +15 to +35°C Max. humidity: 75% The technical details are provided without obligation and errors or omissions excepted.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2013, Fonksiyonellik: tamamen fonksiyonel, torna boyu: 450 mm, torna çapı: 200 mm, Control: CNC path control incl. 15" TFT SlimLine panel Siemens 840 D SL 4.4 with Shop Turn and freely assignable DMG Smartkey TECHNICAL DATA Max. turning diameter 200 mm Chuck diameter 210 mm Center distance 581 mm Travel paths * X-axis 160 mm * Z-axis 450 mm Swing range * Over bed 330 mm * X-slide 260 mm Drive power (40/100% duty cycle) 16.5/11 kW Torque (40/100% duty cycle) 166.5/112 Nm Max. spindle speed 5000 rpm Rapid traverse (X/Z axis) 30 m/min Max. bar capacity 51 mm C-axis Speed range 0-100 rpm Torque 112 Nm Rapid traverse 100 m/min Positioning accuracy ˂0.04 degrees Tool turret Number of tool stations 12 Number of driven tools 12 Tool holder (DIN 69880) D 30 mm Max. speed 4500 rpm Tailstock Tailstock stroke, automatic hydraulic 400 mm Quill taper MK 4 EQUIPMENT/ACCESSORIES  Full enclosure with electrically interlocked sliding door and work area lighting  Short bar loader BREUNING IRCO ILS-MUK-7012  Hollow clamping device AUTOGRIP with bar capacity 51 mm  Hydraulically movable tailstock incl. live centre  C-axis  Driven tool stations in turret  Tool measurement system in work area MARPOSS, manually swivellable  Workpiece removal device for parts up to ø 65 x 200 mm long and max. part weight 3 kg  Chip conveyor  Coolant system 200 l, pump capacity 30 l/min at 5 bar  Active cooling unit for control cabinet  Signal lamp (4-color)  Workpiece counter  1 HAINBUCH collet chuck Spanntop nova Kombi Axzug size 65, incl. 4 collets (ø 61, ø 20, ø 40 mm)  1 three-jaw chuck ø 210 mm  1 four-jaw chuck ø 250 mm  1 faceplate  approx. 100 fixed tool holders  5 driven tool holders  Dial gauge  Measuring devices such as mandrel and face/angle measuring instrument Dkedpfjw A I Nxox Abpju  Mounting elements  Documentation

Durumu: mükemmel (kullanılmış), Üretim yılı: 2012, DMG Mori 310 Ecoline CNC-Drehmaschine, mit C-Achse und angetriebenen Werkzeugen Steuerung: Siemens 840 D TECHNISCHE DATEN: Arbeitsbereich Max. Umlaufdurchmesser über Bett: 330 mm Umlaufdurchmesser über Querschlitten (X): 260 mm Max. Drehdurchmesser: Ø 200 mm Futterdurchmesser: Ø 210 mm Verfahrweg X-Achse: 182,5 mm Verfahrweg Z-Achse: 455 mm Spitzenhöhe: 190 mm Spitzenweite: 581 mm Vorschubantriebe Eilgang X- und Z-Achse: 30 m/min Steuerung: Siemens Sinumerik 840D SlimLine C-Achse Drehzahl: 0 – 100 min⁻¹ Drehmoment: 112 Nm Wiederholgenauigkeit: < 0,04° Djdoxftpmopfx Abpoku Spindel Spindelaufnahme: 140 h5 mm Lagerdurchmesser vorn: 100 mm Spindelbohrung: Ø 74,3 mm Stangendurchlass max.: 51 mm Hauptantrieb, Siemens-gesteuert Leistung (40%/100% ED): 16,5 / 11 kW Drehmoment (40%/100% ED): 166,5 / 112 Nm Max. Drehzahl: 5.000 min⁻¹ Revolver Anzahl der Werkzeugstationen: 12 Werkzeugaufnahme: DIN69880 (VDI 3425) Scheibendurchmesser: 30 mm Wechselzeit (mit Verriegelung): 0,95 s Wechselzeit (ohne Verriegelung): 0,4 s Anzahl angetriebener Werkzeuge: 6 Antriebsleistung (40% ED) bei 4.000 min⁻¹: 8,4 kW Drehmoment (40% ED): 20 Nm Max. Drehzahl: 4.500 min⁻¹ Reitstock Automatischer Hub: 396 mm Reitstockpinole: Flansch Max. Pinolenkraft: 400 daN Hydraulikeinheit Tankvolumen: 50 l Max. Druck: 50 bar Kühlsystem Tankvolumen: 175 l Volumen mit Späneförderer: 200 l Pumpenleistung: 0,85 kW Förderleistung bei 5 bar: 30 l/min Abmessungen: 4.228 x 2.260 x 1.775 mm (mit Späneförderer) Maschinengewicht netto: 3.400 kg Zubehör/Optionen: - C-Achse und angetriebene Werkzeuge - Angetriebene Werkzeughalter, axial und radial - Statische Werkzeughalter, siehe Fotos - Spannzangenfutter mit Spannzangen - Hydraulikfutter mit diversen Backen, siehe Fotos - Fußpedal - Späneförderer mit Kühlmitteltank - Werkzeugschrank - Werkzeugausstattung - Werkzeugmesseinrichtung - Dokumentationen - usw... Unter Strom in unserem Lager, jederzeit vorführbereit!
