Screening machine

Doppstadt SM 620 K

No. 10010

Screening machine Doppstadt SM 620 K

Used, year of construction 2016 (overhauled by the manufacturer in 2024)

Mobile drum screen on chains
Can be used for humus / soil, wood, waste, compost, light building rubble, etc.

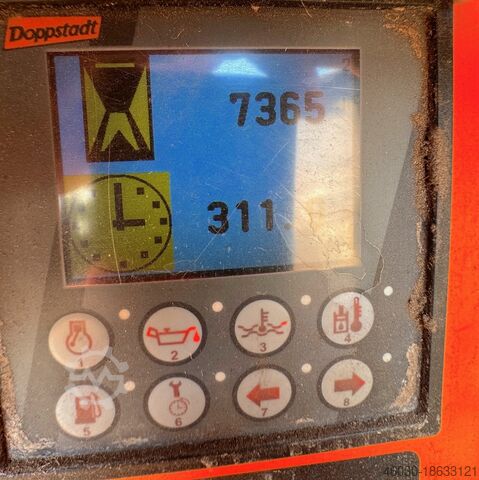

7500 working hours
Crawler chassis incl. 2 driving speeds
Track width 500 mm
Deutz TCD3.6 L4 diesel engine, 90 kW at 1600 rpm (meets EUROMOT IIIB/Tier 4i emission standard)
Auxiliary pump drive for connecting additional hydraulic equipment
Reversible fan on water and oil coolers
Complete engine unit swivels out
Fuel tank 300 litres
5 m3 hopper capacity

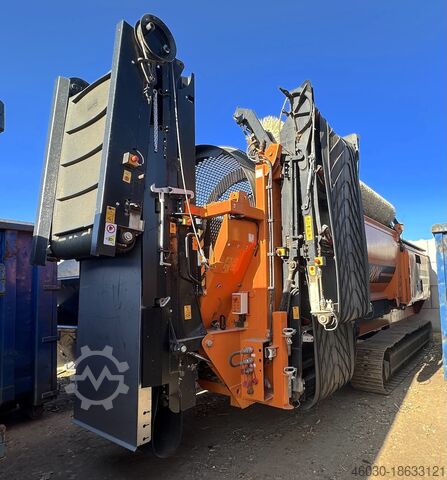

Hydraulically folding side belt, belt length 5000 mm, belt width 1000 mm
Hydraulically folding rear belt, belt length 5000 mm, belt width 1000 mm
Emergency stop switch on side and rear belt
Load-sensing material feed from the conveyor floor to the screen drum
Infinitely variable screening drum speed from 0 - 18 rpm
Infinitely variable hopper belt speed from 0 - 0.17 m/s
Control box at the rear of the machine with the following functions: Emergency stop switch (screen only) / Fold in & out rear belt / Fold in & out side belt / Bend side belt
Hydraulically folding cleaning brush with individual brush elements and spring tines
Central lubrication bars
24 V electrical control
Radio remote control incl. transmitter, receiver, 230 V charger, 12/24 V charging cable, holder for transmitter (The following functions can be controlled: Engine stop, engine speed +/-, fold rear conveyor in & out, fold side conveyor in & out, move & steer machine, prepare stone grid open/close)
Hydraulic preparation for star screen operation
Hydraulic quick hitch between rear conveyor and machine
Acoustic start-up warning
Doppstadt Telematic system
Paint finish: RAL2011 deep orange
Additional hydraulic connection 40 l/min at the rear of the machine
Chodpfx Alsv Eyqbeysd
Magnetic roller for rear conveyor
Flow divider on rear conveyor
Internal toothed hopper belt drive

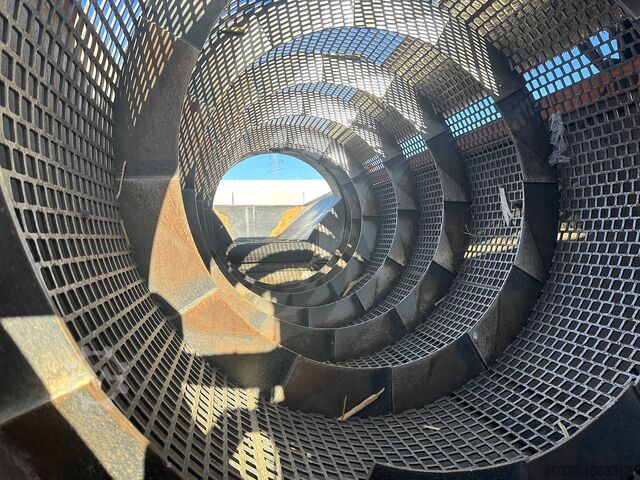

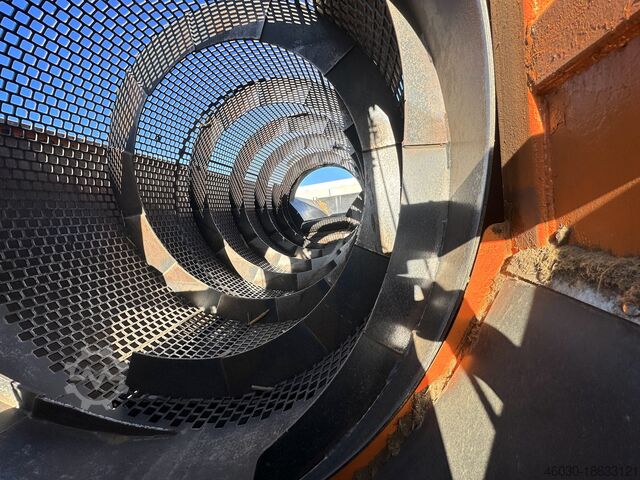

Screening drum SM620 QV30-38 BL08 for SM 620 profi/Plus/.2 (length 5430 mm / diameter 2000 mm / thickness 8 mm / perforation 30 mm (offset perforation))

Transport dimensions approx. 10550 x 3000 x 3690 mm LWH
Weight approx. 24000 kg

Sale on behalf of customer, ex location near 85221 Dachau, without dismantling, without transport and assembly
Errors in description and price excepted
Dismantling, transport and loading by us optionally possible

To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended

Sold as is

Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
Any warranty is excluded for used machines, the following applies: ‘purchased as viewed’
Pictures and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or dispatch

Terms of delivery: ex location
