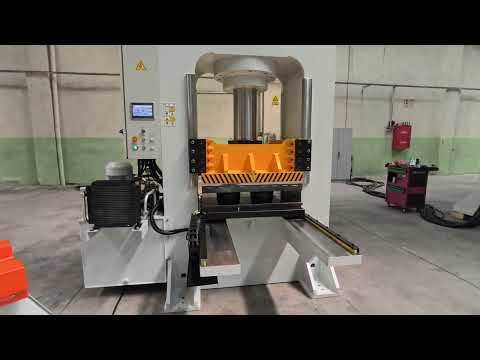

DHS-200 – 200 T Hydraulic Heated Press – Sliding Table – Heating Plates 800 × 800 mm

For sale is a DHS-200 hydraulic heated press with a pressing force of 200 T and an extendable sliding table system. The machine is equipped with heating plates sized 800 × 800 mm, an open height of 800 mm, and a hydraulic stroke of 600 mm. It is particularly suitable for laminating, forming, and thermal pressing processes using temperature-controlled tooling.

====
Technical Data + Information:
Hydraulic Heated Press DHS-200 – 200 T

==== General Specifications
- Design: Hydraulic heated press with sliding table
- Pressing force: 200 T
- Usable table area: 800 × 800 mm
- Heating plates: 800 × 800 × 95 mm
- Open width: 900 mm
- Open height: 800 mm
- Extendable table: 800 mm
- Table height: 900 mm
- Overall dimensions (W×D×H): 2,150 × 2,050 × 2,850 mm
- Total weight: approx. 9,800 kg
- Frame: welded steel frame

Hfjdoyuvrdopfx Adped
==== Hydraulic Cylinder
- Piston stroke: 600 mm
- Piston rod diameter: 380 mm
- Cylinder diameter: 180 mm
- Max. operating pressure: 260 bar

==== Hydraulic Unit
- Return speed: 22 mm/s
- Idle speed: 10 mm/s
- Hydraulic pump: ASC
- Delivery rate: 42 l
- Motor power: 7.5 kW
- Hydraulic unit: mounted next to the press
- Hydraulic block / valves: Duplomatic
- Air cooling
- Adjustable pressure
- Manual limit sensors
- Cam switch for stroke limitation
- Passive pressure hold up to 60 minutes

==== Heating System
- Electrically heated steel plates
- Heating power: 27 kW
- Temperature range up to 250 °C
- Temperature sensors: 2 per plate
- Temperature fluctuation: approx. 5–10 °C

==== Controls
- Two-hand operation
- Ram return via control button
- Stroke limitation via cam switch
- Pressure adjustment via rotary valve
- CE certificate and user manual included

==== Electrical Connection
- Main supply: 400 V AC
- Control voltage: 24 V DC
- Frequency: 50 Hz
- Heating elements per plate: 18 units
- Total heating power: 27 kW
- Hydraulic motor connection: 7.5 kW
- Total connected load: approx. 40 kW

=====

Plastics processing, laminating processes, composite materials, rubber and elastomer processing, forming presses, thermal press processes, hot pressing operations

Hydraulic press, hydraulic heated press, heated press, sliding table press, 200-ton press, 200 T press, laminating press, plastic press, forming press, vulcanizing press, tryout press, tool tryout press

Are you looking for a hydraulic press tailored to your application? Contact us for a customized quote. Our hydraulic presses are manufactured according to German machine directives as well as European Machinery Directive 2006/42/EC, EC standards, and EU safety regulations. Furthermore, our presses exceed both Canadian and European safety requirements, as they fully meet the Brazilian national safety directive NR 12, which builds on these standards. Our key strengths are custom machine construction and press automation. We offer tailor-made hydraulic presses at surprisingly competitive prices. The hydraulics in our presses are primarily equipped with components from leading European manufacturers.
