Dikey tek milli tornalama merkezi

EMAG VL 400 (Siemens)

Vertical Single-Spindle Turning Center / Vertical Lathe
Manufacturer: EMAG
Model: VL 400 (Siemens)
Year of manufacture: 2021
Operating hours: approx. 1,848

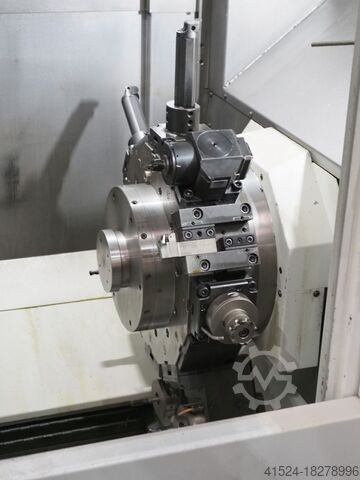

Turret base unit and Y-axis slide unit
Psdpfsvq Iwyjx Adhegw

HP turret drive unit for driven tools (C442)
with internal coolant supply to the tool
Max. speed: 6,000 rpm
Corner speed: 3,200 rpm
Tool holder unit for driven tools: 12 x BMT75

Rotary workpiece conveyor system, O version
Drag frame system for 10 workpieces
Workpiece height (incl. workpiece pallet): max. 300 mm
Workpiece weight: max. 60 kg

Set (10 pieces) drag frames for O-conveyor
For workpiece diameter: 150 - 400 mm

Air blow-off for workpiece and clamping device (Pick-Up)

Coolant and lubricant supply: 15 bar
Coolant pump delivery rate approx. 80 l/min at 15 bar.
Cooling unit (6.5 kW, water - air)
A cooling unit (with two-circuit technology) regulates the thermal balance of the machine.
Spindle drive, control cabinet, and turret are kept at ambient temperature (10°C - 40°C).

Coolant double filter, manual selector
Filtration fineness 100 μm, with electric and mechanical contamination indicator

Chip conveyor
Hinged belt design: rearward discharge
Chip discharge height: 1,100 mm. (with integrated coolant tank, capacity approx. 500 l)

Emulsion mist extraction: suction capacity approx. 800 m³/h
Rinsing gun

Workpiece measurement with probe
air blow-off for measuring probe
Tool inventory monitoring (sister tool management)

Tool breakage monitoring TOOLINSPECT MCU-EUROPA (SIEMENS 840Dsl, FANUC 31i/32i)

3-color signal tower

Axial drilling and milling head – BMT75 CC
5x angle drilling/milling head 90° – BMT75 CC (i=1:1)
Set of tools for OP10 + OP20

Hydraulic through-clamping cylinder size 150 – with 1 media channel
Max. tensile force 10,850 daN at 70 bar

Coolant through the spindle
Programmable clamping pressure adjustment

3-jaw power chuck KNCS-N 500-155 quick-change
max. = 2,200 rpm (recommended speed per DIN 6386)
Set of hard base jaws
Set of soft top jaws

Attachments for KNCS-N 500-155
Flushing nozzle in chuck bore

Additional tool holders with tools:
1x 8.BMT25VL8IKX50 finishing external tool
1x 8.BMT25VL8IKX50 roughing external tool
1x 60.7516VL8IKDI15 engraving tool
1x 60.7516VL8IKDI15 tapping chuck
1x 40.75V5KRVL8IKD face mill 50mm
3x 80.75V5VL8IKD boring bar holder
2x 27.V520HYDL26 drills, diameter 20mm
1x 42.V522L08Ik drill, diameter 22mm
1x 27.V514WNL31 drill, diameter 14mm

Software package
Operating manual / Maintenance manual
