Gildemeister NEF 520 K

Gildemeister NEF 520 K

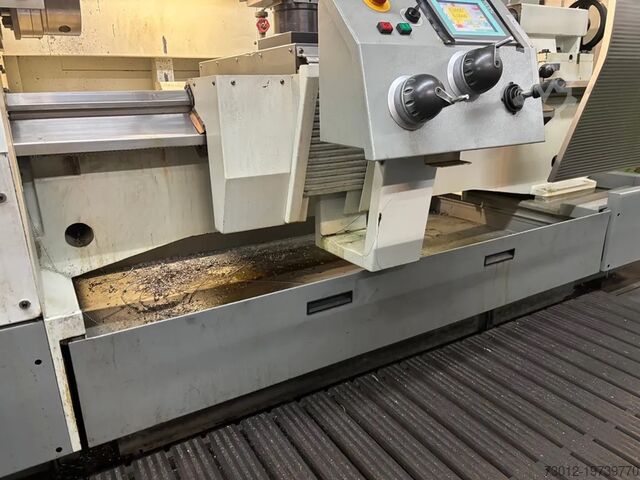

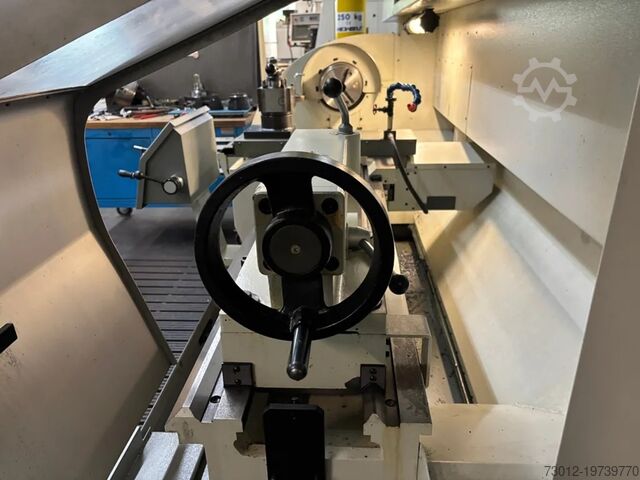

Gildemeister NEF 520 K cycle-controlled lathe, Siemens Sinumerik 810 DL control, year of manufacture 2012, in excellent original condition. The machine comes from the training workshop of a renowned German mechanical engineering company.

Technical Details
Swing diameter over bed:
500 mm
Swing diameter over cross slide:
290 mm
Turning length:
1,250 mm

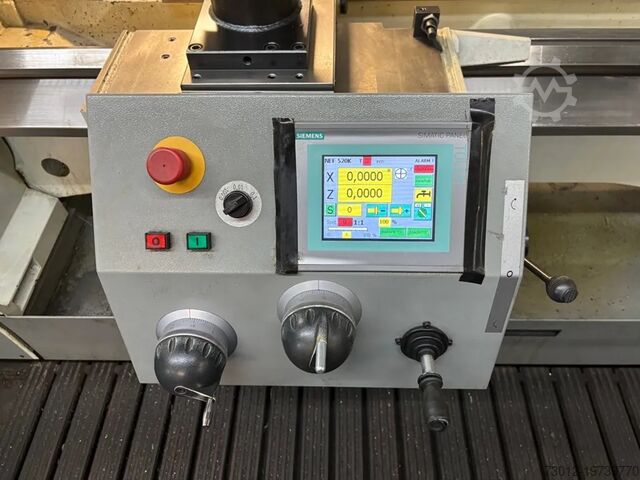

Control:
Siemens Simatic
Cross slide travel:
260 mm
Distance between centers:
1,500 mm
Main Spindle:

Speed range – main spindle:
8 – 3,000 rpm
Main spindle drive power:
Kdedow Iqd Iepfx Ap Hjt
12 kW
Max. torque:
920 Nm
Number of gearbox stages:
2
Spindle nose:
No. 8 DIN 55027
Front bearing spindle diameter:
120 mm
Usable bar diameter:
62 mm
Spindle mount:
ME80
Chuck diameter:
250 mm
Tool Turret:

Tool system:
MultiFIX – C

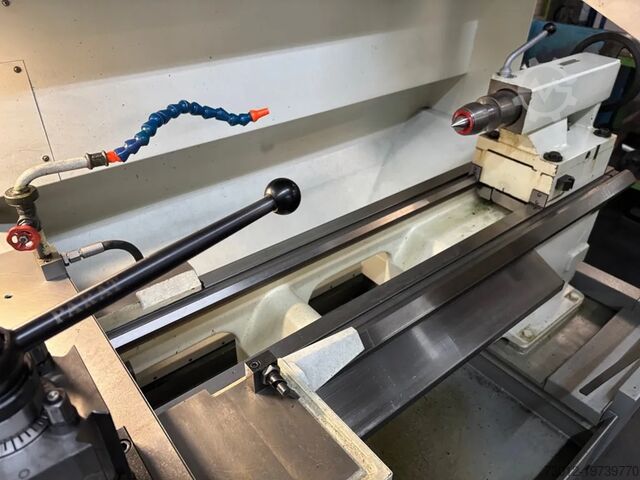

Tailstock:

Quill diameter:
80 mm
Quill taper:
MK 5
Quill stroke:
180 mm
Feeds:

Rapid traverse:
x/z: 4 / 6 m/min
Feed force:
x/z: 5 / 10 kN
Total power requirement:
28 kVA
Machine weight approx.:
3.0 t
Space requirement approx.:
3.5 x 2.5 x 2.0 m

Accessories and Equipment:

1 piece coolant system

About the Machine:
We offer a Gildemeister NEF 520 K cycle-controlled lathe, year 2012, in very good condition. Of course, the machine is fully operational. All slides move very smoothly and evenly. Even at high speeds, the Gildemeister runs very quietly. This newer generation of lathes is extremely user-friendly and is capable of producing ground-quality surface finishes. Take the opportunity to view this machine under power at our premises and see for yourself the excellent condition.
