CNC işleme merkezi - yatay

HELLER H - 2000

Ref. No.: 10596
Manufacturer: HELLER
Model: H - 2000
Year of manufacture: 2017
Control system: CNC
Control unit: Siemens 840 D
Location: Halberstadt
Country of origin: Germany
Machine No.: 56XXX
X-axis travel: 630 mm
Y-axis travel: 630 mm
Z-axis travel: 630 mm
B-axis: 0.001 °
Table load capacity: 500 kg
Max. tool length: 350 mm
Max. tool diameter: 160 mm
Tool holder: HSK 63
Number of tool magazine pockets: 80
Spindle speed: 16,000 rpm
Tool changer: double gripper
Max. part height: 850 mm
Dsdpfx Absxmfatspswc
Max. torque: 95 Nm
Rapid traverse X/Y/Z: 60 mm/min
Rapid traverse X-axis: 80 m/min
Rapid traverse Y-axis: 80 m/min
Rapid traverse Z-axis: 90 m/min
Drive power - spindle motor: 40 kW
Internal coolant supply: 50 bar
Number of pallets: 2
Pallet size (LxW): 400 x 500 mm
Spindle operating hours: 1,000 h
Operating hours: 3,000 h
Max. swing diameter over workpiece: 720 mm
Media interface: 5-fold

Additional Information:

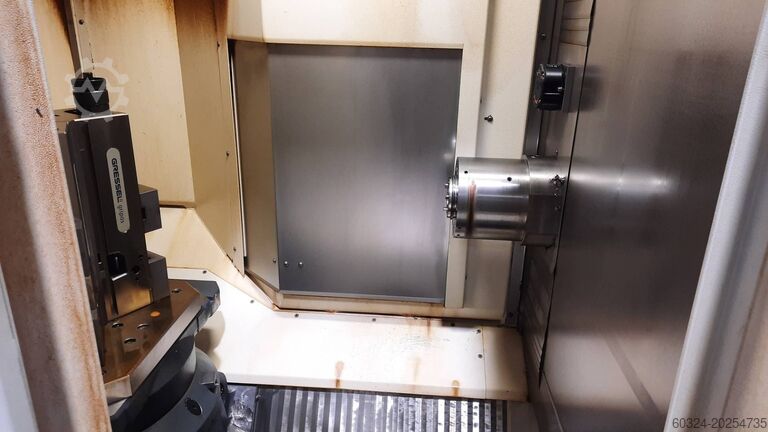

- Equipped with NC rotary table.
- State-of-the-art spindle technology
- Ideal for precise machining applications.
- Spindle hours: 1,000
- Pallet manually indexable 4 x 90°
- Hydraulic pressure: 200 bar
- Fast drill break detection

The machine can be inspected under power by appointment.
