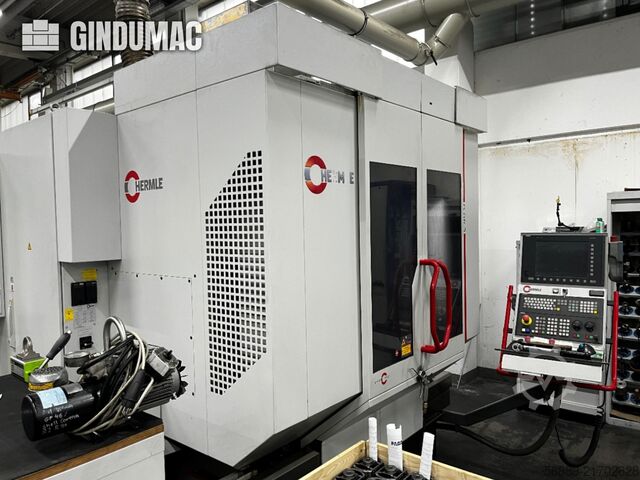

HERMLE c40u

HERMLE C40U

Durumu: kullanılmış, Üretim yılı: 2003, makine/araç numarası: 16105, X/Y/Z hareket mesafeleri: 850x700x500 mm, Takım tutucu SK 40, takım değiştirici ile birlikte, prob olmadan, HEIDENHAIN kontrol ünitesi, ağırlık: 10.500 kg, 1 adet ERBA KÄLTE GMBH marka soğutucu, prob olmadan, soğutma yağları alıcı tarafından bertaraf edilmeli ve elektrik devresinden yetkin şekilde ayrılmalıdır, makine 7./8. haftada 08:00-16:00 saatleri arasında teslim alınabilir. Lrjdjyidkzepfx Aa Ijh

Durumu: kullanılmış, Üretim yılı: 2016, The Mazak VTC 800 series is a range of high-performance, large-format 5-axis machining centers for large workpieces, renowned for their high precision and rigidity. Ideal for aerospace, energy, and heavy machinery industries, these machines feature integrated spindles, rapid tool change, and enable efficient complete machining of complex components. Accessories: - Tool magazine for 30 tools - Tool length measurement and tool breakage detection - Factory-prepared chip conveyor (left side) - Magazine (HSK) for 155 tools - Air blast unit at the workpiece - Signal light (yellow: end of machining) - Additional workspace lighting - Coolant gun - Air blast through spindle - Preparation for 70 bar high-pressure system, including interface - Automatic operator door opening/closing - Mazak Monitoring System B RMP 60 (only/H/V) - Collision monitoring by Brankamp - 2x Renishaw TS27R tool setting units - NC rotary table - Clamping device for vertical use of rotary table - Table center partition for pendulum machining - 3D workspace model in STEP format - 5-axis milling technology - Knall Compaktfilter KF400/2300 (filter capacity: 400 l/min, tank volume: 2300 l) - High-pressure coolant, 70 bar, 7 pressure levels - Hinge-type chip conveyor - Additional M-codes (1 set = 2 M-codes) - Preparation for twin extraction system (mechanical nozzle) Ø 198 mm - Transformer for European market - 1 set of manuals in electronic format on CD - 1 set of calibration tools - Foundation set (anchor bolts + plates) - MAZAK standard color - Workspace lighting Additional equipment: - Air extraction system AirFresh FMN V12 (installed on both sides, linked to door sensor) - Clamping device for vertical operation of rotary table - 2x Renishaw TS27R integrable tool setting units Spare parts: - Y-axis motor for tool magazine - Linear axis shifter motor - Rotary axis shifter motor Lsdpex Idwijfx Aa Iorh - Cylinder for swiveling unit Technical Data: - Width: 3500 mm - Length: 820 mm - X-axis travel: 3000 mm - Y-axis travel: 800 mm - Z-axis travel: 720 mm - Min. distance spindle nose to table top: 140 mm - Max. distance spindle nose to table top: 860 mm - Max. table load: 2500 kgf - B-axis: ±110 degrees - Main spindle taper: SK40 (taper 40), fits 155 HSK tools - Max. spindle speed: 18,000 rpm - Min. spindle speed: 35 rpm - Rated power (100% duty cycle): 33.0 kW - Rapid traverse X/Y/Z: 50 m/min - Table width: 3500 mm - Table length: 820 mm - T-slot width: 18 mm - Number of T-slots: 7 - T-slot spacing: 100 mm - Table height from floor: 870 mm - Tool changer, number of tool positions (standard): 30 - Number of tool positions (optional): 48 - Tool selection method: shortest path - Tool shank: SK40 - Adjacent tool occupied: 80 mm - Adjacent tool free: 130 mm - Max. tool weight: 8 kgf - Total magazine tool weight: 150 kgf - Max. tool length: 350 mm - Tool change time (chip-to-chip): 4.7 s - Connected load: 400 V / 50/60 Hz - Air pressure: 5–9 bar - Air consumption: 260 l/min - Tank capacity: 500 l - Dimensions (H x L x W): 3376 x 5480 x 4051 mm - Approx. weight: 16,300 kg - Color: Grey / Black

Durumu: iyi (kullanılmış), Üretim yılı: 2003, Teknik veriler için resimlere bakınız. Lredpsx R S R Nofx Aa Ieh

Durumu: yeni, Hermle C20U için 3'lü ilave tabla; 3 döner tabla senkronize şekilde döner, C ekseninin nasıl programlandığı belirtilebilir. Ayrıca C800U, B300U, C600U, C30U, C250U, C32U modelleri için de temin edilebilir. Tanınmış firmalarda 20 yılı aşkın süredir defalarca kullanılmaktadır. 3 parçayı aynı anda işleyin, daha az takım değişimi, daha uzun makine çalışma süresi. Sorularınız için: huber-cnc.com Lrodpsylyqfofx Aa Ish
