Kanca kasalı yük kamyonu (roll-off)

HIAB Ultima 26S59 Abrollanlage, Funk

Vehicle location: Bovenden, hydraulic side locking, radio remote control

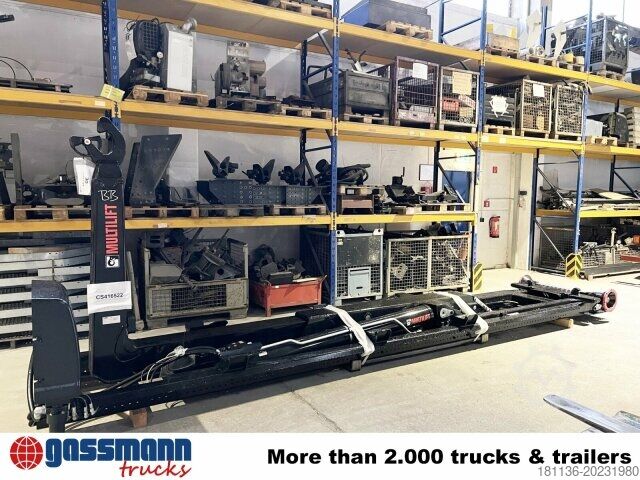

Body: 26t roll-off system Hiab Multilift Ultima 26S59 for containers from 5.25m to 6.75m, with wireless control
Fully hydraulic MULTILIFT hookloader system (roll-off tipper) in accordance with the EU Machinery Directive, CE-certified, for containers according to DIN 30722
Main unit includes:
Csdpfexlq Hpjx Abvorh
- Universal mounting frame made of Z-profiles, bolted to the truck chassis
- Rear tipping frame with container locking mechanism
- Front tipping frame with tipping cylinders
- Telescopic arm with telescopic cylinder
- Mechanical interlock between front and rear tipping frames
Hydraulic system includes:
- Double-acting cylinders with load holding valves and hose rupture safety directly on cylinders
- Device control via compact operator panel with CAN-bus cable, integrated monitoring lights, and electromagnetic valve actuation (PLC control) with two-stage mode (precision/fast mode) in both directions for the lift cylinders
- End position damping for tipping frame for gentle placement of the container on the vehicle
- CE safety package
- Tipper indicator
- Device fully painted
- 2nd generation cabin control (FLEX and PRO)

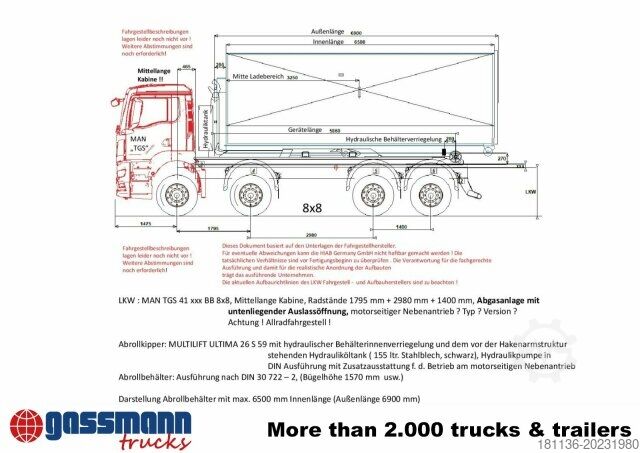

Device length: 5900mm (G-dimension)
Hook height: 1570mm
ACCESSORY DETAILS WITHOUT GUARANTEE. Subject to change, prior sale, and errors excepted!
