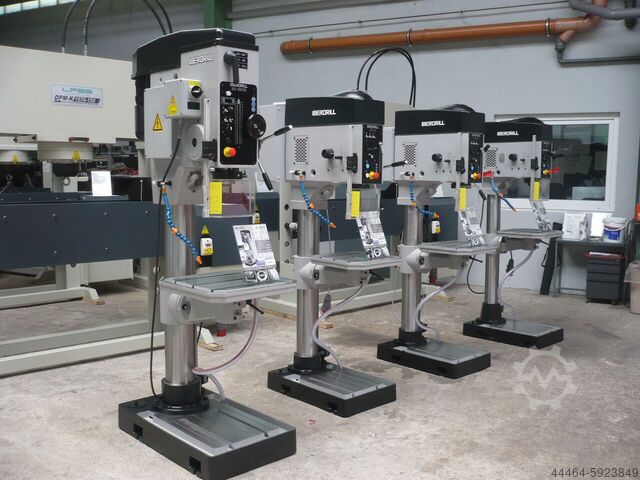

COLUMN DRILLING MACHINE IBERDRILL BC-50 VE
TECHNICAL DATA - STANDARD
Max. drilling capacity for steel (St 60) under continuous operation S1 Ø 50 mm
Max. drilling capacity for grey cast iron (GG 20) under continuous operation S1 Ø 60 mm
Max. thread cutting capacity for steel (St 60) under continuous operation S1 M 42
Max. thread cutting capacity for grey cast iron (GG 20) under continuous operation S1 M 50
Tool holder in the spindle MK 4
Max. spindle stroke (drilling depth) 200 mm
Spindle motor power 4 kW
Drive 3-speed gearbox and V-belt
Speed adjustment stepless via potentiometer
Speed range for 50 Hz motor,
n = 1,500 rpm 30 – 300; 90 – 900; 190 – 1,900 rpm
Feed automatic or manual
Number of automatic feeds 4 speeds
Range of automatic feeds 0.1 – 0.2 – 0.3 – 0.4 mm/rev
Table dimensions (width x depth) 550 mm x 550 mm
Column diameter 175 mm
Distance spindle center / column 360 mm
Machine weight net/gross 760 kg / 850 kg
Dimensions of transport packaging (length x width x height) 2.4 m x 0.7 m x 1.3 m

STANDARD EQUIPMENT / BASIC MACHINE
Gearbox with high-quality gears and automatic oil pump lubrication
and V-belt
3 gearbox speeds can be preselected via 1 front lever
3 speed ranges with stepless speed adjustment via frequency converter
digital speed display integrated in the front panel
4 automatic feeds
electromagnetic clutch
ergonomic 4-way handle cross with integrated feed buttons
handwheel for fine manual feed
scale with adjustable drilling depth, automatic tool ejector
adjustable, rotatable and tiltable work table (Type MGI)
machine base plate with machined support surface, T-slots and integrated coolant system
Chjdegy Halspfx Alysd
automatic feed reversal during thread cutting
integrated lighting, EMERGENCY STOP button
chip guard with microswitch monitoring
thermomagnetic motor protection, switching electrics in the low voltage range
Color RAL 7004 (signal gray), RAL 9011 (graphite black)
Documentation, operating and maintenance instructions
