Agitator tank with dissolver

Inox Behälter GmbH STOC2200RWD

Factory-new agitated vessel with dissolver
Type: STOC2200RWD

Volume: approx. 2,266 liters
Dodpfx Acew Dy Hlofowd
Design: Vertical construction on three height-adjustable feet
Construction: Single-walled
Medium-contacting material: 1.4301 stainless steel (AISI304)
Surface: External satin finish, internal BA (IIId)
Internal weld seams: Pickled, passivated and brushed
Max. operating pressure: Atmospheric
Max. operating temperature: 95°C
Top: 15° conical top
Bottom: 15° conical bottom with central outlet DN50 DIN11851

Tank dimensions:

Tank diameter: 1,430 mm
Cylinder height: 1,250 mm
Total height: 2,160 mm
Foot height: 500 mm
Outlet to floor distance: 350 mm

Equipment:

1x Ø 500 mm manway cover with swivel bracket on top, EPDM gasket
1x agitator flange connection IEC200
3x calotte / height-adjustable feet
1x stainless steel vent/bleeder valve DN50, non-pressurized, on the top
1x DN50 DIN11851 outlet port centered in the bottom
1x DN50 DIN11851 port with blanking cap on the top
1x DN65 DIN11851 port with blanking cap on the top
2x lifting lugs on the top
1x ladder bracket on the cylinder
1x nameplate

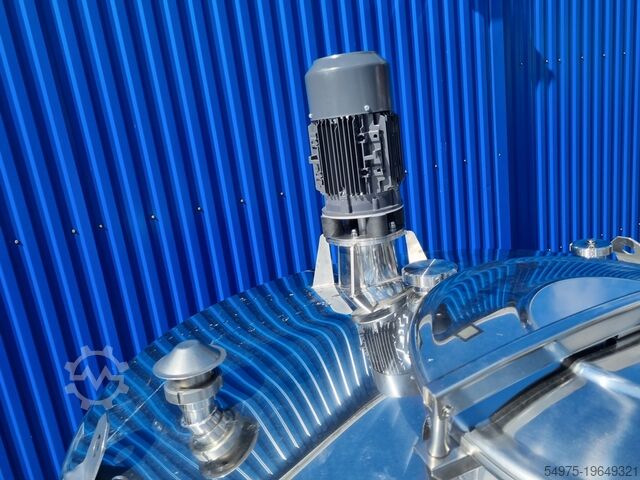

Agitator:
Dissolver
Manufacturer: Schwarzer Rührtechnik GmbH
Type: SRTDMK/7.5-1500
Power: 7.5 kW
Speed: 1,410 RPM
Operating voltage: 3PH 400V

- Heavy-duty agitator shaft mounted to the agitator motor with muff coupling
- Agitator shaft dynamically balanced for smooth running within the speed range
- 1 piece dissolver disc Ø 275 mm screwed onto the end of the agitator shaft
- Stainless steel flange with V-ring seal, EPDM
- Motor mounted flexibly on neoprene rubber-metal buffers
