KK Kletzer CNC Abkantpresse KKI EUROPA XL 3020 mm x 220 to, Y

Pressure: 220
Bending length: 3020 mm
Frame gap: 2550 mm
Installation height: 600 mm
Stroke length (max.): 350 mm
Throat depth: 450 mm
Dimensions (LxWxH): 3745 x 2290 x 3055 mm
Approx. weight: 11,250 kg
4 axes (Y1, Y2, X, R): Yes, all axes controlled by Delem DA 66 (2D graphic controller)
CNC crowning via control: Yes, with Delem DA 66 CNC controller (2D graphic)
Motor power: 22 kW
Technical specifications XL 30220
Unit
Bending length: 3020 mm
Bending force: 220 t
Approach speed: 140 mm/s
Bending speed: 10 mm/s
Return speed: 130 mm/s
Stroke: 350 mm
Installation height / daylight (E): 600 mm
Throat depth (D): 450 mm
Frame gap (B): 2555 mm
Machine length (L): 3745 mm
Machine width (W): 2290 mm
Width without front gauge (Y): 1720 mm
Maximum height: 3055 mm
Main motor: 22 kW
Oil tank capacity: 300 l
Machine weight: 11,800 kg

Model: KK Kletzer EUROPA XL

The powerful EUROPA XL press brake excels with its high precision, accuracy, and versatile range of applications. The EUROPA XL offers a very large installation height and consequently a long stroke (cylinder travel). The throat depth is also exceptionally large to provide as much working space as possible. We focus on quality, which is also reflected in the controller.
As standard control, we use the high-grade Esa S640 (2D graphic controller). Furthermore, the KKI Europa XL press brake is equipped with Y1, Y2, X, and R CNC axes, all managed via the controller. Of course, CNC crowning is included using the Esa S 640 (2D graphic controller).
No compromises are made regarding the upper tool and die; our KKI EUROPA XL CNC press brake is equipped with quality tooling from EUROSTAMP Italy.
Naturally, every machine is only as good as its service. For this reason, we place great emphasis on highly qualified employees with extensive experience in CNC sheet metal processing.

CNC axes: Y1, Y2, X, and R
Esa S 640 (2D graphic controller)
Back gauge with double linear guide and ball screw
Motorized CNC crowning device
Heavy-duty height adjustment with handwheel; from 175 t, heavy-duty version on linear guides
Laser safety device on upper beam
CE safety equipment
Various options available

Additional control options:
ESA 640 2D 15'' touchscreen controller €4,520 incl.
ESA 675 W 3D 21'' touchscreen controller (Windows based) €6,485

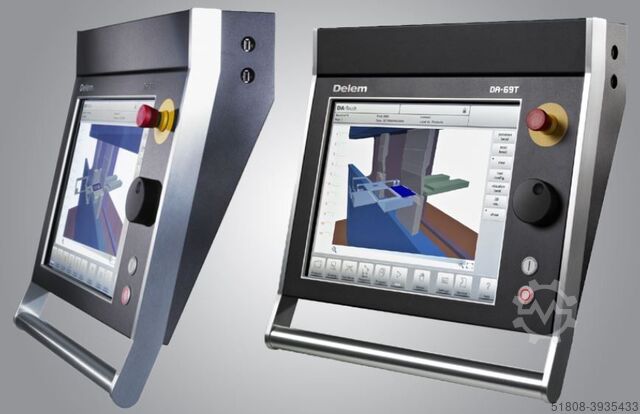

DELEM 66 T 2D 17'' touchscreen controller (Windows based) €10,165
DELEM 69 T 3D 17'' touchscreen controller (Windows based) €16,350
