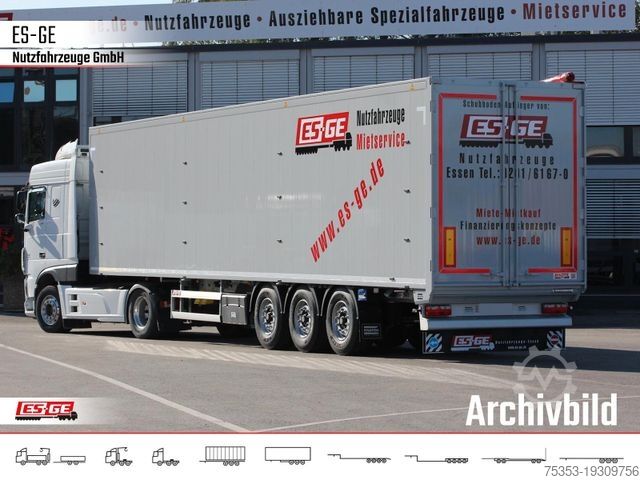

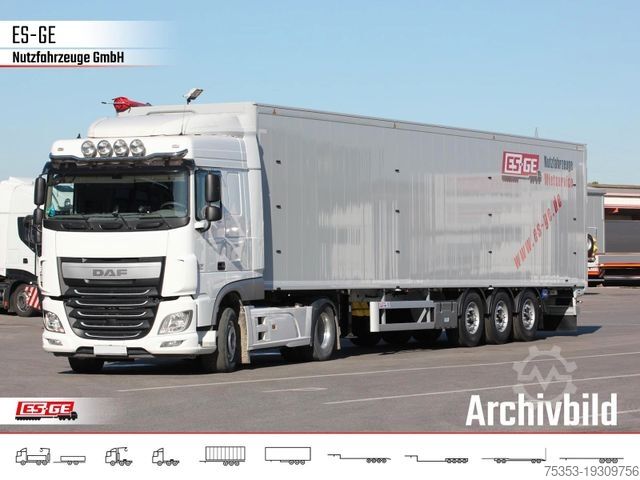

Yürüyen tabanlı yarı römork

KNAPEN 3-Achs-Schubbodenauflieger 92m³

Durumu: kullanılmış, azami yük ağırlığı: 34.070 kg, toplam ağırlık: 42.000 kg, dingil konfigürasyonu: 3 dingil, ilk tescil: 01/2024, bir sonraki muayene (TÜV): 02/2026, yükleme alanı hacmi: 92 m³, toplam genişlik: 2.550 mm, Donanım: ABS, You can find our complete vehicle stock, including immediately and short-term available vehicles, on our website. Excerpt from the equipment. Full specifications available upon request. Vehicle * The semi-trailer is based on a self-supporting chassis made of high-quality S700 steel * The chassis runs from the landing legs to the rear end * 2 inch king pin, mounted on approx. 10 mm thick fifth wheel plate St 52-3 * Fifth wheel plates for a max. king pin load of 15,000 kg Axles * 3 x 9 t Knapen HD axles, rigid, with approx. 430 mm disc brakes, 10 bolts ET 120 * Standard control console with gauges and controls for air suspension, position: left in front of the axles * 1st axle as lift axle, fully automatic via EBS, incl. starting aid (3x brake system) * Radio remote control Tyres and Rims * 6 x steel rims * 6 x tyres 385/65 R22.5 Attachments * Steel landing legs with tiltable base, maximum static load: 50 t, maximum lifting load: 24 t * 6 x half-round mudguards * Antispray mats fitted behind the 3rd axle * Standard lighting board + cover flap * Rear end crossmember * Fixed mudflap installed under the bumper * Bumper according to R58-03. Height approx. 375 mm, ground clearance approx. 450 mm * Plastic toolbox with bottom-hinged lid, approx. 1,000 x 500 x 500 mm, position: left rear behind the axles * Aluminium side underrun protection, open version, foldable as per EC regulations * One long ladder, mounted behind the side underrun protection or under the trailer * One extendable step with platform for easy entry, mounted at the rear of the trailer * 2 wheel chocks, position: 2x left * Broom and shovel holder, mounted right in front of the axles Floor * CARGOFLOOR CF 500 SL-C system * The CARGOFLOOR system is equipped with an E-control * Smooth aluminium floor boards, approx. 10 mm, 21 boards * The floor boards are fitted with aluminium end caps * Stainless steel plate at the rear below the floor for additional wear protection Body Front Wall * The largest platform on the market is mounted on the front wall * 2 ladders on the front wall, position: left and right * A door is mounted in the front wall for easy access at the front of the trailer, position: left - opening outwards Movable Partition Wall * For complete emptying, the trailer is equipped with an aluminium movable partition wall, and a brush to prevent contamination of the running rails * Ground clearance approx. 100 mm Side Walls * Extra robust top edge profile with rails for the movable partition wall * Top edge profile with groove for the PVC side curtain fixing Dodpfxjwqlg Rs Aatscp * The side walls consist of approx. 3 mm inner side and approx. 2 mm outer side * The side walls are continuously welded over their full height (inner side) for maximum strength and minimal contamination * Welding is carried out using a high-quality, fully automated welding process * Incl. left side protection tarpaulin Rear End * Rear doors are fully welded from wall and frame profiles for extra strength * Doors equipped with a pneumatic safety lock for safety during unloading * Through-loading height with closed top beam at rear approx. 2,665 mm * Single stainless steel locking bar per rear door, in heavy-duty design Top Beam * Steel top beam with wedge Roof Bows 4 pcs.
