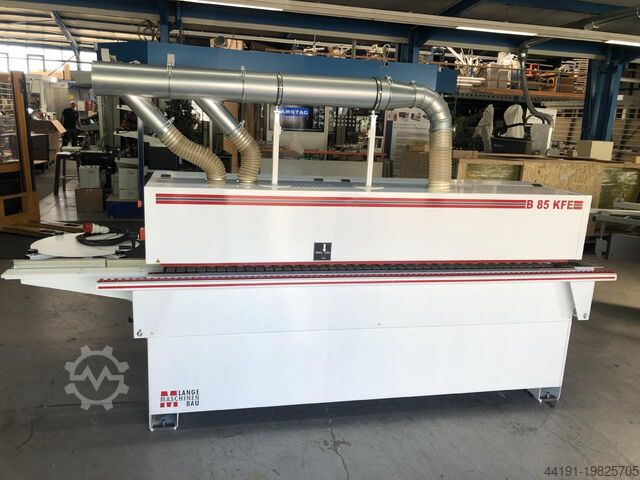

Kenar bantlama makinesiLange Maschinenbau
B 85 KFE
Kenar bantlama makinesi
Lange Maschinenbau
B 85 KFE
sabit fiyat KDV hariç
€19.900
Üretim yılı
2017
Durumu
Kullanılmış
Konum
Almanya

Resimleri göster
Haritayı göster
Makineye ait bilgiler
- Makine tanımı:
- Kenar bantlama makinesi
- Makine üreticisi:
- Lange Maschinenbau
- Model:
- B 85 KFE
- Üretim yılı:
- 2017
- Durumu:
- kullanılmış
Fiyat ve Konum
sabit fiyat KDV hariç
€19.900
- Konum:
- D - Hessen

Ara
Teklif detayları
- Listeleme kimliği:
- A198-25705
- Referans no.:
- ISSH20200602-2312
- Son güncelleme tarihi:
- 10.12.2025
Açıklama
Used machine
Year of manufacture: 2017
Features and technical data:
Dsdpfxjw Sbbls Admjkg
Factory-overhauled by Lange Maschinenbau
Minimum workpiece width: approx. 75 mm
Workpiece thickness: 8 - 50 mm
Minimum workpiece length: approx. 120 mm / 180 mm for corner copying
Edge thickness: 0.4 - 2 mm
Jointing unit cutting depth: 0 - 2.0 mm, stepless adjustment
Jointing unit with 2 counter-rotating, operation-controlled jointing units
Diamond tools height = 55 mm
Direct glue application to the workpiece
Glue pot with 1.5 kg capacity
EVA/PUR glue pot with discharge function
Pressure unit
End trimming unit with high-frequency motor, 2 saw blades, and high-precision linear guides
Combined milling station for radius and chamfer milling
Corner copying unit
Surface scraper unit
Extraction pipe system with 90° bend and hand slide valve mounted on the machine
Machine length: 3273 mm
Dimensions: 320x110x200
Availability: short-term
Location: Flörsheim
Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
Year of manufacture: 2017
Features and technical data:
Dsdpfxjw Sbbls Admjkg
Factory-overhauled by Lange Maschinenbau
Minimum workpiece width: approx. 75 mm
Workpiece thickness: 8 - 50 mm
Minimum workpiece length: approx. 120 mm / 180 mm for corner copying
Edge thickness: 0.4 - 2 mm
Jointing unit cutting depth: 0 - 2.0 mm, stepless adjustment
Jointing unit with 2 counter-rotating, operation-controlled jointing units
Diamond tools height = 55 mm
Direct glue application to the workpiece
Glue pot with 1.5 kg capacity
EVA/PUR glue pot with discharge function
Pressure unit
End trimming unit with high-frequency motor, 2 saw blades, and high-precision linear guides
Combined milling station for radius and chamfer milling
Corner copying unit
Surface scraper unit
Extraction pipe system with 90° bend and hand slide valve mounted on the machine
Machine length: 3273 mm
Dimensions: 320x110x200
Availability: short-term
Location: Flörsheim
Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
