Vakum pompası standı

Leybold Trivac D65B & WAU 251

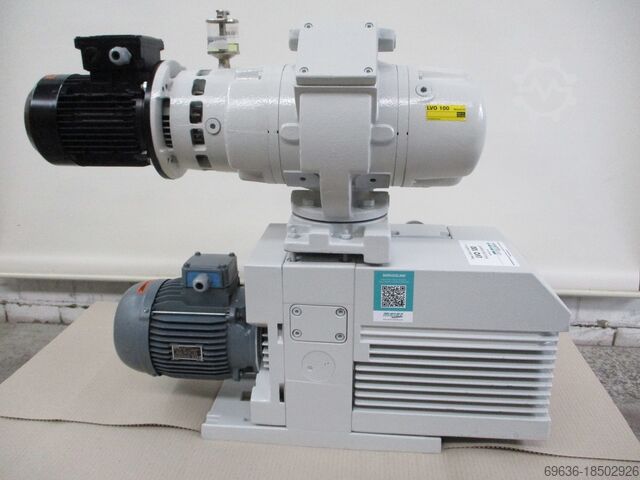

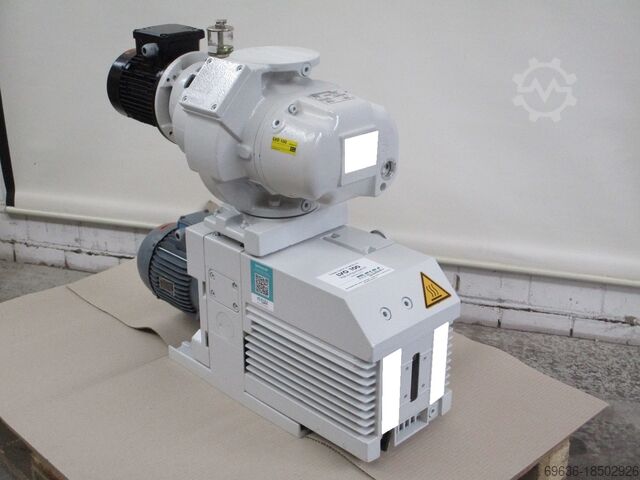

Vacuum Pump Unit by Leybold comprising:
- 1 rotary vane vacuum pump, model Trivac D65 B
- 1 roots pump, model WAU 251

The factory-overhauled vacuum pumps are available for delivery approximately 4–6 weeks after order and are ready for immediate use.

We recommend installation to be carried out exclusively by trained personnel.

Connection/adaptation material available upon request.
Oil filling: LVO 100

Technical data Trivac D 65 B:
Including roots pump adapter
Pumping speed: 65 m³/h (50 Hz) / 75 m³/h (60 Hz)
Noise level according to DIN 45 635 without / with gas ballast: 57 / 59 dB(A)
Dimensions (LxWxH): 794 x 234 x 317 mm
Oil filling min/max: 2.0 / 3.3 l
Ultimate pressure: 5x10-3 / 2x10-3 mbar
Optional: Double oil filter and oil mist separator available upon request
Optional: Automatic oil return available upon request

Technical data WAU 251:
Pumping speed: 253 m³/h (50 Hz) / 606 m³/h (60 Hz)
Noise level according to DIN 45 635: 64 dB
Dimensions (LxWxH): 752 x 390 x 320 mm
Oil filling: 1.6 l
Ultimate pressure: 2x10-4 / 8x10-4 mbar

Subject to prior sale!
This offer is valid only for customers in Germany and other European countries!
