Paslanmaz çelik (V2A) karıştırma tankı

Stainless steel (V2A) agitator tank, vertical design

Technical data / Dimensions
Available units: 2
Capacity: approx. 86,000 litres
Tank type: Agitator tank
Condition: used
Food-grade: yes
Design: vertically mounted
Inner diameter: approx. 3,600 mm
Outer diameter: approx. 3,650 mm
Cylindrical height: approx. 9,500 mm
Total height: approx. 11,000 mm
Specific gravity of medium: 1.05 t/m³
Operating pressure: non-pressurised
Material / Specifications
Shell material: V2A (1.4301)
Internal welds: ground and polished

Equipment
Support design: profile feet
Number of feet: 6
Mounting: fixed
Feet: adjustable in height

Bottom shape: dished (Klöpperboden)
Top head: dished (Klöpperboden)

Top features:
1 x agitator flange
1 x level measurement
2 x crane lugs
1 x threaded nozzle DN 65 for CIP
1 x vent nozzle DN 400 (without cover)
2 x ladder hooks

Shell features:
1 x manhole (340 x 440 mm) with cover
1 x clear drain nozzle
1 x threaded nozzle DN 65
1 x nameplate
1 x ladder hook
1 x sampling valve
Various cable ducts to top head

Bottom features:
1 x residual drain (approx. DN 50) with outflow pipe (cut off)
1 x nozzle for level measurement

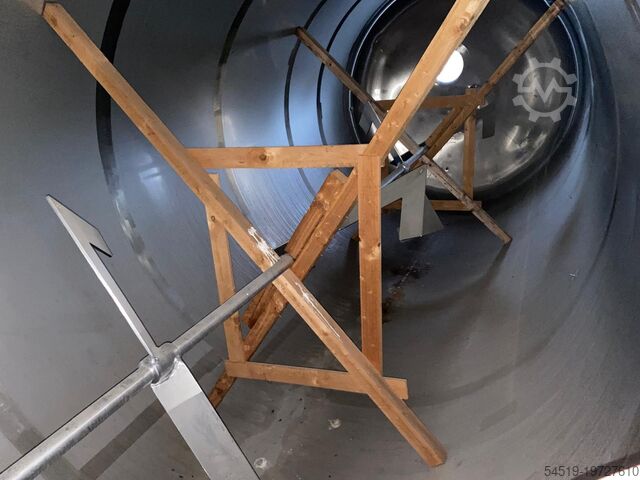

Agitator:
Agitator included
Agitator type: beam agitator
Nsdpfx Ahow Ibi Ijwsdf
Number: 1
Mounting: top-entry
Number of agitation levels: 3
Bottom bearing for agitator shaft included

Documentation
Sketch available
