CNC torna-freze merkezi 420 x 1500 mm

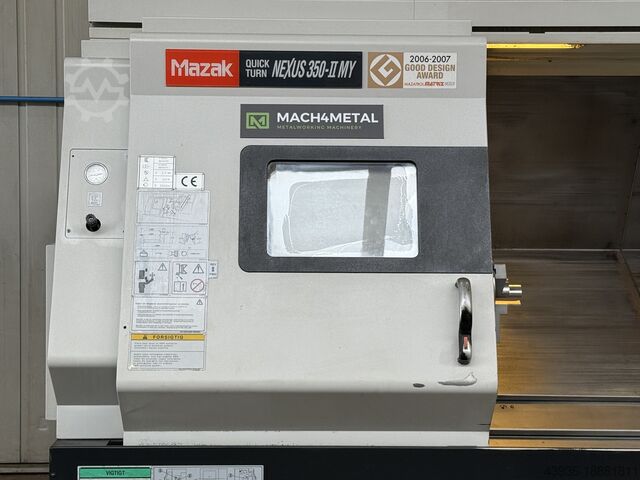

Mazak QTN 350 - II MY

Durum: mükemmel (kullanılmış), Üretim yılı: 2006, çalışma saatleri: 53.244 h, Fonksiyonellik: tamamen fonksiyonel, Technical Specifications – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Max. gear width: 110 mm Number of teeth: 1–300 Cutter head size for face milling (FM): 18" diameter Cutter head size for generating milling (FH): 210 mm radius Max. cutter spindle speed: 600 min⁻¹ Work Spindle Cone diameter at front: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Hfsdoxwzu Ispfx Anksk Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Required installation space (L × W × H): 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Electrical Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Network frequency: 50 Hz Control voltage: 24 V DC

Durum: mükemmel (kullanılmış), Üretim yılı: 1991, Swing Diameter: 400 mm O F F E R We can offer you, subject to prior sale and errors excepted, the following ex stock on a non-binding basis: WMW - GLAUCHAU Universal Internal Cylindrical Grinding Machine with Face Grinding Attachment Model: SI 6/1 AS-N x 315 Year of Manufacture: 1991 ----- Internal Grinding Diameter Range: 40 - 400 mm Max. Grinding Depth: 315 mm Max. External Grinding Diameter: 400 mm Max. Workpiece Weight: 630 kg Hodpfxoxyllve Ankjfk Workpiece Swing Diameter with/without Chuck Guard: 500 / 600 mm Center Height over Table: 360 mm 16-step Workpiece Spindle Speeds: 40 – 400 rpm Workpiece Spindle Bore Approx.: 53 mm Max. Swivel of Workpiece Headstock: 30° Max. Cross Adjustment of Workpiece Headstock: 400 mm Grinding Spindle Stock Radial infeed: 70 mm Grinding Spindle Stock Cross Adjustment Approx.: 100 mm Grinding Head Infeed, Interval Control: 0.001 – 0.025 mm/stroke Grinding Head Infeed, Continuous: 0.1 – 1 mm/min Max. Table Travel: 630 mm Table Speed, Infinitely Adjustable: 0.1 – 8 m/min (10 m/min) Max. Distance Between Workpiece Headstock and Grinding Spindle: 1,250 mm Grinding Spindle Stock Travel on Table: 520 mm Grinding Spindle Drive Approx.: 7.5 kW Total Drive Power Approx.: 17 kW - 380 V - 50 Hz Approx. Weight: 6,000 kg Accessories / Special Equipment: • Universal internal grinding spindle stock with program-controlled cycles for grinding cylindrical and conical bores with one or more diameters, external cylindrical grinding and narrow face grinding • Face grinding device, hydraulically swivelling, with automatic cycles for grinding one or several face surfaces, as well as step faces simultaneously • Electronic program control with large operating panel and ampere meter for both grinding spindles • Belt-driven grinding spindle with built-in grinding spindle and 5 separate, interchangeable grinding spindles with various belt pulleys in different diameters • Dressing device for both grinding spindles, large chuck guard at the workpiece spindle stock • HEIDENHAIN digital readout for cross adjustment of the workpiece headstock • Extensive accessories such as 4-jaw chuck, approx. 520 mm, 3-jaw chuck approx. 380 mm, 3-jaw chuck approx. 130 mm, belt pulleys, spindle sleeves, wheel flanges, foot switch • Separate hydraulic unit, attached control cabinet, coolant system with magnetic separator Condition: Good to very good! Suitable for all grinding tasks! Please click here for a video of the machine: Delivery: Ex stock, immediately available, FCA Metzingen Payment: Net – after receipt of invoice

Durum: ikinci el, WEBSTER & BENNETT EV 36” YÜKSEK HIZLI DİKEY TORNA MARKA: WEBSTER & BENNETT, İNGİLTERE ÜRETİMİ MODEL: EV 36” TABLA ÇAPI: 915 mm SAVRAMA: 1168 mm Hsdpfx Asxp Na Njnkjfk RAY ALTI YÜKSEKLİĞİ: 533 - 1016 mm HIZ: 13,5 - 300 dev/dak İLERLEME HIZI: 0,005-0,250 inç/dak ANA GÜÇ: 40 HP ARTI OLARAK: - YÜKSEK HIZLI TABLA - EV SERİSİ MAKİNE - YÜKSELTİLEBİLİR RAY - GÜVENLİK KORUMALARI - ÇEN TAKIMI - TAMAMEN ÇALIŞIR DURUMDA - İYİ KIZAKLAR

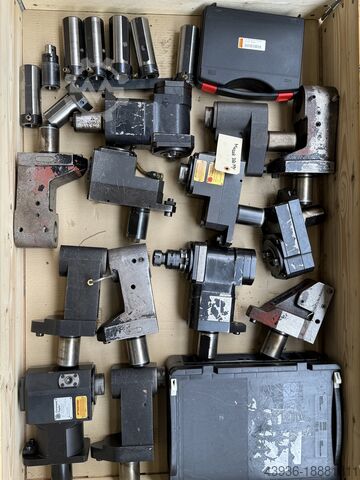

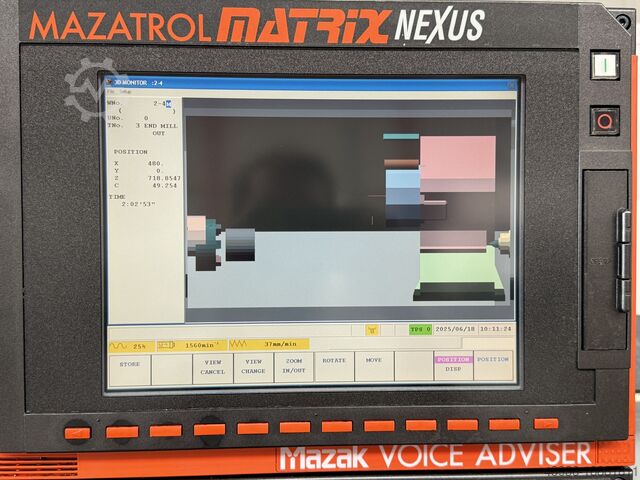

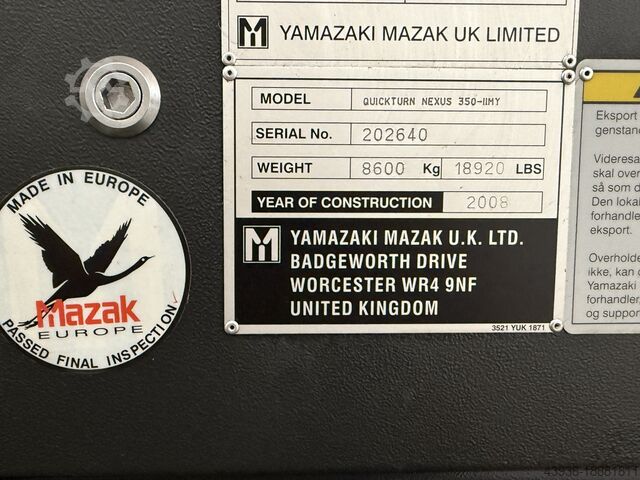

Durum: işlem için hazır (kullanılmış), Üretim yılı: 2008, maksimum mil hızı: 3.300 dev/dak, mil motoru gücü: 30.000 W, toplam ağırlık: 9.100 kg, kontrolör üreticisi: MAZATROL, kontrolör modeli: Mazatrol Matrix, eksen sayısı: 3, Bu 3 eksenli Mazak QT Nexus 350 II M 2008 yılında üretilmiştir. Mazatrol Matrix kontrol ünitesine, Ø 830 mm maksimum yatak üstü salınıma ve 1500 mm tornalama uzunluğuna sahiptir. İş mili, 30 kW güç ile 3300 rpm'ye kadar hızları destekler. Bir talaş konveyörü ve takım ön ayarlayıcı içerir. Yüksek kaliteli tornalama yetenekleri elde etmek istiyorsanız, satılık Mazak QT Nexus 350 II M makinemizi göz önünde bulundurun. Daha fazla bilgi için bize ulaşın. Ek ekipman • Talaş konveyörü • Araç ön ayarlayıcısı • Otomatik bloklu ayna • Takım tutucular Hfjdpfxox D I Rio Ankjk • Kullanıcı ve bakım kılavuzları Makine Faydaları Teknik Makine Faydalari • Maksimum dönüş çapı: Ø 420 mm • Maksimum dönüş uzunluğu: 1500 mm • Çubuk kapasitesi: Ø 102 mm • Mil burnu: asa 11” • Mandren tipi: otoblok Ø 315 mm • Takım boyutu: 25 × 25 mm / Ø 50 mm • Tahrik edilen alet motor gücü: 7,5 kw • Tahrikli takımların maksimum hızı: 4000 rpm Ekstra bilgi Makine hala güç altında

Durum: işlem için hazır (kullanılmış), Üretim yılı: 2012, Fonksiyonellik: tamamen fonksiyonel, 1 unit used CNC bed type milling machine with Heidenhain control system. Additionally, rotary table The rotary table has a diameter of 1200mm. Hodpfx Anowxxzqekofk €220,000 – In 2012/2013, the machine was retrofitted with a brand-new Rexroth rotary table, fully installed as a C axis. Swivelling milling head is present. A large selection of tools is included, as well as a 3D touch probe.

Durum: mükemmel (kullanılmış), Üretim yılı: 2006, x-axis travel: 750 mm y-axis travel: 210 mm z-axis travel: 1150 + 100 mm Control: Fanuc MSX-701III Maximum turning diameter: 660 mm Maximum turning length: 1498 mm Swing diameter over cross slide: 400 mm max. Spindle speed: 3000 rpm Tool magazine with 40 positions Turret with 10 stations Total power requirement: 90 kVA Machine weight: approx. 26.6 t Space requirements: approx. 5301 x 2997 x 2788 mm Capacity: Swing diameter over cross slide (Tool Spindle 1): 750 mm Swing diameter over cross slide (Turret 2): 400 mm Max. turning diameter (Tool Spindle 1): 660 mm Max. turning diameter (Turret 2): 275 mm Max. machined workpiece length: 1498 mm Max. bar stock: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120°, full B-axis indexed at 1° and braked at 0.0001° X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (sub spindle): 1610 mm Rapid traverse: (X1, Z1) 50 m/min / (Y, X2, Z2, SZ) 30 m/min Main and sub spindle: Infinitely variable spindle speeds (spindle 1 + 2): 30-3000 rpm C-axis (spindle 1 + 2): 0.001° Main spindle motor: 22/18.5 kW Sub spindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool stations: 10 Speed of driven tools: 6000 rpm Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-fold Tool diameter: 70/140 mm Tool length: 400 mm Tool weight: 8/10 kg Total power requirement: 90 kVA Overall dimensions (L x W x H): 5301 x 2997 x 2788 mm Machine weight: 26.6 t Equipment / Accessories: - Upper milling spindle (B-axis) as a full 4th axis, positioning accuracy 0.0001° - 40-position tool magazine - Lower 10-station turret, all positions driven - 2 x 3-jaw quick-change chucks KNCS-N 315/91 - KNOLL high-pressure coolant system, adjustable pressure 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter unit - Chip conveyor - Air blast system for main spindle chuck (control via M-code) - Air blast system for tool insert (control via M-code) - Coolant gun with accessories - Oil mist extraction - Direct measuring system X1, X2, Y axis - Bar loader interface - Double foot switch for both spindles - Island and pocket programming for MAPPS - High-speed fixed cycle for MAPPS - Program memory extension to 8 MB - Program restart - 3-stage signal lamp - Memory Card 512MB (CF Card) Hfjdpfxsy Spuuo Anksk - Measuring arm (picture) for tool measurement in the machine - Tool holders + box, reduction sleeves, driven tools - Set of clamping jaws - Set of collets

Durum: iyi (kullanılmış), Üretim yılı: 2011, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 6860 0007, Lütfen teklif fiyatınızı bize bildirin. Satış yalnızca İsviçre, Türkiye ve Büyük Britanya dahil olmak üzere Avrupa Birliği (AB) içinde Hfodpfx Anovbgiijksk ----- Teslimat kapsamı: Makine, yükleme sistemi, konveyör bant, iş parçası taşıyıcı Makine Teknik Verileri: Oval besleme bandı ve yükleme portalı dahil 5 eksenli taşlama merkezi HSK 63 ile 12 yollu takım değiştirici Maksimum. seyahat X ekseni 500 mm Maksimum. seyahat Y ekseni 650 mm Maksimum. seyahat Z ekseni 650 mm Masa ölçüsü 500 x 650 mm Kesme tespiti Nordmann giydirme mili Merkezi tesis tedariki yoluyla petrol tedariki

Durum: ikinci el, Teknik detaylar: Çap: 600 mm Geçiş: 250 mm Genişlik: 100 mm Hız: 500 rpm Makine ağırlığı yaklaşık: 175 kg Dış çeneli 3 çeneli ayna flanş montaj boyutu Ø 340 x 7mm; hatve dairesi Ø 288mm, Ø 31,5 x 20mm havşa ile Ø 21mm 3 delik Dönme aralığı min./maks.: Ø 200 / Ø 500mm Ekipman: 1 set iç çene 1x ayna anahtarı Hedpfx Aneu N Ez Dskjfk *

Durum: iyi (kullanılmış), Üretim yılı: 2009, Fonksiyonellik: tamamen fonksiyonel, CNC Lathe TRAUB TNX 65/42 Year of manufacture: 2009 Control: Traub TX 8i-s TECHNICAL DATA - Number of spindles: 2 - Number of axes: 12 - Number of turrets: 2 MAIN SPINDLE - Spindle nose: A2-6 - Spindle drive power: 24 kW - Spindle speed: 5,000 rpm - Max. bar diameter: 65 mm - Max. main spindle chuck diameter: 175 mm - Minimum C-axis resolution: 0.001° Hfedsyw H Szspfx Ankek SUB SPINDLE - Spindle nose: A2-5 - Spindle drive power: 28 kW - Spindle speed: 7,000 rpm - Max. bar diameter: 42 mm - Minimum C-axis resolution: 0.001° - Travel: 700 mm LEFT UPPER TURRET - Number of positions: 10 - Number of driven positions: 10 - X/Z travel: 175 / 650 mm - Y travel: +/- 40 mm - Tool type: VDI 30 - Driven tool speed: 6,000 rpm - Driven tool power: 5.5 kW RIGHT LOWER TURRET - Number of positions: 10 - Number of driven positions: 10 - X/Z travel: 175 / 650 mm - Y travel: +/- 40 mm - Tool type: VDI 30 - Driven tool speed: 6,000 rpm - Driven tool power: 5.5 kW ELECTRICAL SUPPLY - Supply voltage: 400 V - Total connected load: 95 kW WEIGHT AND DIMENSIONS - Required floor space: 5,450 x 2,318 mm - Machine height: 2,258 mm - Machine weight: 10,000 kg New spindle as of 04/26 EQUIPMENT - 3-color status lamp - Coolant tank: RESY * with high-pressure pump * with paper filter - Chip conveyor - Parts removal system - Parts conveyor belt

Durum: iyi (kullanılmış), Üretim yılı: 1989, parça çapı 1500MM maksimum bağlantı 914MM 15 ton poids Hfsdofl Aaqspfx Anksk
