Profil işleme merkezi

Mecal MC 309 Nike TM DPM

Machining centre with 4 CNC-controlled axes for processing profiles made of aluminium, PVC and steel

Comparable to Emmegi, Elumatec, Fom, Pertici, etc.

Machine frame: sturdy welded construction, stress-relieved, with hardened linear guides
Protective enclosure over the entire machining length
Pneumatically operated safety door

Spindle:
3.8/4.6 kW S1/S6
3.0/3.7 Nm S1/S6
Max. 18,000 rpm, air-cooled
With ISO 30 tool holder
With minimum quantity spray lubrication for tools, including fill level monitoring

Tool magazine:
5 positions, left side in the machine bed, for accommodating drilling, milling, tapping tools, angle heads, disk cutters up to Ø 150 mm

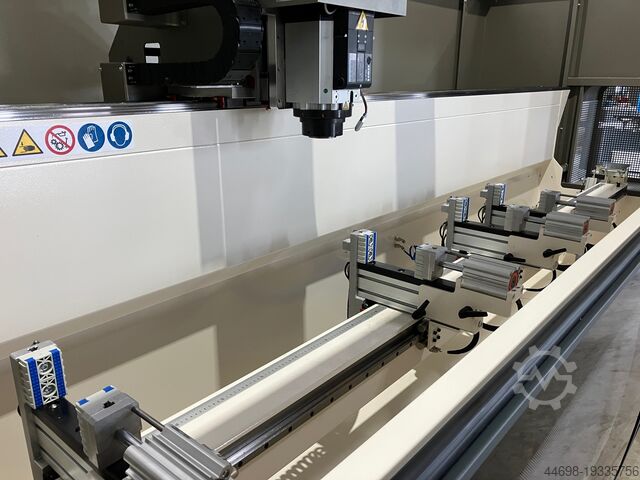

Workpiece clamping:
4 pneumatic profile clamps, clamping range up to 250 mm
Automatic positioning via device on the Z-axis

Workpiece positioning:
One pneumatic reference stop each on the left and right of the A-axis

Travel distances:
X-axis: 3,500 mm
Y-axis: 370 mm
Z-axis: 348 mm
A-axis: ±90°
Travel speeds:
X-axis: 70 m/min
Y-axis: 30 m/min
Z-axis: 30 m/min
A-axis: 60°/sec

Maximum working areas:
X-axis: 3,270 mm
Y-axis: 250 mm at 0°, 116 mm at ±90° A-axis
Z-axis: 170 mm at 0°, 200 mm at ±90° A-axis

Operating software:
CAD/CAM in 3D technology (option, included!)
Programming system in accordance with ISO standards

Functionality:
Linear and circular interpolation on two axes (X-Y)
Three-sided machining by swivelling the A-axis 90°-0°-90°
End-face machining using disc cutter

Operating modes:
Single profile bar over the full machining length
Two profile bars with divided machining length

Lubrication system:
Automatically controlled central lubrication for all axes, ball screw spindles and guides, with fill level monitoring

Operation:
Hjdpfxjwrcwpj Ag Nong
18.5" touchscreen
Mouse + keyboard

Connection data:
Electric: 400V/50Hz (3-phase + N + PE), 16 A,
Supplied without power cable
Pneumatics: pressure 6 - 8 bar

Dimensions and weight:
Length: 5,800 mm
Width: 1,640 mm
Height: 2,000 mm
Weight: 2,000 kg

Includes:
Graphical programming software CM3D/CAD3D
Barcode reader
Additional network connection including remote maintenance/diagnostics for 1 year
