Yüksek raflı depo palet raf sistemi

META Rack / Regallänge: 20,49 lfm St.:4.000 x 1.100 mm / Tr.: 3.310 mm

Technical data for the pallet racking system:
Racking system: META Rack

Technical data for installation:
Number of rack rows: 01 pc
Length per rack row: 20,490 mm
Number of bays per rack row: 06 pcs
Number of levels plus ground level: 02 pcs

Scope of delivery includes:

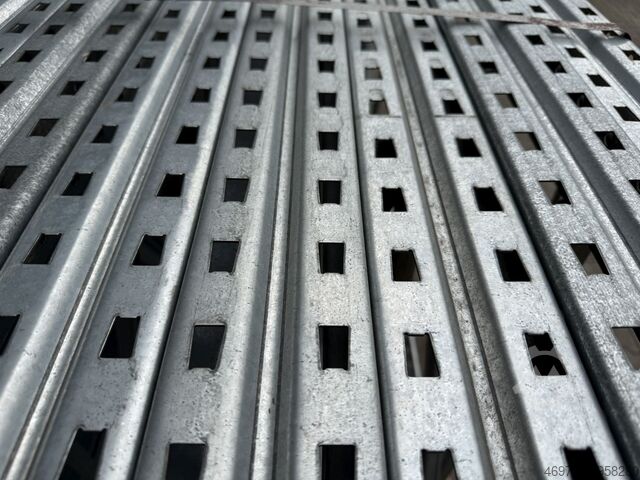

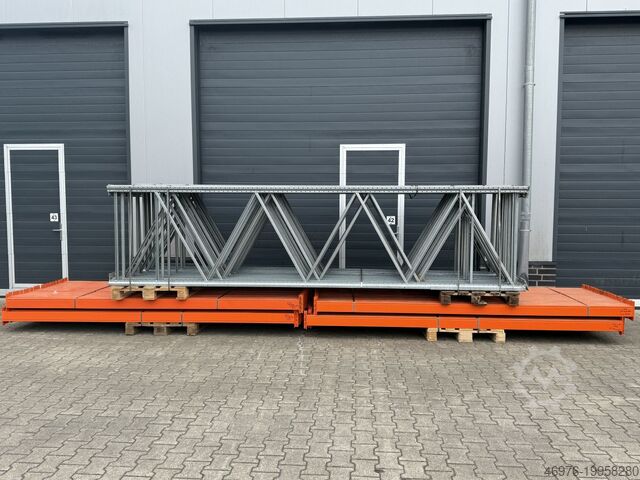

07x pallet rack uprights, used
Material finish: sendzimir galvanized
Profile dimensions: P 90 x 65 x 1.50 mm
Upright type: PN-15
Including horizontal and diagonal braces, base plates
The uprights are pre-assembled (bolted truss)
Height: 4,500 mm
Depth: 1,100 mm

24x pallet rack beams, used
Material finish: orange
Box profile: 110 x 50 mm
Beam type: 110|55
Connector: 4 HK (hooks)
Clear span: 3,310 mm

07x upright protectors, used
Material finish: hot-dip galvanized
Total height: approx. 970 mm
Total width: approx. 98 mm
Internal width: approx. 92 mm
Rcodpfx Aexbcuksqqeh
Total depth: approx. 40 mm
Material thickness: approx. 3.00 mm
Bore diameter: approx. 11 mm
Number of holes: 04 pcs

48x locking pins, used
Material finish: sendzimir galvanized
For securing the load beams against unintentional lifting

28x wedge anchors, new
Manufacturer: Hilti
Model designation: HST2 M12x105/10
Execution: Carbon steel, galvanized
Approved for: cracked concrete

14x shim plates, used
Design: fully galvanized
For leveling rack uprights installed on uneven floors

01x load capacity sign
With specifications of bay and shelf load capacities, manufacturer and order number
Dimensions: 420 x 297 x 3 mm

Your contacts at our company:

Mr. Andre Evering
Mr. Mario Klöver
Mr. Falk Deutsch

General information about the item:
This item is offered for collection only. Any additional transport or shipping of this item is subject to extra charges, which can be requested separately according to delivery location and scope.
