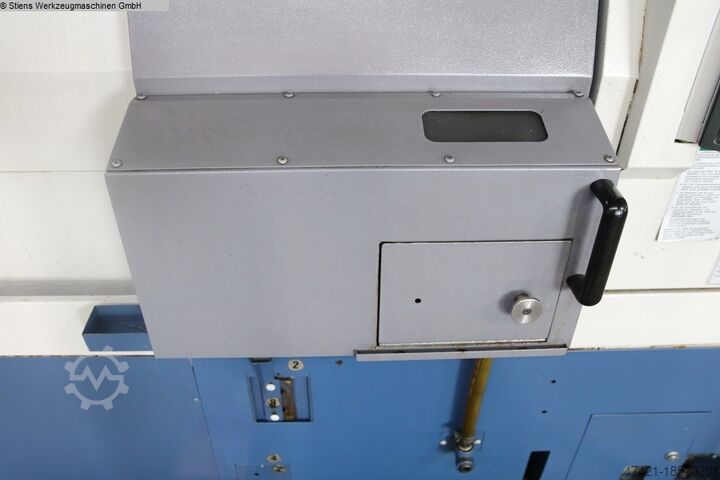

CNC torna ve freze merkezi

MORI SEIKI SL 204 MC

MORI SEIKI - SL 204 MC

Offer Details
Stock number: 1039-9201
Machine type: CNC Turning and Milling Center
Manufacturer: MORI SEIKI
Model: SL 204 MC
Year of manufacture: 2002
Control: MSG 805 MAPPS
Location: D-59302 Oelde, Germany
Country of origin: Japan
Delivery time: by agreement
Freight terms: ex location
Additional information:

CNC Turning and Milling Center
MORI SEIKI - SL 204 MC

WE OFFER:

- Workshop-tested machines
- Free loading onto truck
- NO auction fees
- Possible delivery (at extra cost)
- Unloading and commissioning (at extra cost)

Technical Data
Turning diameter: 390 mm
Turning length: 507 mm
Control: MSG 805 MAPPS
Max. turning diameter: 390 mm
Swing over bed: 680 mm
Swing over cross slide: 510 mm
Distance between centers: 618 mm

Main Spindle:
Speed range – main spindle: 45 – 4,500 rpm
Drive power – main spindle: 11 / 7.5 kW
Spindle bearing diameter: 110 mm
Spindle bore: 73 mm
Max. bar capacity: 51 mm
Spindle nose: JIS A2-6
Chuck diameter: 210 mm
C-axis: 0.001°

Travel:
X-axis: 235 (195+40) mm
Z-axis: 520 mm

Tool Turret:
Number of tool stations: 12 positions
Number of driven tool stations: 12 positions
Speed range – driven tool stations: max. 3,000 rpm
Drive power driven tool stations: 5.9 / 4.5 kW
Square tool shank height: 25 mm
Drill shank diameter: max. 50 mm
Turret indexing time: 0.2 sec.

Tailstock:
Tailstock travel: 490 mm
Quill diameter: 85 mm
Tailstock taper: MT 4
Quill stroke: 120 mm

Feeds:
Rapid traverse: X 18 / Z 24 m/min
Incremental feed rate: 0 – 1,260 mm/min
Total power requirement: 30.1 kW
Machine weight (approx.): 4.5 t
Space requirement (approx.): 5.0 x 2.5 x 2.5 m

Accessories
Documentation
Chip conveyor
Coolant system
Tailstock
Hydraulic unit
Three-jaw chuck: Kitagawa BB208
Tool turret
Live tooling drive
C-axis
Tool measurement
Parts catcher
Driven tools: 10x
Bjdpfx Adoxt Ervj Nodi
Various tool holders
Set of clamping jaws: 6x

Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
