Y ve B eksenli torna-freze merkezi, 100 saatten az kullanılmış

OKUMA MULTUS U 3000 1SW 1500 650

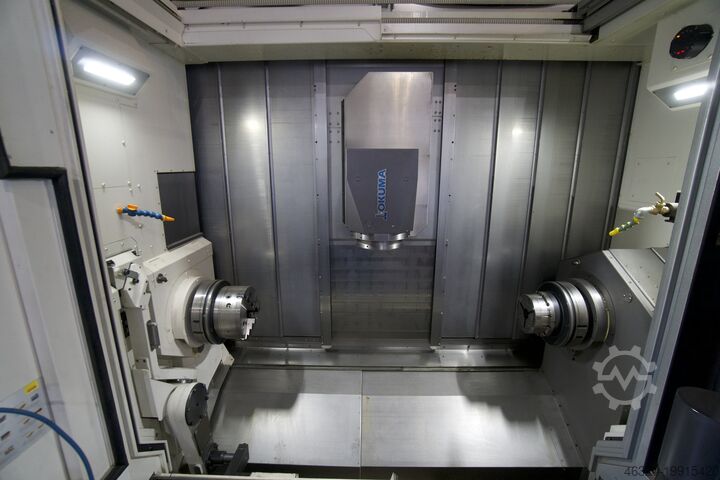

CNC turn-mill center with sub-spindle, Y and B axis
Only 99 spindle hours

Manufacturer: OKUMA
Model: MULTUS U3000 1SW 1500
Year of manufacture: 12/2022 - Commissioned in 2023
Control: OKUMA OSP-P3000SA
Operating hours, approx.: Spindle running time: 99 h, NC runtime: 278 h (as of July 2025)
Tool system: Capto C6

TECHNICAL DATA:
Turning diameter: 650 mm
Turning length: approx. 1,500 mm
Main spindle speed: 5,000 rpm
Motor: 22 kW, 427 Nm
Number of tool stations: 80

Spindle nose KK size 6, front spindle bearing Ø 120 mm, spindle bore Ø 80 mm, 2-step speed range, range shifting at full speed

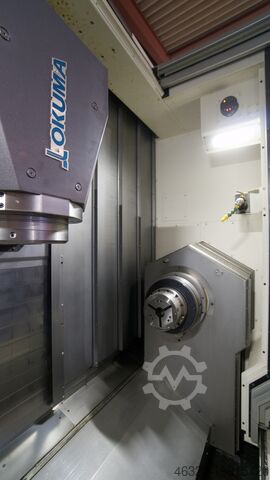

Sub-spindle: front spindle bearing Ø 120 mm, spindle bore Ø 80 mm, 2-step speed range, range shifting at full speed, available on W axis, speed synchronization, programmable axial pressure for secure face location, jaw cleaning with air

C axis 360°, positioning in 0.001°
Y axis stroke +125 / -125 = 250 mm
B axis 240°, positioning in 0.001°
Tool spindle (Okuma motor spindle) 22 kW / 120 Nm / 12,000 rpm

SPECIAL EQUIPMENT:

Enlarged main spindle KK size 8, front bearing Ø 140 mm, bore Ø 91 mm
Hollow clamping cylinder Ø 86 mm SMW VNK T2 200-86 with bore Ø 86 mm
Cylinder flange
Full-stroke cylinder SMW SIN-S 175
Tool system Capto C6 for H1 turret
External and through-spindle air supply for turning holders and rotating tools (switchable air/emulsion)

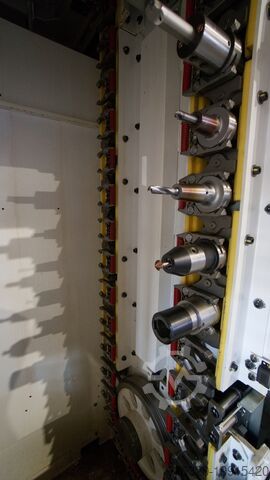

Tool magazine with 80 positions
Coolant flushing via M-function, main and sub-spindle
Hinged belt chip conveyor
Drum-type rotary filter TMF 300
Supply pump TC 160/740 Pressure: 8 bar, TH428A690 Pressure: 20 bar
Bar feeder interface
Programmable workpiece catcher
Robot loader interface
Electric door automation
Automatic shutdown
In-process measurement, Renishaw probe
Measurement on Y-axis
Automatic zero point shift on Z and C axis
Multifunction tool software for radially mounted indexable inserts
Control extension kit KIT One-Touch IGF-N-D:
Advanced One-touch conversational programming, automatic job plan creation
Thread cutting in circular interpolation
Programmable tool life, call of sister tools by engagement time, quantity, offset addition and wear

EQUIPMENT:
Sub-spindle, turning length approx. 1,500 mm and H1 turret
Collision avoidance system CAS
19” color LCD TFT with multi-touch screen
Tool monitoring system
Tool measuring system
Handwheel
Machine management MacMan
Parts program storage 2GB
2x USB 2.0
Ethernet
Remote diagnosis preparation (service costs may apply)
Harmonic spindle speed oscillation through periodic speed variation
Tool height correction in Y for turning tools
Circular thread milling X/Z/Y/B (helical interpolation) including eccentric milling X/Y/C
Hi-Cut Pro high-speed control for rotating tools
10 workpiece zero points
Coordinate transformation (translation, rotation)
Electric spindle orientation +/- 0.1°

New price: over 530,000 EUR

This used machine can be inspected under production conditions. All information is provided without guarantee – sale under exclusion of any warranties or guarantees. Subject to prior sale.
