RAPID DGL 200 E

Working length: 3,700 mm, 5,100 mm, 6,100 mm
Working height: 160 mm
Tiltable: Yes
Control: Yes

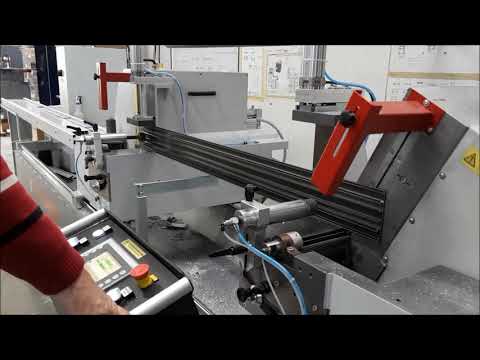

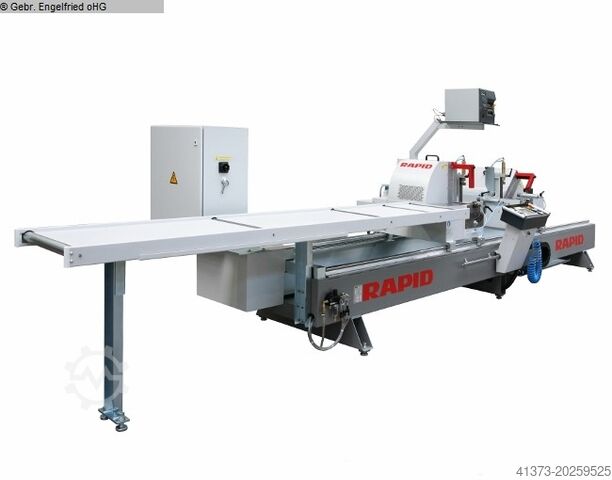

Rapid DGL 200 E Double Mitre Saw
-----
With saw blade diameter 500 mm, electronic length and angle adjustment
(45° and 90°, intermediate angles can be set manually using the scale)

Precise Cutting of Profiles
-----
For precise and burr-free cutting of aluminum, plastic, and wooden profiles.

System features:
-----
- Automatic length adjustment
- Manual or electro-pneumatic angle adjustment 45°–90°
- Saw blade Ø 500 mm
- Extremely robust machine bed
Dodpsxmk Agofx Abpowc
- Complete enclosure of guide bushings around the guide shafts of the saw head
- Hardened guide shafts
- Swivel axis supported on both sides

Application examples:
-----
Window, door, façade, conservatory, insect screen profiles,
partition wall systems, interior sliding door elements

- PVC, PVC-Aluminum
- Aluminum
- Wood, Wood-Aluminum

Perfect dimensional and angular accuracy guaranteed.
-----
With the DGL200E double mitre saw, we offer you a reliable quality product from our range of precision double mitre saws, enabling you to supply your customers with flawless, high-quality construction elements. Cutting lengths can be loaded into the control unit of this double-head mitre saw via network or USB connection or entered manually via the keypad. Specialized software solutions allow automatic positioning for cross cuts, oversized or undersized lengths, enabling processing of lengths beyond the machine's standard cutting range. The optimization program with remnant processing helps minimize offcuts, reduce costs, and sustainably lower the demand for valuable materials such as aluminum, plastic, or wood. A thermal label printer with dispensing unit, ergonomically located directly below the operator terminal, allows efficient labeling of finished parts. Good and controlled offcut disposal for the base machine can be optionally supplemented with a conveyor belt system.

Technical Data
-----
Drive: 2 x 2.2 kW three-phase motors, 400 Volt
Swivel range: manually 45° to 90° (up to 135° optional)
Saw blade: 500 mm diameter
Cutting lengths: 3,700 mm, 5,100 mm, 6,100 mm
Profile clamping: 2 horizontal clamping cylinders, 2 vertical clamping cylinders (optional)
Length adjustment: electronic
Air pressure: 7 bar
Dimensions: 5250/1420/1900 mm
Weight: 1,260 kg

Control
-----
PCE 6000

Positioning and cutting control PCE 6000 based on the Windows 10 IoT operating system for modern window production on RAPID double mitre saws.
128 GB SSD, 8 GB RAM, approx. 10 GB database for cutting programs and profile data.

Standard Equipment:

- Single cut
- Program cut
- 2 USB ports
- TFT screen
- Graphical display of profile cross-sections
- Backlit display
- Control display integrated into dual-hand control panel

Optional Extras (subject to surcharge):

- Remnant optimization
- Software stop for oversized lengths
- Software stop for short parts
- Cross-cut function
- Profile height measuring device
- Label printer (standard label...
