Masanın altında doğrama testeresi

SALVAMAC Legend 400

Maximum cutting width: 250 mm
Maximum cutting height: 80 mm
Saw blade diameter: 400 mm
Motor power: 3.0 kW
Speed: 2800 rpm
Compressed air connection: 6-8 bar
Working height: 900 ±20 mm
Dimensions (LxWxH): 530 x 869 x 1217 mm

SALVAMAC Legend 400
High-speed semi-automatic cross-cut saw

Maximum cutting range: 220x80 / 250x50 mm.
(When cutting stacked boards, please note: Rear fence height is 100 mm)

The frame is made entirely of robust, thick-walled steel, fully painted and reinforced. The solid floor mounting system is equipped with flanged steel feet for secure installation.

The two-hand control system is ergonomically positioned for comfortable and efficient operation.

Saw motor power: 3.0 kW

The cutting speed is adjustable via a pneumatic regulator for precise settings. Additionally, the system features a shock-absorbing mechanism to minimize vibrations and enhance work safety.

TCT circular saw blade, diameter 400 mm, Z=96

The upper pressure hood is equipped with an electro-pneumatic control for precise operation. The hood movement system uses innovative ball bearings with double dust protection and an automatic lubrication system to ensure smooth functionality.

The electrical system complies with CE standards. CE models are standardly equipped with at least 1-meter-long infeed and outfeed tables (unpowered roller or flat table) to optimize workflow and meet safety requirements.

Technical Data:
-----
Maximum cutting area: 220x80 / 250x50 mm
Motor power (saw blade): 3.0 kW
Saw blade diameter: 400 mm
Blade type: TCT Z=96
Blade rotational speed: 2800 rpm
Air consumption per cycle: 5 Nl
Extraction port: 1 x 120 mm / 1 x 100 mm
Air pressure: 6 - 8 bar
Voltage: 400V / 50 Hz, 3-phase
Working table height: 900 mm ± 20 mm
Color: RAL 7035
-----
Total ex works price: on request!
-----
Options such as:

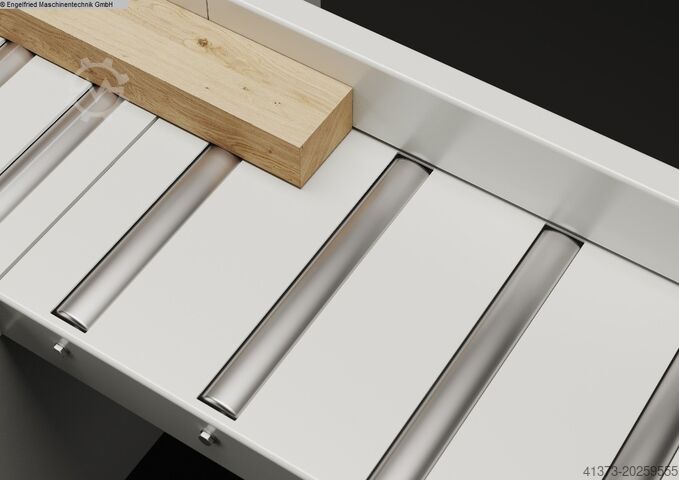

- Infeed/outfeed tables with unpowered rollers/flat table
- Mechanical or pneumatic stops
- Electronic length stop / Salvastop pusher (Combo Series)
- Movable front guard
and more upon request!
-----
Fgjdpfxsxmk Ddo Ac Hoh
(All technical data according to manufacturer, subject to change or error!)
