Pallet racking

Stow Pal Rack NS/ 17,18 lfm/ Ständer: 9.650 x 800 mm/ Traverse: 2.700 mm

Shelf upright: 9,650 mm x 800 mm / Clear width: 2,700 mm

Technical data of the pallet racking system:
Racking system: Stow
Type: Pal Rack NS

Technical data for installation:
Number of rack rows: 01 pcs.
Length per rack row: approx. 17.180 mm
Number of bays / rack row: 06 pcs. á 2.700 mm
Number of levels plus floor level: 05 pcs.

Included in delivery:

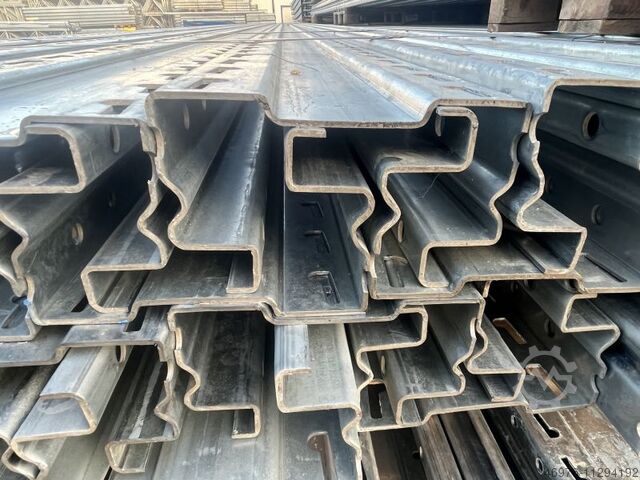

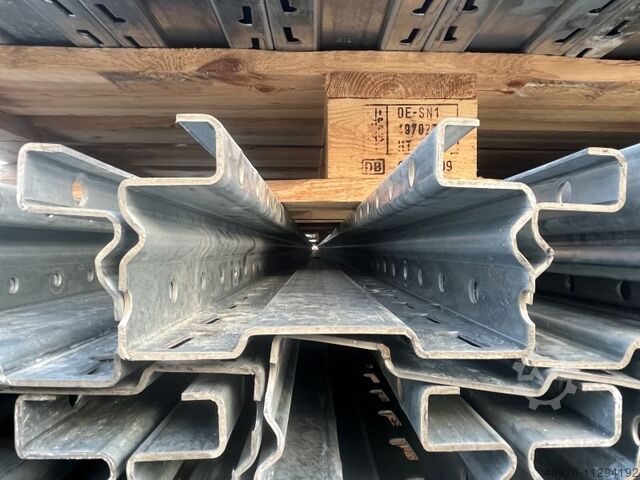

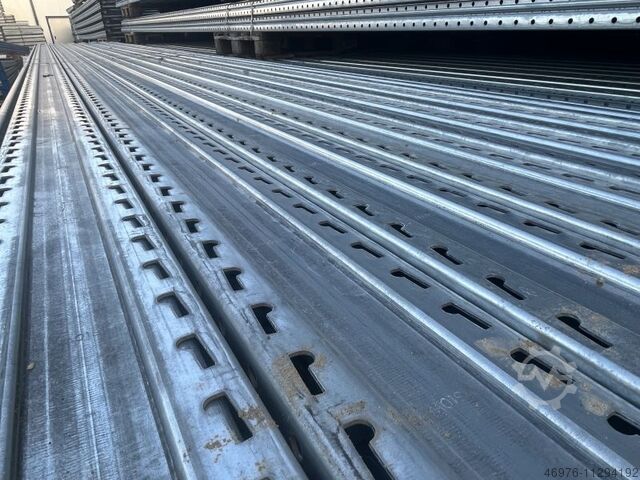

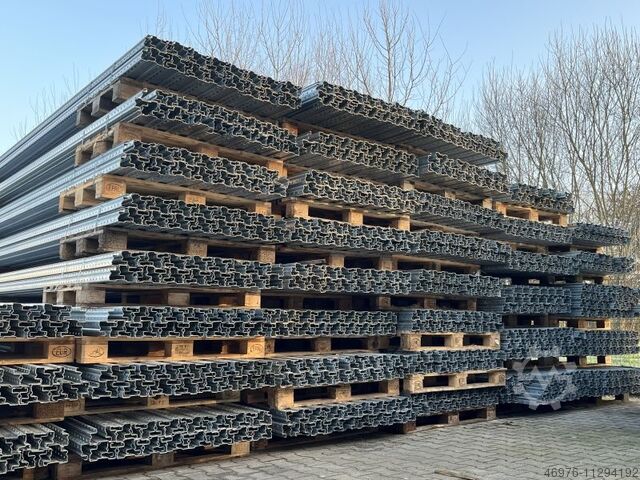

07x pallet rack uprights, used
material color frame: sendz. galvanized
material color framework: blue
profile dim.: 140 x 80 x 2.25 mm
Incl. cross and diagonal braces,
Base plates
The stands are pre-assembled
( screwed truss )
9.650 mm high
800 mm deep

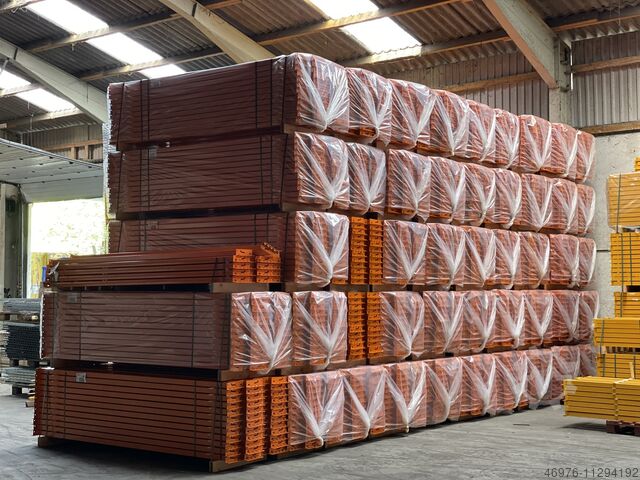

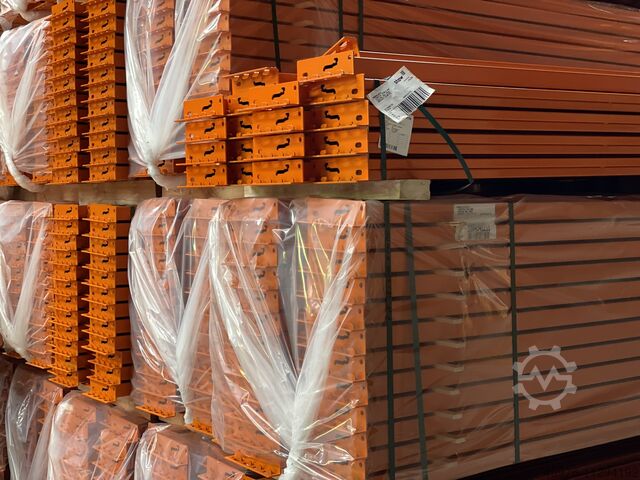

60x pallet rack truss, new
Material color: Ral 2004 orange
box profile: 130 x 50 mm
type of cross beam: PNB 0413 S355MC

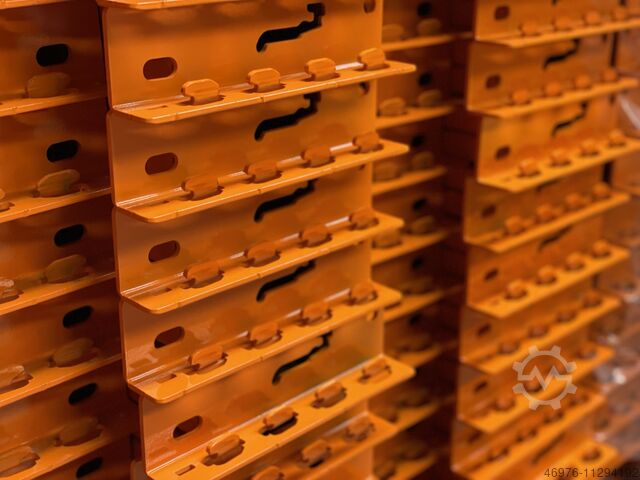

agraffe: 4 HK (hooks)
clear width: 2.700 mm
max. load per truss pair
3.000 kg with evenly distributed load

120x safety pins, used
execution: compl. galvanized
To secure the longitudinal beams
against unintentional lifting out
Bjdpfx Aljm Eztuoyeww

28x bolt anchor, new
Manufacturer: Hilti
Type designation: HST2 M12x105/10
Design: carbon steel, galvanized
Approved for: cracked concrete

14x shims, used
execution: complete galvanized
for levelling of the racks which are
are placed on uneven ground

01x load plates
with data of field and shelf loads,
manufacturer and commission number
Dimension: 297 x 210 x 2 mm
