Complete PVC Line – URBAN AKS 3900 Double-Head Automatic Welder + URBAN SV 305 Automatic Corner Cleaner – Year 2006

Professional URBAN line consisting of the AKS 3900 double-head automatic welding machine and the SV 305 automatic corner cleaner, ideal for the production of PVC windows and doors.

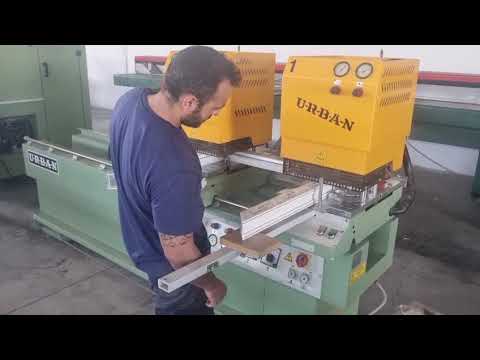

--> Double-Head Automatic Welder – URBAN AKS 3900

Year: 2006

The URBAN AKS 3900 is a professional double-head automatic welding machine designed for high-precision welding of PVC profiles with angular processing from 30° to 180°.

The machine ensures precise welds with bead limitation and excellent operational reliability. Thanks to the automatic approach of the welding heads and fully adjustable processing parameters, it enables rapid and efficient production cycles.

Main features

- 2 automatic welding heads
- Angular welding from 30° to 180°
- Automatic head positioning system
- Electronic temperature adjustment
- Welding time and pressure control
- Two-hand operation with integrated safety systems
- Adjustable profile supports
- Independent thermostats
- Monitored heating elements
- CE-compliant safety devices
- User manual available

Processing capacity

- Profile height: 30–130 mm
- Maximum profile width: 140 mm
- Usable welding length: 440–2500 mm
- Production capacity: approx. 200 welds / 8 hours

Technical data

- Installed power: 3 kW
- Power supply: 230/400 V – 50/60 Hz
- Operating pressure: 8 bar
- Air consumption: approx. 36 l/cycle
- Weight: approx. 550 kg
- Noise level: 67 dB(A)

--> Automatic Corner Cleaner for PVC – URBAN SV 305

Ijdsy R Tvyjpfx An Ioig
Year: 2006

URBAN SV 305 Automatic PVC Corner Cleaner

Automatic machine for cleaning and finishing welding seams on PVC windows and profile systems.

The URBAN SV 305 enables complete processing of welded profiles, including surface cleaning, outer corner finishing, interior folds, and gasket grooves, even on acrylic laminated profiles.

Thanks to the automatic profile recognition system and intuitive SPS control, the machine ensures high precision and easy operation.

Main operations

- Trimming of upper and lower welding beads
- External corner milling with carbide cutters
- Cleaning of upper and lower inside folds
- Processing of internal and external gaskets
- Drilling of gasket grooves
- Bevelled chamfers

Equipment

- Tool tower for 3 tool units
- Cleaning knives
- Adjustable milling unit
- Upper and lower drilling units
- Adjustable pneumatic system
- SPS operator panel
- Soft start and electronic motor brake
- User manual available

Processing capacity

- Profile height: 30–150 mm
- Profile width: 40–145 mm
- Minimum window size: approx. 210 mm

Technical data

- Spindle/cutter speed: 2800 rpm
- Installed power: 1.7 / 2 kW
- Power supply: 230/400 V – 50/60 Hz
- Operating pressure: 7–8 bar
- Machine weight: approx. 530–550 kg
- Noise level: 78 dB(A)

Line is operational and ideal for manufacturers of PVC windows and doors looking for a complete, reliable, and ready-to-use solution.
