L + Z torna tezgahı, kılavuz mili ve çekme mili torna

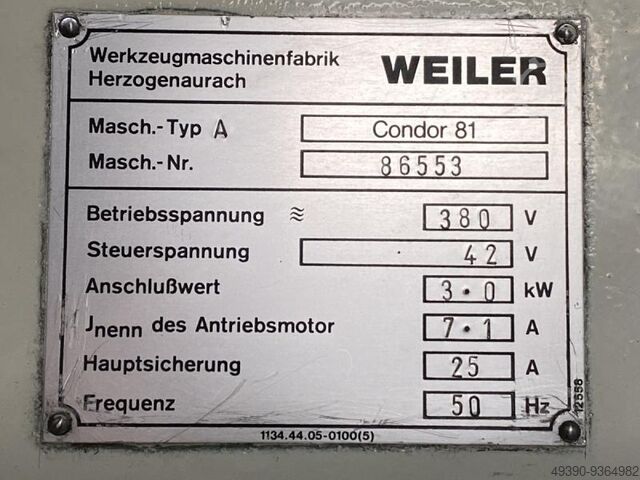

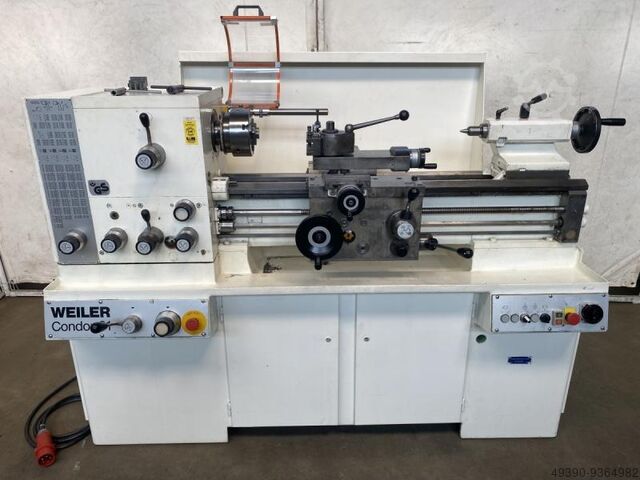

WEILER Condor 81 A

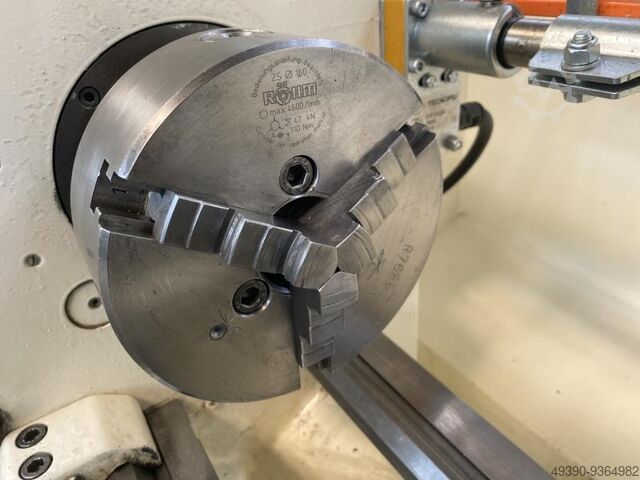

Üretim yılı: 1986, Durumu: kullanılmış, Weiler Primus torna, yapım yılı yaklaşık 1986, üç çeneli ayna, Multifix. Makine iyi durumda, düzenleme ile güç altında gösterime hazır. Kedpon Ard Djfx Adpslp

Durumu: mükemmel (kullanılmış), Üretim yılı: 1992, Fonksiyonellik: tamamen fonksiyonel, Weiler Praktikant 160 B Lead and Feed Screw Lathe with 3-Axis Digital Readout from K&C, sourced from a vocational school Technical Data: >> Year of manufacture: 1992 / Machine No.: 92 160 3260 >> Centre height: 160 mm >> Centre distance: 650 mm >> Spindle speeds: from 24 to 2,500 rpm >> Spindle bore: 40 mm >> Short taper spindle nose to DIN 55027, Size 5 with bayonet lock >> Tailstock: Morse taper 3 >> Feeds: from 0.02 to 0.63 mm/rev >> Threads: Metric, Imperial, Module, and Diametral Pitch possible >> Metric thread pitches: from 0.25 to 8 mm >> Weight: approx. 680 kg >> Spindle brake switchable >> Length: 1.6 m, Height: 1.25 m, Depth: 0.7 m Accessories and Equipment: >> 3-axis digital readout by K&C with operating manual Functions: Switch mm/inch, coordinate selection ABS/INC, value halving, reference mark, 200-tool programming, taper calculation, radius/diameter, quick zero, count direction switch >> Collet chuck system with new collets from 3 to 26 mm in 1 mm steps >> 160 mm 3-jaw chuck (Kelistangen) with 1 set of jaws >> Quick-change toolpost with 4 tool holders >> Bed stop Klsdpfxox Eb A Ue Adpjp >> Electronic spindle guard >> Rear panel >> Coolant system >> Operating manual, spare parts diagram About the machine: Offered here is a Weiler Praktikant 160 B lead and feed screw lathe, built in toolmaker's precision in 1992, and in very good condition. The machine is, of course, fully functional. All carriages operate very smoothly and evenly. Even at high spindle speeds, the Weiler runs quietly. This newer generation of Weiler lathes is user-friendly and allows the production of ground-like surface finishes. Take the opportunity to view the machine under power on site and convince yourself of its condition.
