Dört yan planya

WINTER TIMBERMAX 5-23-MS

Dimensions (L/W/H): 3760 x 1730 x 1750 mm
Weight: 4,500 kg
Total power requirement: 37.6 kW

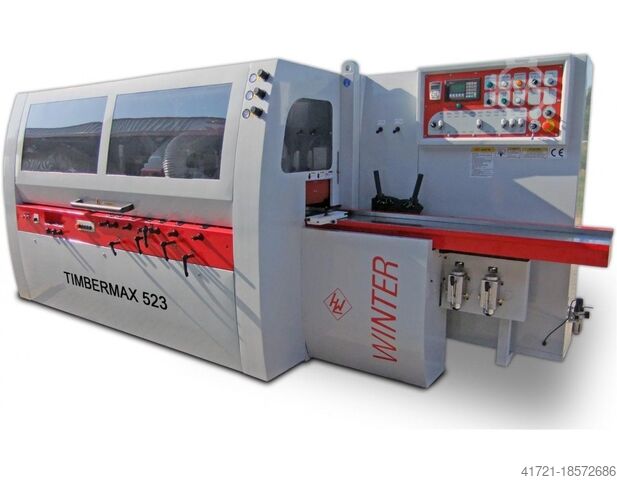

Four-sided planer – Moulder TIMBERMAX 5-23-MS with mobile spindle

- Planing width: 20 – 230 mm
- Planing height: 8 – 160 mm
- 5 spindles
- Spindle Ø 40 mm
- Spindle speed: 6,000 rpm
- Infinitely variable feed speed: 5 – 30 m/min
- Bottom surfacing shaft, max. tool Ø 145 mm
- Right vertical shaft, max. tool Ø 200 mm
- Left vertical shaft, max. tool Ø 200 mm
- Top thicknessing shaft, max. tool Ø 200 mm
- Second bottom shaft, max. tool Ø 200 mm

Spindle sequence:
1. Bottom: 7.5 kW
Gbjdev A Hprjpfx Adusg
2. Right vertical: 5.5 kW
3. Left vertical: 5.5 kW (mobile spindle for processing raw material of varying widths)
4. Top: 7.5 kW
5. Bottom: 7.5 kW

- Feed motor: 3.0 kW
- Motorised height adjustment: 1.1 kW
- Total power: 37.6 kW
- Infeed table length: 2,000 mm
- Set of feed rollers: Ø140 x 35 x 50 mm, Ø140 x 35 x 20 mm, Ø140 x 35 x 16 mm

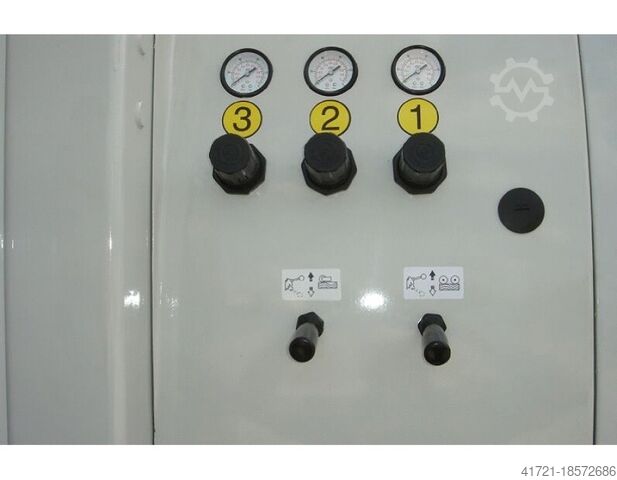

- Compressed air connection: max. 6 bar
- Extraction ports: 5 x 150 mm
- Dimensions: L=3760, W=1730, H=1750 mm
- Weight: 4,500 kg

INCLUDES:
- Hard-chrome plated tables
- CE standard, TÜV Rheinland approved

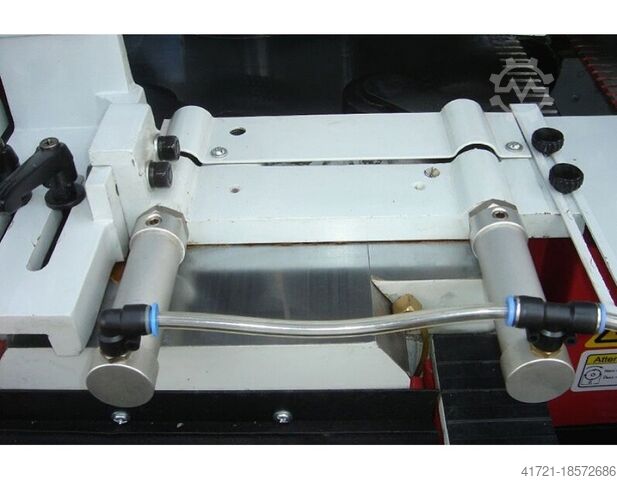

- Pneumatic side pressure before left spindle
- Lubrication pump
- Pneumatic pressure for feed rollers
- Feed system with cardan drive
- 3 driven glide rollers in the table
