Kullanılmış Vollmer Qxd 250 satın al (3)

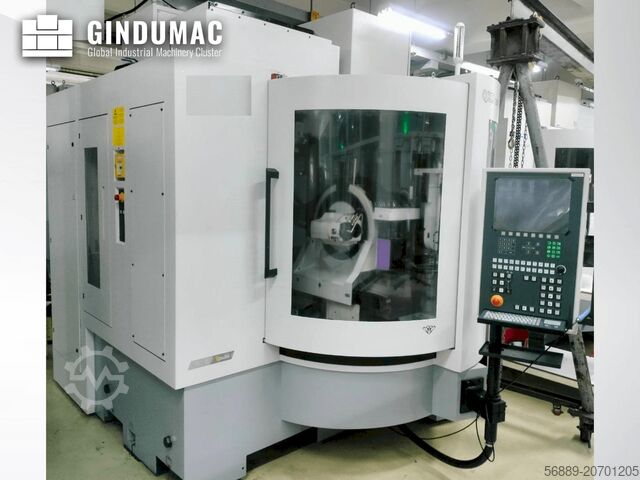

Üretim yılı: 2017, Durumu: kullanılmış, Wire EDM machine for complete machining of rotationally symmetric workpieces with cutting edges made from ultra-hard cutting materials. The workpieces are held in a suspended (vertically hanging) position. Accessories: - Full enclosure Gksdjxy Ry Sopfx Aaxef - External PC including CAD/CAM and ExLevel Pro software - Software package with additional features for metalworking tools - Disc changer for up to 6 EDM or grinding wheels - Adaptor for A-axis on HSK 63-A-E - Coolant system with pump and cooling unit - Automatic central lubrication - Automatic fire extinguishing system - Automatic closure flap - Glass scales on X, Y & Z linear axes - N280 mechanical mist separator - 3 grinding wheel change elements - HSK63A test mandrel Optional: also available with workpiece magazine! Workpiece outer diameter: max. 320 mm Workpiece length: max. 250 mm Tool outer diameter: max. 200 mm Bore diameter: max. 60 mm Travel X1: 520 mm Travel Y1: 970 mm Travel Z1: 420 mm A1 axis rotation range: 360° B1 axis rotation range: +/-20° E1 axis rotation range: 210° Grinding spindle speed: infinitely variable 0-4500 rpm (torque 6 Nm) Connected load: approx. 8.7 kVA / 6.8 kW Weight: approx. 7100 kg Dimensions (W x D x H): 4012 x 2889 x 2611 mm Colour: RAL 7047 telegrey 4 / RAL 7045 telegrey 1

Üretim yılı: 2017, Durumu: işlem için hazır (kullanılmış), Genel Bilgiler Ölçüler genişlik 2280 mm Ölçüler derinlik 3350 mm Ölçüler yükseklik 2500 mm Godpfx Ajx D Eazsaxjkf Makine ağırlığı 7200 kg Ana Tahrik Eksensayısı 6 Hareket X Ekseni Hareketi 510 mm Y Ekseni Hareketi 970 mm Z Ekseni Hareketi 420 mm V Ekseni Hareketi 210’ A Ekseni Hareketi HSK 63 döndürme açısı 360 derece B Ekseni Hareketi +/- 20 derece Bu 6 eksenli VOLLMER QXD 250 taşlama makinesi 2017 yılında üretilmiştir. Güçlü bir 3 Faz 380 Volt, 50 Hz, 8.7 KVA enerji beslemesinin yanı sıra, 310 litrelik yüksek kapasiteli bir soğutma tankına sahiptir. 7.200 kg makine ağırlığı ve kapsamlı eksen hareketleri ile, A-Ekseni'nde 360 derece döndürme açısı ve B-Ekseni'nde +/-20 derece imkanı sunmaktadır. Bu VOLLMER QXD 250 taşlama makinesini satın alma fırsatını değerlendirin. Bu makine hakkında daha fazla bilgi almak için bizimle iletişime geçin. Uygulama Türleri EDM

Üretim yılı: 2015, Durumu: kullanılmış, Disc erosion machine for complete machining of rotationally symmetric workpieces with cutting edges made of ultra-hard cutting materials. The workpieces are clamped vertically suspended (cantilevered). Equipment: - Full enclosure - Software for woodworking tools - Software for P-System peeling cutters - Software for scoring saw / radius cutters - Software for path programming 360° - Software for peeling cutters 360° - Workpiece magazine N250 (pallet magazine for up to 28 workpieces) - Disc changer for up to 6 eroding/grinding discs Gkodpfxjxy Ryro Aaxjf - Adaptor for A-axis with HSK 63-F - Coolant system with pump and cooling unit - Automatic central lubrication - Automatic fire extinguishing system - Automatic shutter flap - Gripper fingers for workpiece automation - 4 workpiece holders for workpiece magazine - 1 exchange unit with flushing set - Mechanical mist extractor N183 - HSK63F test arbor Max. workpiece outer diameter: 320 mm Max. workpiece length: 250 mm Max. bore diameter: 60 mm X1 travel: 520 mm Y1 travel: 970 mm Z1 travel: 420 mm A1 axis rotation range: 360° B1 axis rotation range: +/-20° E1 axis rotation range: 210° Grinding spindle speed, infinitely variable: 0 - 4500 rpm Connected load approx.: 8.7 kVA / 6.8 kW (400 V/50 Hz) Weight approx.: 7100 kg Dimensions (L x W x H): 4012 x 2889 x 2611 mm Colour: RAL 7047 telegrey 4 / RAL 7045 telegrey 1
