Kullanılmış Atlanta shrink ambalaj makinesi, tepsili, 90 derece, saatte 1500 paket

Atlanta Combigiotto 90-M

Machine Overview

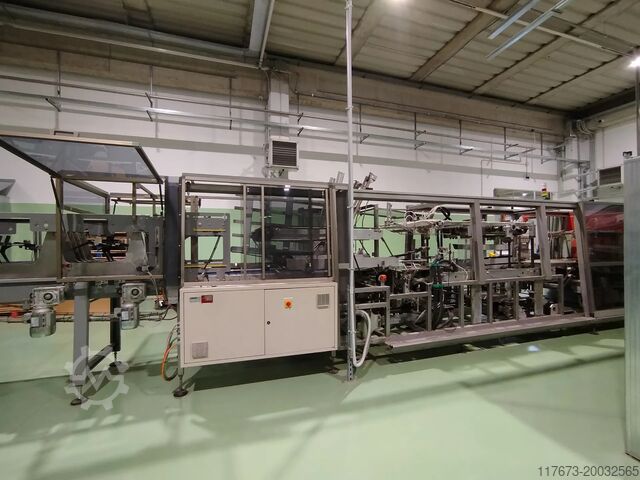

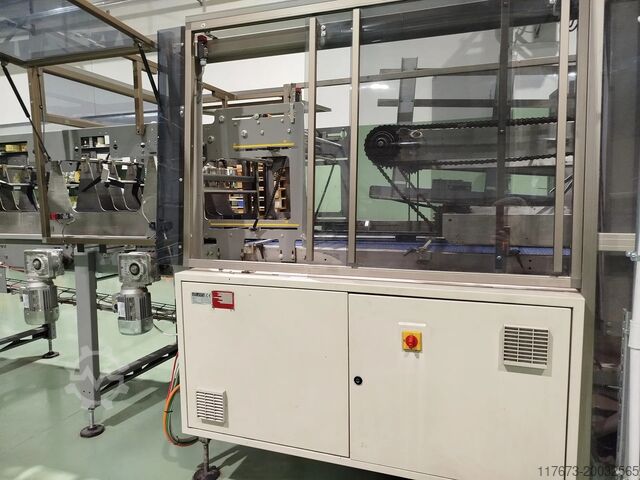

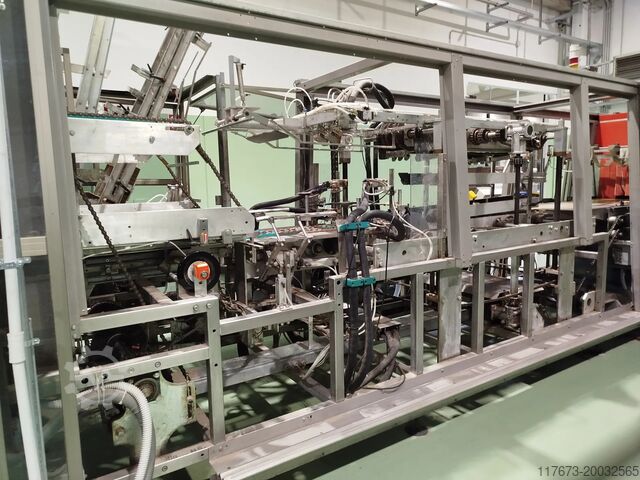

Automatic tray and film packer ATLANTA COMBIGIOTTO 90-M, designed for secondary packaging of bottles with 90° side infeed. The machine forms a corrugated tray and wraps the product with neutral shrink film, then passes it through a shrink tunnel to produce stable, retail-ready bundles. Ideal for beverage lines processing bottles made of PET, glass, or HDPE. Reference no. FA56. Year of manufacture: 2008, overhauled 2022. Condition: Ready for operation. Output up to 25 bundles/min depending on product and format.

Operating Concept: Automatic grouping of bottles, tray forming/loading, film wrapping, and consolidation in the shrink tunnel.
Packaging configuration: Tray + Neutral film (shrink).
90° infeed enables compact layouts and easy integration with existing conveyor systems.

Key Technical Data
Brand / Model: ATLANTA COMBIGIOTTO 90-M
Operation: Automatic
Infeed orientation: 90° side infeed
Packaging: Tray + neutral film
Tray magazine / forming: Available
Nominal capacity: up to 25 bundles/min (format- and product-dependent)
Lsdpfex H Thzjx Adpori
Year: 2008 (overhauled 2022)
Condition: Ready for operation
PLC: SIEMENS S7 E 300

Automation & Control
Industrial PLC-controlled system with operator HMI for recipe selection, speed setpoints, and diagnostics.
Inverter-controlled drives for smooth acceleration and product handling.
Optoelectronic sensors for product presence, faults, and film detection.
Shrink tunnel is temperature-controlled to ensure consistent film application.
Lockable access doors with safety monitoring for protected zones.

Line Integration
Infeed: Accepts bottles from conveyor with 90° transfer to the infeed section; integrated selection/diverter functions for creating packing patterns before tray loading.
Outfeed: Discharge conveyor after shrink tunnel for connection to inspection, carton handling, or palletizing.
Signals and handshakes typically include Start/Stop, faults, emergency stop, and speed reference.
Mechanical interface and layout diagrams available on request for line engineering.

Condition & Maintenance
General overhaul carried out in 2022.
Machine is delivered in ready-to-operate condition.
Preventive maintenance recommended: regular checks of the film path, knife/sealing components, tray magazine/erector, lubrications, and conveyor wear parts.

Performance & Versatility
Suitable for a wide range of cylindrical or square bottles commonly found in beverages.
Typical bottle pack patterns (e.g., 2×2, 3×2, 4×3, etc.), depending on container size and tray dimensions.
Neutral shrink film for clear presentation; tray provides strength and stack stability.
Consistent bundle quality ensured by controlled film wrapping and thermo-shrink process.

Site Requirements
Power supply: 400 V ±5%, 50 Hz ±1%, 3P + N + PE (separate neutral and protective earth).
Auxiliary systems: 24 V DC.
Instrumentation voltages: 24 V AC – 230 V AC...
