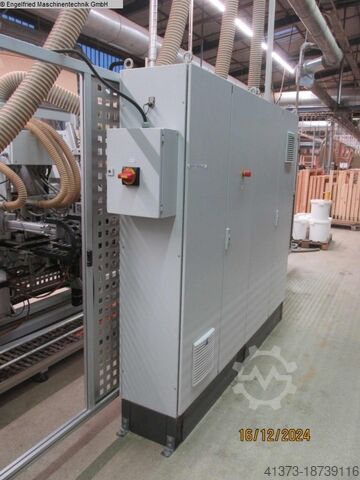

Delme ve dübel yerleştirme makinesi

GÖTZINGER 2 Stk. Bohr-Fraeszentrum

Durumu: mükemmel (kullanılmış), Üretim yılı: 2006, Fonksiyonellik: tamamen fonksiyonel, Tam çalışır durumda UniControl 12, 2006 model, Norveç menşeli. - Kesin teknik özellikler için lütfen aşağıdaki ekli PDF dosyasını açınız. Kesit UniTec 12: - Testere ünitesi - Alt kısımdan kenar yuvarlatma frezi - Hub mili no.1 - Hub mili no.2 - Hub mili no.3 Uzun, profil bölümü UniVar 12: - Profil frezi Iedpfx Aomgc I Nehwoik - Profil frezi - Yatay profil frezi - Profil frezi - Profil frezi - Profil frezi Toplam elektrik gücü: 114 kW 400 V AC Emiş ihtiyacı: 270 m3/dak Basınçlı hava ihtiyacı: 1000 L/dak Makine 15.08.2023 tarihine kadar aktif kullanılmıştır. Ödeme: Yüklemeden önce Teslimat: Fabrika çıkışı Rendalen - Norveç Makine Norveç'te (Trondheim'a yakın) bulunmaktadır Makine şu anda sökülmüş, kuru ve sıcak bir depoda muhafaza edilmekte olup sevkiyata hazırdır. Rekman Maskin & Service – 1986'dan beri ahşap işleme makinelerinde servis.

Üretim yılı: 1998, Durumu: mükemmel (kullanılmış), Pencere konstrüksiyon setini satıyorum: 1 adet Zıvana kesme ve kanal açma sistemi Weinig Unitec 10. 1 adet Profil Umfälzautomat merkezi Weinig Univar 10. Yapım yılı 1998. Freze kafaları OERTLI. Hemen kullanılabilir. Birlikte fiyat 17.000 Euro. Durum: çok iyi! Isdpfjfzzhyox Ahwoik

Durumu: yeni, Variable drilling diameter, mm Number of horizontal drilling heads: 3 pcs. Number of vertical drilling heads: 4 pcs. Weight: 1,500 kg Dimensions (L/W/H): 4800 x 1600 x 2400 mm Width with support: 2300 mm Götzinger Power Drill Type BF 315 With the Götzinger PowerDrill, depending on type and configuration, you can: Iiodped Ih Hqsfx Ahwek - Drill handle holes on loose frame parts or for finished sashes, using a multi-spindle drilling head, quick-changeable, also suitable for recessing the lock case for security class WK 2 or intermediate gear - Drill corner bearings on loose frame parts, with multi-spindle drilling head, quick-changeable, corner-oriented via stop or to size (tilt windows) - Drill vertically from above for hardware installation, pre-drilling for clips on loose frame parts - Mill vertically from above for handle sets, profile cylinders, and 3D hinge hardware - Drill horizontally with 2 drilling units, allowing for different drilling diameters, dowel drilling on face and longitudinal sides, for transoms/mullions, glazing bars, corner joints, front doors, etc. - Mill horizontally for lock case/hardware, etc. Machine Description Robust welded base frame, linear guide for the X-axis Table support: 3,000 x 200 mm 6 pneumatic clamping cylinders with automatic retraction stroke 2 side stops for face-end processing, manually foldable 2 longitudinal stops, manually foldable Travel Distances: - X-axis – effective length 3,000 mm - Y-axis – 180 mm - Z-axis – 105 mm Units: - 1 vertical drilling unit (Unit 1), top down, drill motor 1.1 kW Speed: 1,500 – 12,000 rpm, 1 spindle, collet ER 25 - 1 vertical drilling unit (Unit 2), top down, drill motor 1.1 kW Speed: 3,000 rpm, with quick-change device for drilling heads 1 drilling head BKF 3, olive, quick-changeable 1 drilling head BKF 3/2 corner bearing, quick-changeable - 1 vertical milling unit (Unit 3), top down, milling motor 2 kW, 1,500 – 16,000 rpm, collet ER 25 - 2 horizontal drilling units (Units 4 and 5), 1.0 kW, 1,500 – 12,000 rpm, collet ER 20 - 1 horizontal milling unit (Unit 3), 2.0 kW, 1,500 – 16,000 rpm, collet ER 20 Electro-pneumatic control with 3-axis (X, Y, Z) control NC positioning controller, manufacturer: B + R, programming via 10" TFT display Machine is supplied complete with 1 set of drilling tools (Ø 6, 8, 10, and 12 mm), 2 roughing/finishing HM cutters Ø 16 mm, CE-compliant, ready for connection Extraction connection: 1 x Ø 120 + 1 x Ø 80 Power connection: 1 x 400 V, 16 A Compressed air connection: 1 x hose 9 mm OPTION: Right/left longitudinal stops with NC axis, height programmable, thus dimensions can be entered based on rebate / light dimension Dimensions: L x W x H = 4.80 x 1.60 x 2.40 m – Machine weight 1,500 kg ----- Total price in the above configuration, ex works: upon request Plus freight and installation/commissioning (Technical information as per manufacturer – subject to change without notice!)

Durumu: kullanılmış, Üretim yılı: 2007, Slotting spindle 3 pcs Number of milling units: 5 pcs Spindle diameter: 50 mm Control system: Control 100 PC SCM Windor 100 CNC ----- Powerful and versatile CNC production line for windows and doors Machining of workpieces up to a maximum of 4500 mm length, 250 mm width and 150 mm thickness Consisting of Windor 60 Type B Infeed belt Iedpfx Ahow Im Iijwjik Slotting unit: ----- Pos. 1: Crosscut saw ----- - Motor 4 kW - 3000 rpm - Spindle diameter 40 mm - Maximum tool diameter 400 mm, bore 80 mm Pos. 2: 1st slotting spindle ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - Counter device "Jolly" - Infinitely variable vertical positioning - Interpolating rotation, automatic sash angle adjustment +/- 60 degrees Pos. 3: Electrospindle with HSK 63 F tool holder ----- - Min./max. speed 1,000-12,000 rpm - Maximum motor power 11 kW - Water cooling - Rapid 24 automatic tool changer with 24 positions Pos. 4: 2nd slotting spindle ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - Counter device "Jolly" - Infinitely variable vertical positioning - Interpolating rotation, automatic sash angle adjustment +/- 60 degrees Pos. 5: 3rd slotting spindle ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 3500 rpm - Maximum tool diameter 370 mm - Counter device "Jolly" - Infinitely variable vertical positioning Fleximat ----- Including left and right stop with horizontal CNC adjustment for the following continuous operations: Lock case milling and 9-degree anuba drilling from the right. Dowel drilling and strike plate marking from left and right, each with 7 spindles. Cup hinge drilling and olive drilling from above. Profiling unit ----- Pos. 5 : Power 2000 F4: Electrospindle with HSK 63 F tool holder ----- - Operating from the left - Min./max. speed 1,000-18,000 rpm - Maximum motor power 12 kW - Water cooling - Rapid 24 automatic tool changer with 24 positions Pos. 6: 1st profiling spindle from the right ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6,000 rpm - Tool diameter min./max. 130-250 mm - Infinitely variable vertical positioning - Infinitely variable horizontal positioning Pos. 7: 2nd profiling spindle from the right ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6,000 rpm - Tool diameter min./max. 130-250 mm - Infinitely variable vertical positioning - Infinitely variable horizontal positioning Pos. 7: 3rd profiling spindle from the right ----- - High-performance spindle with upper support bearing, spindle length 620 mm - Spindle diameter 50 mm - Motor 11 kW - 6,000 rpm - Tool diameter min./max. 130-250 mm ...

Durumu: yeni, Bore Diameter: variable mm Number of Horizontal Boring Heads: 1 unit Number of Vertical Boring Heads: 0 units 1 Götzinger Dowel Gluing and Insertion Machine BLE The BLE is used for end gluing and doweling of workpieces. Optionally, the BLE can be equipped with a boring unit, counter-milling unit, and longitudinal stop. A 10" touch panel allows for easy operation in both manual and online modes. Base Frame: compact design, sheet metal clad Table Support approx. 800 x 200 mm Pos. 1 ----- 1 Gluing Station Full jet valve Glue volume precisely adjustable Glue gun for counter-hole gluing Pos. 2 ----- 1 Glue Pump, stainless steel, high-pressure pump with glue hose Pos. 3 ----- 1 Insertion Station with dowel separation and insertion cylinder Pos. 4 ----- 1 Vibratory Feeder for dowels d 8 x 50 mm, including feed hose to insertion unit Pos. 5 ----- 1 Processing Unit with cross table, linear guide, and 3 NC axis motors X = 200 mm processing width Y = 120 mm processing height Z = 50 mm insertion depth Pos. 6 ----- 1 Positioning Control Touch panel, 10" color Up to 500 drilling patterns can be created and stored, which can be easily accessed as needed (1 drilling pattern can contain up to 16 dowel positions). Software prepared for online connectivity Iodpfx Aou Uu Uzshwjik For online control, the control data must be prepared by the customer-side software. Our machine can then read and process this data. ----- Total price in this configuration (Pos. 1 to Pos. 6): on request! Options at additional costs: ----- Pos. 7 ----- 1 Boring Unit horizontal, boring motor 1,000 W Speed 4,000 - 8,000 rpm, collet chuck Pneumatic feed Additional cost: EUR 4,305.00 Further accessories such as a larger touch screen, additional dowel station for other dowel diameters, program selection scanner, or gluing of balustrade rails available on request! Prices net plus statutory VAT, excluding packaging/shipping and commissioning. (Technical data according to manufacturer – subject to change!)
