GUBISCH EST-H 2000_IV68/78/88

Slotting spindle: 1 unit
Number of milling units: 3 units
Spindle diameter: 50 mm
Weight: approx. 7,500 kg

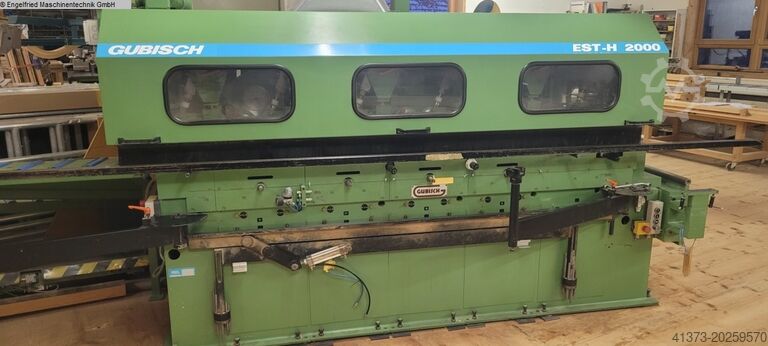

Gubisch Type EST-H 2000/2
---
Machine still in operation and available for inspection!

Manufacturer's description:
---

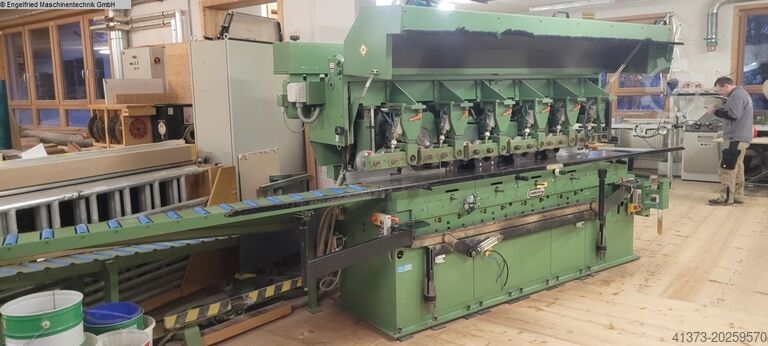

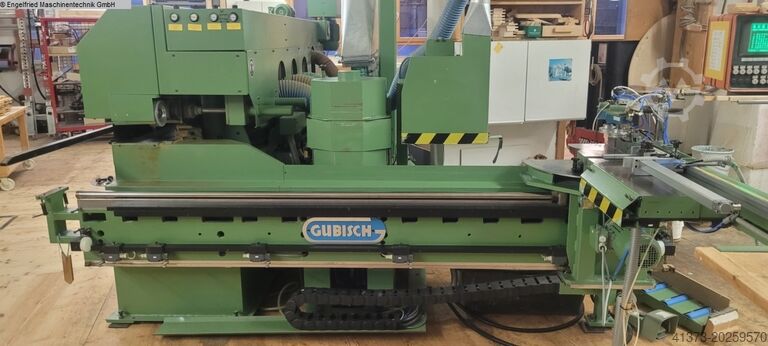

Single-sided angle combination unit for the production of windows and doors, consisting of tenoning and slotting machine, angled transfer unit, and milling machine.

Crosscut saw:
---
Power: 3 kW
Speed: 3,000 rpm
Saw blade diameter: 400 mm
Flange diameter: 80 mm
Adjustment: horizontal, manually adjustable, readout via mechanical digital display
Adjustment range: 0–120 mm

Length stop LAS
---
Adjustment: manual
Length: extended to 3.2 m

Slotting unit (cross processing)
---
Power: 9.2 kW
Speed: max. 4,500 rpm (depends on your tooling and is matched accordingly)
Clamping height: 300 mm
Useful height: 300 mm
Shaft diameter: 50 mm
Max. tool diameter: 400 mm; min. 240 mm
Adjustment: vertical
Vertical adjustment range: 210 mm below table
Number of tool sets: 3 sets of 100 mm each
Customer-supplied 0-height 10 mm

Shortest workpiece: 320 mm + tenon
Narrowest workpiece: 48 mm
Widest workpiece: 170 mm

1st profiling spindle
---
Spindle position: vertical, right
Function: profiling and climb-cut plunge automation
Power: 9.2 kW
Speed: 6,000 rpm
Clamping height: 100 mm
Useful height: 100 mm
Diameter: 50 mm
Tool circle diameter: 100–240 mm
Adjustment range: horizontal 70 mm, tool 0-height 10 mm
Tool quantity: 1 up to max. 100 mm clamping length

2nd profiling spindle
---
Spindle position: vertical, right
Function: profiling
Power: 9.2 kW
Speed: 6,000 rpm
Clamping height: 300 mm
Useful height: 300 mm
Diameter: 50 mm
Tool circle diameter: 100–240 mm
Adjustment range: horizontal 70 mm, vertical 100 mm for tool 0-height 10 mm
Tool quantity: 3 up to max. 100 mm clamping length

3rd profiling spindle
---
Spindle position: vertical, right
Function: profiling
Power: 9.2 kW
Speed: 6,000 rpm
Clamping height: 300 mm
Useful height: 300 mm
Diameter: 50 mm
Tool circle diameter: 100–240 mm
Adjustment range: horizontal 70 mm, vertical 100 mm for tool 0-height 10 mm
Tool quantity: 3 up to max. 100 mm clamping length

4th profiling spindle (glas bead saw aggregate)
---
Spindle position: horizontal, top right
Power: 3.0 kW
Speed: 3,000 rpm
Tool circle diameter: 250 mm
Clamping flange mount: 60 mm diameter
Adjustment (hydraulic): automatic up/down, forward/back for one base height and one base depth
Dwjdpfxoxmk Dwj Abpoc

Further technical data:
---
Clamping table slotting unit
---
On linear ball bearings and roller guides
Manual swivel range: 60 degrees in both directions

Feed speeds: 0–28 m/min, steplessly adjustable
4 feed speed zones: fast feed before slotting unit, slow feed in cutting area (adjustable), fast feed for transfer, fast return

Counterblock: Counterblock changes automatically with spindle lift

Transfer system to profiling area: automatic
Operating modes: single-part production, frame-based, and series production possible

Longitudinal profiling
---
(Breaks off here in original)
