Kılavuzlu/çekişli torna tezgahı

Haaf (Gema) LZ185

Manufacturer: Haaf (formerly Gema)
Model: LZ 185
Swing diameter over bed: 365 mm, over cross slide: 225 mm
Turning length: 750 mm
Center height: 185 mm
Spindle bore: 40 mm
Spindle flange: KK5 (DIN 55022)
Spindle taper: MK5

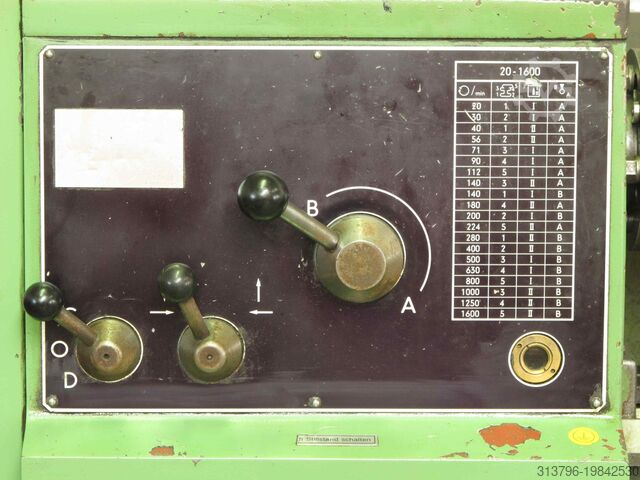

Speed range: 20 – 1,600 rpm
Heidenhain VRZ 773 B digital readout, 2 axes
(Scales on cross slide and longitudinal slide)
Dimensions: 1,900 x 900 x 1,700 mm

Rsdpfx Alsw Svtcjmjt
Features:
- Spindle brake with foot pedal
- Adjustable stop on cross slide (disengages feed)
- Splash guard

Accessories:
- Operating manual
- Multifix B toolholder with 2 inserts
- Coolant pump integrated in machine base (no coolant hose connected)
- Röhm 3-jaw chuck, 200 mm, with hard and soft jaws

Weight approx. 950 kg
Condition: Used
The machine runs smoothly and can be inspected under power.

All information is provided without guarantee, subject to errors. All dimensions are approximate. This offer is without obligation. The machine can be inspected by appointment.
Changes and errors in technical data, specifications, and prices as well as prior sale reserved.
All prices are net plus VAT. Payment by advance bank transfer including any applicable freight costs within 14 days of contract conclusion.
If full payment of the purchase price is not received within this period, the seller reserves the right to cancel the contract.
The sale is exclusively to businesses as defined by § 14 BGB. The machine is sold with exclusion of liability for material defects. This exclusion does not apply to claims for damages from liability for material defects resulting from grossly negligent or intentional breach of obligations by the seller or his agents, as well as in cases of injury to life, body, or health. Any existing third-party warranty claims are assigned to the buyer. Please understand that no liability is assumed by me for compliance with any applicable or generally required safety regulations for the sold machine and its components at your site. Compliance with such safety regulations is the responsibility of the end user.

All contracts concluded by me are subject exclusively to the law of the Federal Republic of Germany, to the exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG). Place of jurisdiction is agreed to be Mannheim.
