Column drilling machine
Optidrill / Optimum DP 33

Name: Optidrill / Optimum DP 33
Brand: Optidrill / Optimum
Price: 1625 EUR
Availability: InStock

Sabit fiyat KDV hariç

€1.625

Üretim yılı

2026

Durum

Yeni

Konum

Bitburg

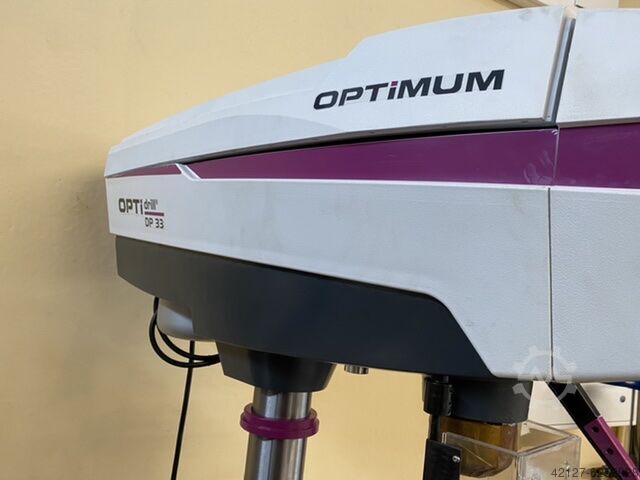

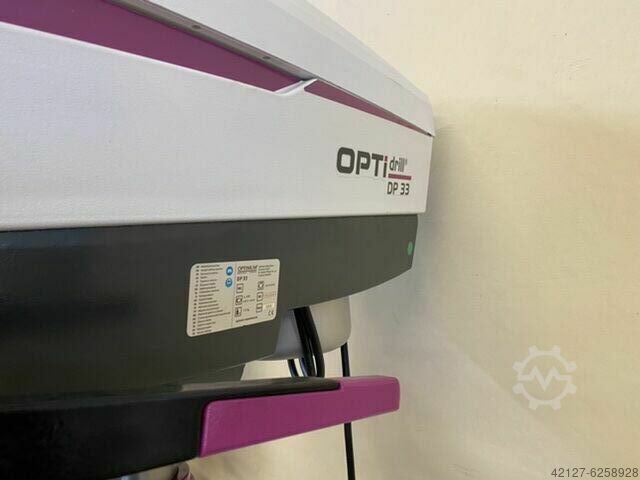

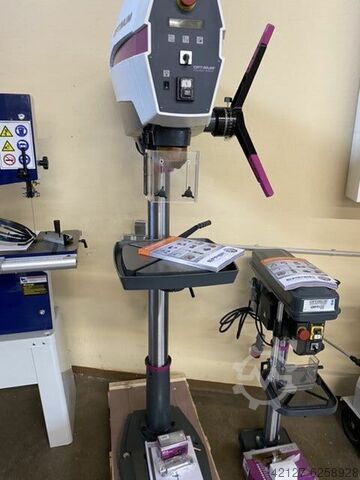

Column drilling machine Optidrill / Optimum DP 33

Temel veriler

Makine adı:: Column drilling machine

Üretici:: Optidrill / Optimum

Model:: DP 33

Üretim yılı:: 2026

Durum:: yeni

Fiyat ve Konum

Sabit fiyat KDV hariç

€1.625

Konum:: Südring 37, 54634 Bitburg, Deutschland

Ara

Teklif detayları

İlan Kimliği:: A625-8928

Son güncelleme tarihi:: 04.01.2026

Açıklama

Heavy-duty design for the entire machine
High running smoothness thanks to a new spindle design
Industrial motor

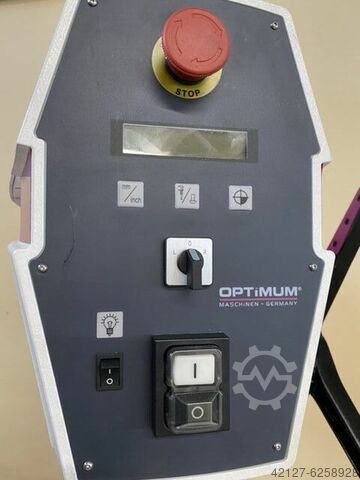

Separate emergency stop switch
Drill depth stop
LED machine light integrated into the drill head
Precisely machined, stable drill table with diagonally arranged T-slots and an all-around coolant channel
Drill table can be tilted ± 45° and rotated 360°
V-belt cover with safety switch
Precision spindle bore
Machine control and safety electronics in 24 V DC
Guaranteed concentricity accuracy ≤ 0.02 mm measured in the drill spindle
Thick-walled steel column for high force absorption and stability
Massive, generously sized base plate with T-slots

Dimensions and weights
Column diameter 92 mm
Length approx. 945 mm
Width/Depth approx. 485 mm
Height approx. 2040 mm
Weight approx. 162 kg
Drilling capacity
Drilling capacity in steel (S235JR) 30 mm
Continuous drilling capacity in steel (S235JR) 25 mm
Drill table
Working surface length 355 mm
Working surface width 355 mm
Type of T-slots diagonal
T-slot size 14 mm
Number of T-slots 2
Bjdjg Uaiuepfx Acfeww
Rotation 360°
Tilt 45°
Distance spindle - drill table max. 784 mm
Speed range
Speed range 120 – 1810 min⁻¹
Number of speed ranges 9
Electrical data
Connection voltage 400 V
Mains frequency 50 Hz
Machine base
Distance spindle - machine base max. 1470 mm
Working surface length 230 mm
Working surface width 300 mm
T-slot size 16 mm
Number of T-slots 2
Spindle
Quill stroke 125 mm
Spindle mount MK 4
Overhang 270 mm

Location: In stock at warehouse 54634 Bitburg
- immediately available -
