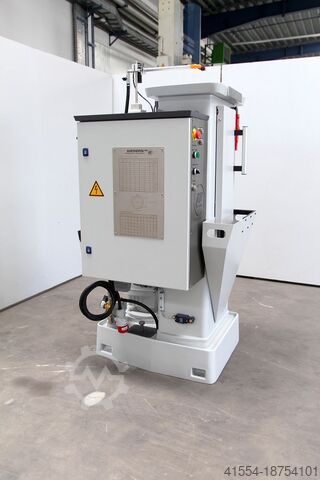

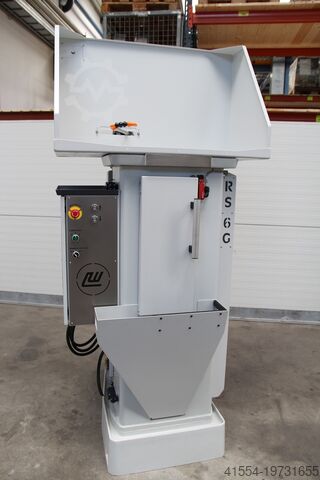

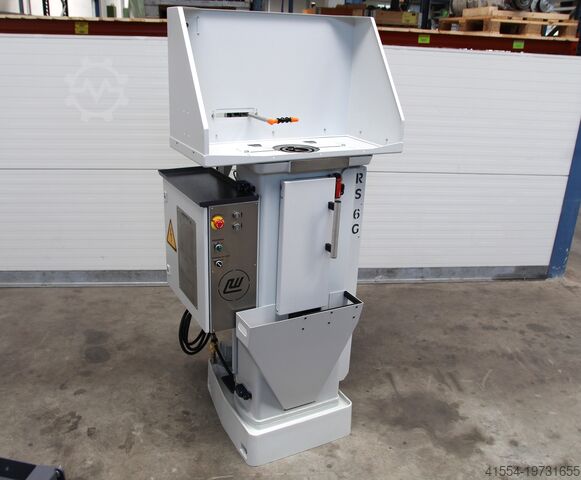

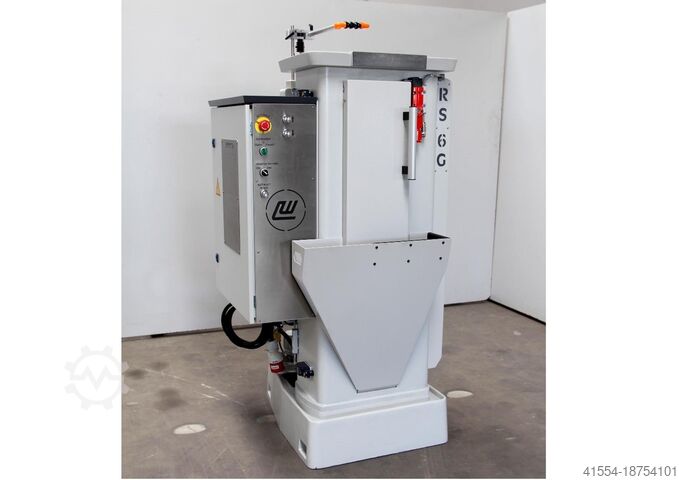

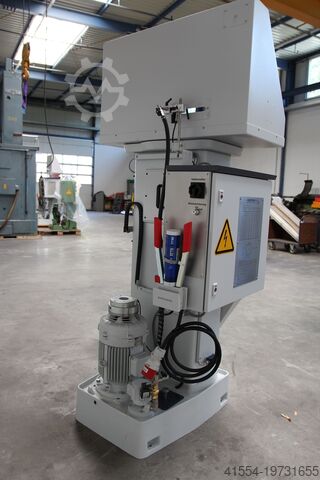

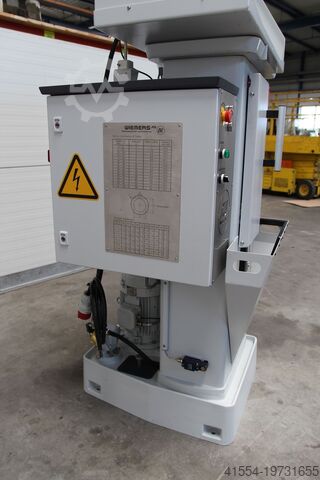

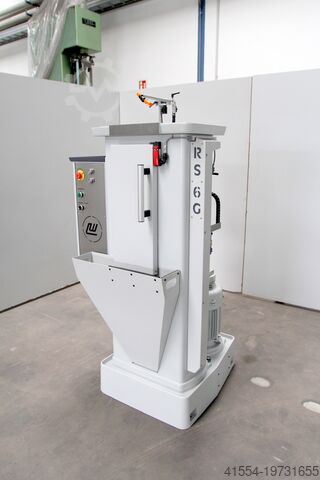

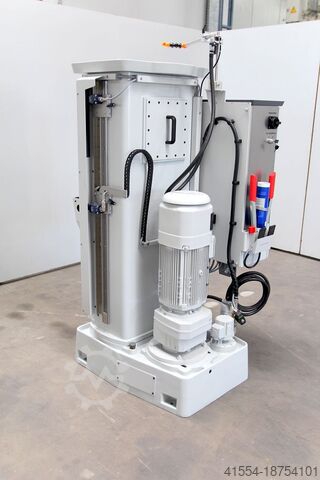

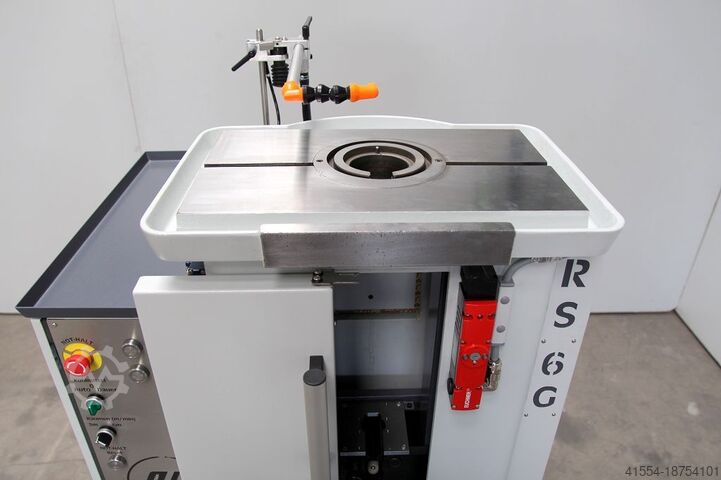

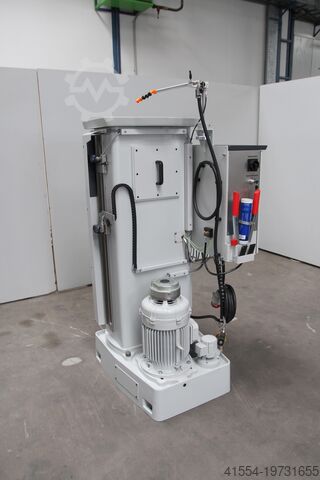

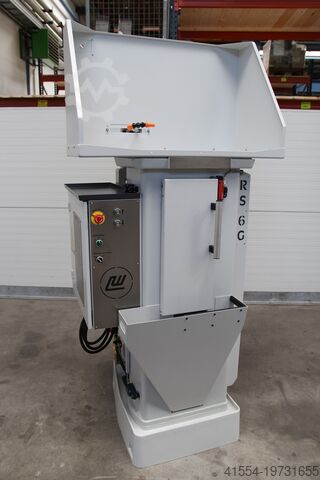

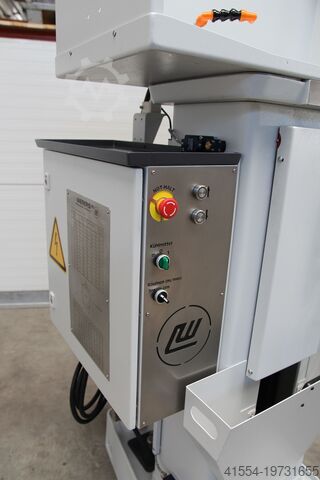

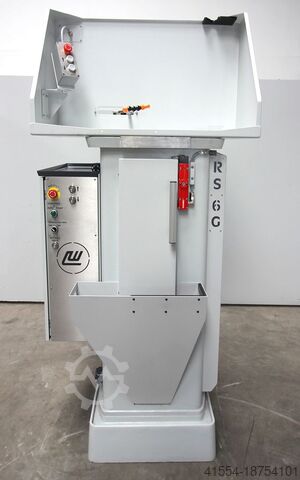

Broşlama makinesi

Rausch RS 6G

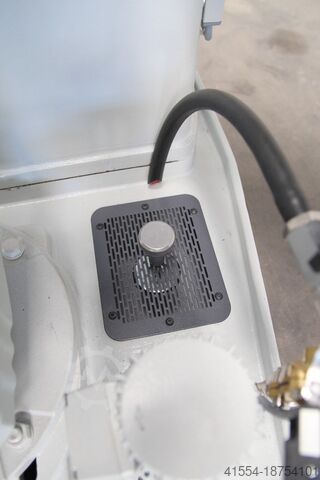

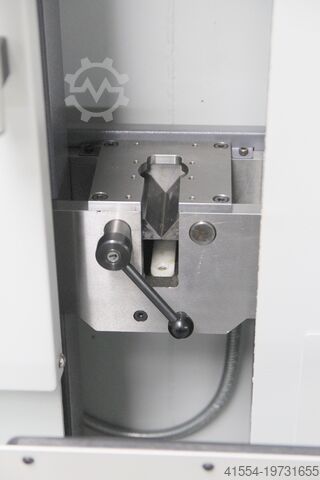

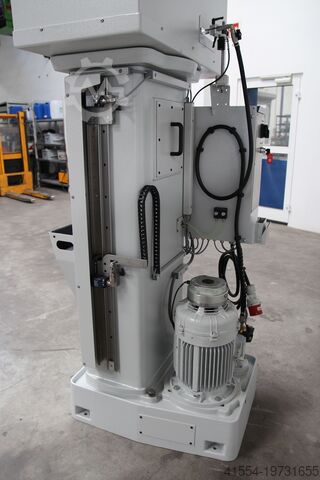

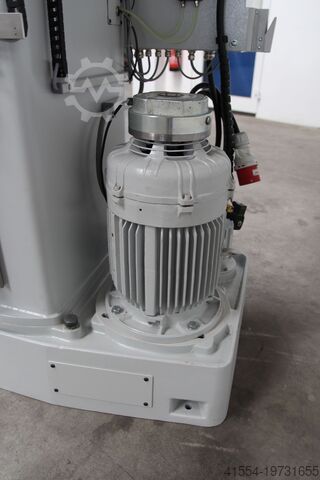

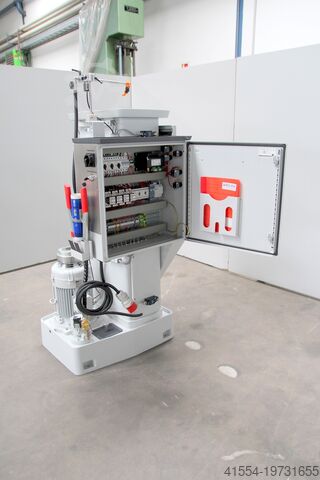

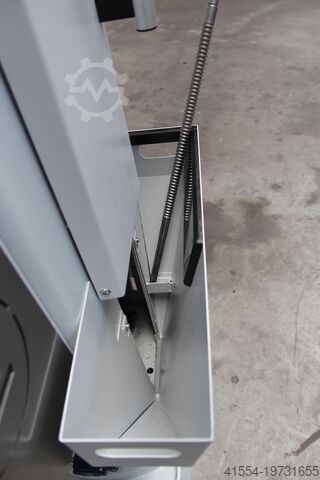

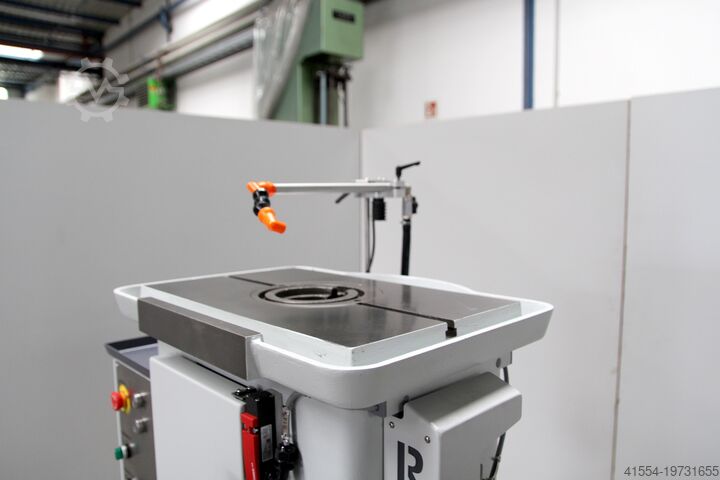

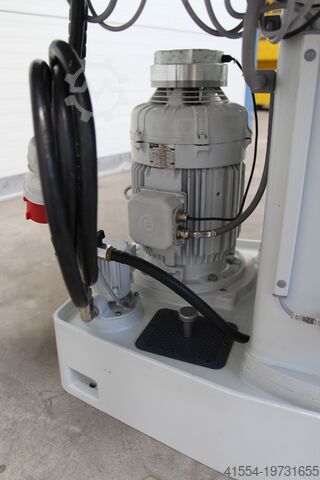

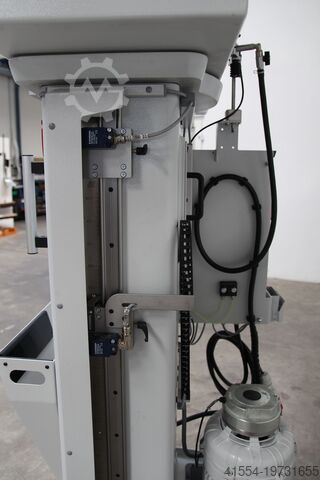

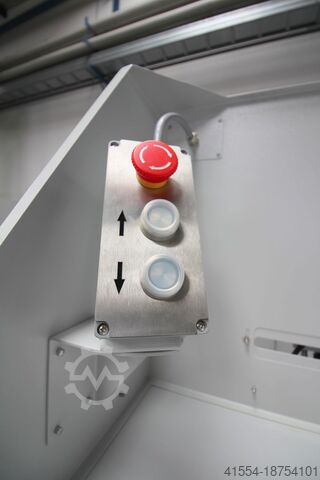

Durumu: yenilenmiş (kullanılmış), Fonksiyonellik: tamamen fonksiyonel, Üretim yılı: 2024, broş uzunluğu: 1.000 mm, broşaj pozisyonu sayısı: 1, tornalama hızı: 3 m/dak, Manufacturer: Rausch (Haan/ Rhld) Model: RS 6/1000 Machine No.: 51261 Year of manufacture: 1978 Weight: 680kg Overhauled: 11/2024 by Wiemers AG General / Technical Data: Overhauled mechanical vertical broaching machine Rausch RS 6 G Pulling force: 60 kN Broaching speeds: 3m/min and 6m/min Return speed: 6m/min Maximum stroke: 1000mm Maximum tool length: 1200mm Table size / working area: 610x470mm / 520x320mm Table opening: Ø 90mm for standard broaching tools Workpiece diameter: unlimited Dimensions (h x w x d): 2,250mm x 850mm x 1,200mm (h = table height from floor without add-ons) Motor: 4.4 kW / 5.5 kW Power supply: 400 Volt / 50 Hz Additional modifications / optimizations made compared to the original machine: - External stroke adjustment - New, cross-machine, reproducible tool length setting system - Additional limit switches for end-position monitoring - Safety door with monitoring (emergency stop circuit) - Machine cladding below the safety door with chip protection and tool storage - Electric sensing of clamping jaws (tool removal control to prevent unintended retraction of the bridge) - Coolant swing system with solenoid valve linked to swinging motion (for activating coolant before broaching stroke is triggered – visual check of lubricant flow, no dry cuts!) - Routing of electrical cables in steel protective conduits - Heavy-duty control cabinet mounting for accommodating machine components - Additional oil-tight drip tray on top of control cabinet - 3-sided splash guard enclosure (w=960 x d=450 x h=590mm) - Reinforced chip screen with magnetic filter - Control panel made of stainless steel sheet with permanent markings - 4 centralized lubrication points for trapezoidal spindle drive Comments: The machine has been completely overhauled; the machine body is fully refurbished. All wear parts have been replaced. - New trapezoidal spindles and spindle nuts made from cast, wear-resistant bronze - All bearings and seals have been renewed - The coolant system (pump, solenoid valve and drain valve), including coolant/lubricant swing system, is new - The clamping jaws are new - Complete electrical system (control cabinet) is new - All sheet metal and covers are new - The following components have been overhauled and reused: - Machine base - Machine column - Machine table with table insert - Pulling bridge (clamping jaws are new) - Gear wheels - Electric motor (new brake, new bearings) Bodpfx Aew Ighisd Nelp The machine is in stock and can be inspected under power. The pictures attached are original photos of the machine. The machine is CE-marked. The CE status corresponds to the standard as of 1998 (first overhaul).
