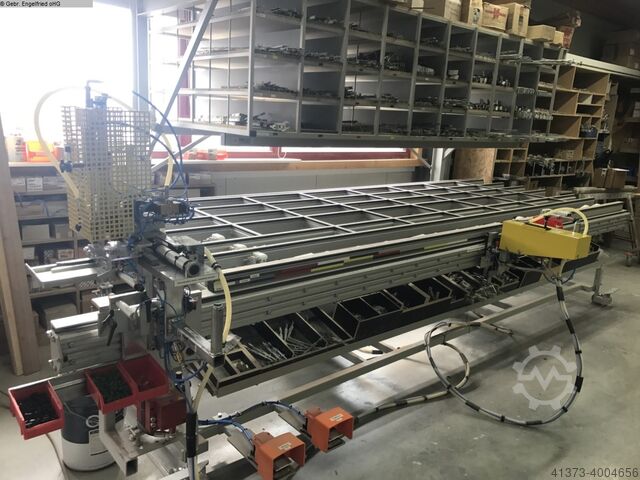

Ruchsr Assembly line consisting of:

Item 1.0 /
RU-CBM 4000 work table
with running rail extended by 500mm for additional assembly
an aluminum holder screwing machine for RU-CSA-SMB or RU-CSA-SMZD
with RU-SH special screwdriver, support table
Length 4000 mm, width 1400 mm, inclination of the working platform
manually adjustable. Holder for fitting scissors or fitting punch.
16 pieces of swiveling counter-holders for hanging the wings, completely
pneumatic
Foldable for unhindered movement of the wings on the table surface.
Device for scanning the sash fitting length for constant and
variable/central gear seat for already drilled wings, colored
Dimension recognition of the fittings.
RU-SH, special screwdriver with pneumatic depth switch on carriage
mounted, safety control, pneumatic height adjustment,
Screw feeder with automatic shutdown of the filling container
(Manual insertion for a second screw length on the special screwdriver upon
request).

RA-8, turret stop for 8 screw levels mounted on the carriage.

RA-4, turret stop for 4 different wing widths
Swivel table mounted.
Pneumatic wing measurement sensing. operated, scanning range up to 2500mm
simultaneous clamping of the scanning.

PSF - Pneumatic tensioning device for sashes.
Working height adjustable from 900 - 1000 mm.
Support table covered with felt. Running rail extended to the left by 800 mm.

Item 1.1 / 5035-1
Pneumatic swivel device of the work surface with foot valve

Item 1.2 / 0500000
Holder matched to customer punch/scissors.
For mounting a hardware punch provided by the customer or
Fitting shears (third-party manufacturer) on the sash assembly table.

Please specify make when ordering!!!

Item 1.3 / 5597-7
Driving device for RU-CBM on semicircular rails.
The castors are on the left and right of the base frame
of the table mounted.

Item 1.4 / 6354-6
3 double meters of semicircular rails 30 x 10 mm.
Item 1.5 / 0730000
RU-SBL3000/40 free-standing fitting bearing,
Length 3100 mm, depth 1250 mm, height 2200 mm,
Stand frame on the front without supports,
40 compartments, divided into 10 compartments in a row by dividers
and a continuous shelf at the top,
Compartment size: width 280 mm, height 150 mm.

Item 2

RU-CSA-SMB aluminum holder screwing machine with automatic
Screw feeding and manual feeding of the aluminum holders from one
traveling box with pneumatic positioning device,
Cedpfx Asd Ih Hueazsri
Screwdriver with depth cut-off with 4-fold turret stop.
Pneumatic adjustment device in the y direction against 2 pieces 6-fold
Revolver attacks. Feed container for manual feeding of rotary holders
or clip holder in square shape 18.5 x 18.5.
The holder is manually pushed into a channel in the box and with
positioned in front of the screwdriver mouthpiece using a pneumatically
operated slide.
Profile depth max. 150 mm, screw spacing in the y direction max. 120 mm.

Item 3
RU-S48-A6-350 column slewing crane
for chain hoist, with 6 m aluminum boom
Version with column, smooth-running boom
and sliding chassis for swivel and trolley travel
manually by pulling and pushing the load.
Projection 6 m
Construction height 4,461 m
Lower edge of boom 3.722 m (top edge of boom 3.9 m)
Swivel range max. 270°
Painting of the steel construction in RAL 7035
The base plate is attached to the on-site hall floor
At least 250 mm thick.
Designed, of course, according to the valid STANDARD EN 13155...
