Merkez torna tezgahı

Schaublin 150

Schaublin 150 High-Precision Lathe with 2-Axis Digital Readout ND780

Technical Data:

>> Year of manufacture: approx. 1980
>> Centre height: 150 mm
>> Centre distance: 630 mm
>> Swing over bed: 340 mm
>> Spindle nose: Camlock D1-4
>> Spindle bore: 40 mm
Crjdpfewynluex Aa Ioh
>> Longitudinal and cross feeds: 0.025–0.35 mm/rev
>> Metric threads: 0.25–14 mm
>> Tailstock: MT3 (Morse taper 3)
>> Stepless spindle speeds: 55–3000 rpm
>> Rapid traverse motor: 1500 rpm
>> Total power requirement: 4.45 kW
>> Weight: approx. 1200 kg

Accessories:

>> 160 mm three-jaw chuck, 1 set of jaws
>> Multifix B, 3 tool holders
>> Collet chuck with collets
>> Change gears
>> Stops
>> Coolant system
>> 1 box of interchangeable jaws
>> Centre points
>> Operating manual

About the Machine:

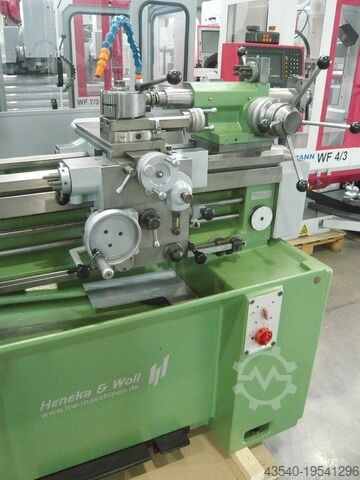

Offered here is a Schaublin 150 high-precision lathe. The machine is fully functional, features a rapid traverse, and is in good used condition. Take advantage of the opportunity to inspect the machine under power on site and see its condition for yourself.
