Dizel dolum istasyonu Akaryakıt istasyonuSchneider Tankbau
5m³ Dieseltank DIN 6616/D + Zapfpumpe
Dizel dolum istasyonu Akaryakıt istasyonu
Schneider Tankbau
5m³ Dieseltank DIN 6616/D + Zapfpumpe
Durumu
Kullanılmış
Konum
Almanya

Resimleri göster
Haritayı göster
Makineye ait bilgiler
- Makine tanımı:
- Dizel dolum istasyonu Akaryakıt istasyonu
- Makine üreticisi:
- Schneider Tankbau
- Seri numarası:
- 5.000 Liter-Tankstelle
- Durumu:
- iyi (kullanılmış)
- Işlevsellik:
- tamamen fonksiyonel
Fiyat ve Konum
- Konum:
- Hessen, Deutschland

Ara
Teklif detayları
- Listeleme kimliği:
- A321-3421
- Referans no.:
- ogs5-HDM-eco-Box
- Son güncelleme tarihi:
- 29.10.2025
Açıklama
In-house Fuel Station – Company Fuel Station – Double-walled Tank System – comprising:
- 5,000-liter tank according to DIN 6616/D, above-ground, double-walled – used
- Fuel dispenser type eco-Box-55 – brand new
Tank Description:
According to DIN 6616/D, above-ground, double-walled, incl. test certificate.
The tank is equipped with two saddle feet, a manhole DN 500 with dome cover, is used,
internally drained and professionally cleaned, and comes fitted with the following accessories:
1 filling pipe with TW closure (fill cap) and dip pipe
1 gauge pipe with measuring rod and closure
1 vent pipe with vent cap
1 brand-new overfill prevention sensor with type approval (AIII)
1 ladder and 1 spare socket for extraction purposes
1 optical leak detector with type approval and leak detection liquid.
The exterior of the tank will be newly primed and painted.
Dimensions: L = approx. 2.70 m + 0.70 m for console / D = 1.60 m / Weight approx. 1.7 t / ex works, free loaded.
Fuel Dispenser Description:
Type eco-Box-55 – non-calibratable,
Pumping capacity up to approx. 55 l/min, suitable for diesel fuel, incl.:
- Fuel management terminal with integration to myTecalemit Cloud
- incl. web-based tank data management software – Basic module –
- 2 ID systems driver/vehicle for max. 4,000 users
- Identification via transponder technology
- USB interface for data retrieval
- Vane cell pump with single-phase asynchronous motor – 230 Volt
- Oval gear meter with pulse generator, accuracy approx. +/- 0.5%
- 4 m dispensing hose DN 19 with type-approved automatic nozzle,
incl. swivel joint and hose holder
- Rated suction height approx. 3.5 m / max. suction line length = 6.0 m
- Robust powder-coated steel housing
Dimensions: approx. 553 x 470 x 380 mm
- Two-line illuminated monochrome display, character height 8 or 19 mm
- Tank data memory for up to 10,000 dispensing records
- Menu navigation in German, English and French
Fjdpsdccdqefx Aatjgi
Magnetic key/transponder required additionally.
On request, a dispenser with a nominal capacity of 75 l/min can also be installed.
General Information:
The price for the fuel station is ex works Söhrewald near Kassel, free loaded.
(Delivery can be offered at an additional, economical cost.)
Delivery time upon request (approx. 4 weeks)
You will receive an invoice with VAT shown separately.
Purchase is subject to our general terms and conditions.
Other tank systems (new and used) and rental systems are also available!
In addition, we purchase existing tank systems and can professionally empty, clean,
dismantle, and transport them away, in compliance with the Water Resources Act (§ 62 WHG),
with certified specialist company qualification.
Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
- 5,000-liter tank according to DIN 6616/D, above-ground, double-walled – used
- Fuel dispenser type eco-Box-55 – brand new
Tank Description:
According to DIN 6616/D, above-ground, double-walled, incl. test certificate.
The tank is equipped with two saddle feet, a manhole DN 500 with dome cover, is used,
internally drained and professionally cleaned, and comes fitted with the following accessories:
1 filling pipe with TW closure (fill cap) and dip pipe
1 gauge pipe with measuring rod and closure
1 vent pipe with vent cap
1 brand-new overfill prevention sensor with type approval (AIII)
1 ladder and 1 spare socket for extraction purposes
1 optical leak detector with type approval and leak detection liquid.
The exterior of the tank will be newly primed and painted.
Dimensions: L = approx. 2.70 m + 0.70 m for console / D = 1.60 m / Weight approx. 1.7 t / ex works, free loaded.
Fuel Dispenser Description:
Type eco-Box-55 – non-calibratable,
Pumping capacity up to approx. 55 l/min, suitable for diesel fuel, incl.:
- Fuel management terminal with integration to myTecalemit Cloud
- incl. web-based tank data management software – Basic module –
- 2 ID systems driver/vehicle for max. 4,000 users
- Identification via transponder technology
- USB interface for data retrieval
- Vane cell pump with single-phase asynchronous motor – 230 Volt
- Oval gear meter with pulse generator, accuracy approx. +/- 0.5%
- 4 m dispensing hose DN 19 with type-approved automatic nozzle,
incl. swivel joint and hose holder
- Rated suction height approx. 3.5 m / max. suction line length = 6.0 m
- Robust powder-coated steel housing
Dimensions: approx. 553 x 470 x 380 mm
- Two-line illuminated monochrome display, character height 8 or 19 mm
- Tank data memory for up to 10,000 dispensing records
- Menu navigation in German, English and French
Fjdpsdccdqefx Aatjgi
Magnetic key/transponder required additionally.
On request, a dispenser with a nominal capacity of 75 l/min can also be installed.
General Information:
The price for the fuel station is ex works Söhrewald near Kassel, free loaded.
(Delivery can be offered at an additional, economical cost.)
Delivery time upon request (approx. 4 weeks)
You will receive an invoice with VAT shown separately.
Purchase is subject to our general terms and conditions.
Other tank systems (new and used) and rental systems are also available!
In addition, we purchase existing tank systems and can professionally empty, clean,
dismantle, and transport them away, in compliance with the Water Resources Act (§ 62 WHG),
with certified specialist company qualification.
Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
Tedarikçi
Not: Ücretsiz kaydolun veya giriş yapın, tüm bilgilere erişmek için.
İlk kayıt tarihi: 2014
İstek gönder
Telefon & Faks
+49 5608 ... ilanlar
Bu ilanlar da ilginizi çekebilir.
küçük ilan
Bautzen
2.115 km
Depolama tankı Çelik tank, çift cidarlı
TankTankstelle, Dieseltankstelle, Öltank
TankTankstelle, Dieseltankstelle, Öltank
küçük ilan
Weiterstadt
2.423 km
Forklift
LindeH45D-04-600
LindeH45D-04-600
küçük ilan
Malax
2.812 km
Doğrama
KrüsiCM40
KrüsiCM40
küçük ilan
Warstein
2.501 km
Tank sistemi Dizel tankı Yağ tankı
küçük ilan
Söhrewald
2.416 km
EN 12285-2'ye göre akaryakıt tankı
Schneider TankbauLagerbehälter für Heizöl, Diesel, HVO
Schneider TankbauLagerbehälter für Heizöl, Diesel, HVO
küçük ilan
Warstein
2.501 km

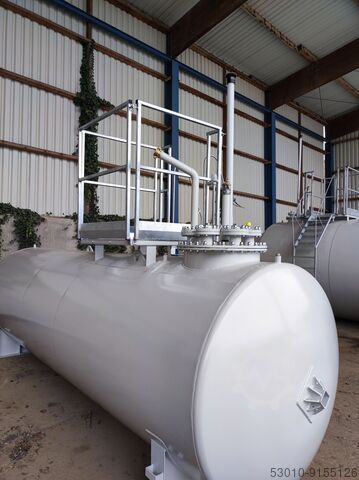

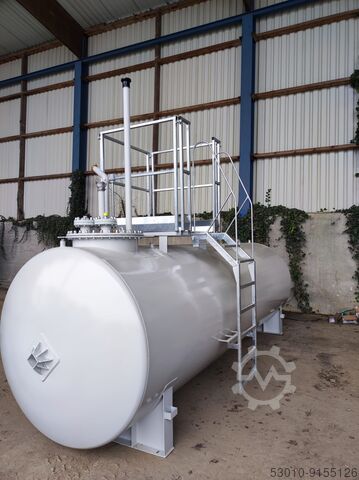

10.000 litre kalorifer yakıtı mazot tankı depolama tankı
Tankanlagen Wozniack10.000 Liter Tank nach EN 12285-2 Norm
Tankanlagen Wozniack10.000 Liter Tank nach EN 12285-2 Norm
küçük ilan
Bovenden
2.411 km
Planya ve kalıpçı
WEINIGHydromat H25R
WEINIGHydromat H25R
küçük ilan
Miechucino
2.147 km

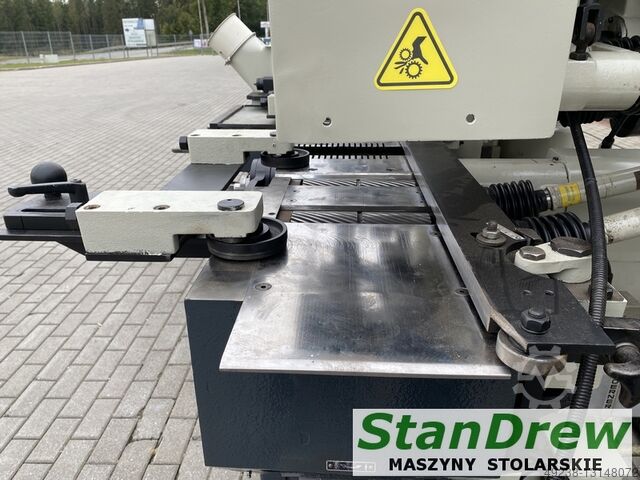

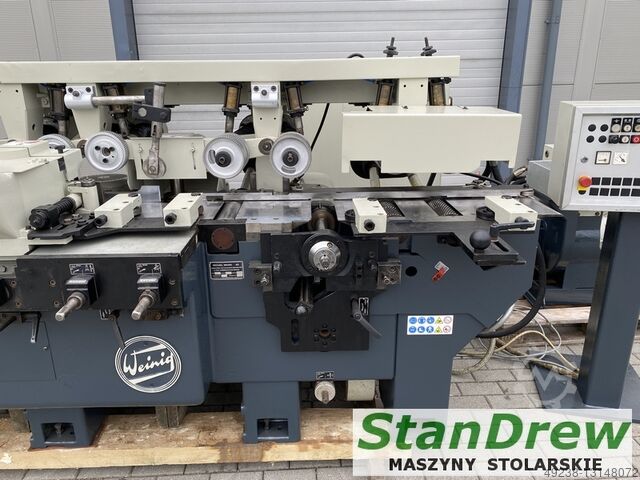

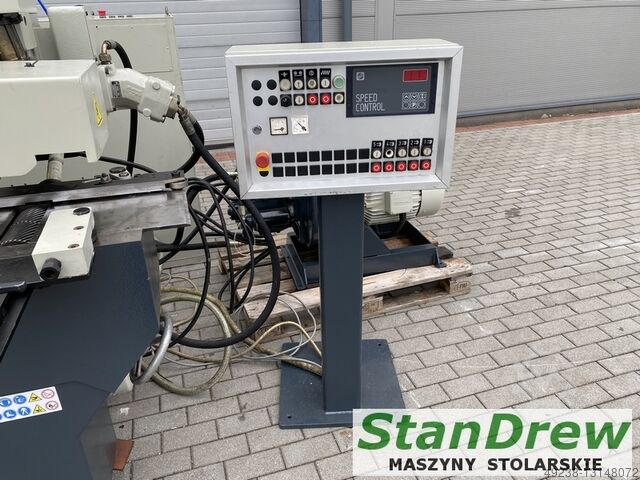

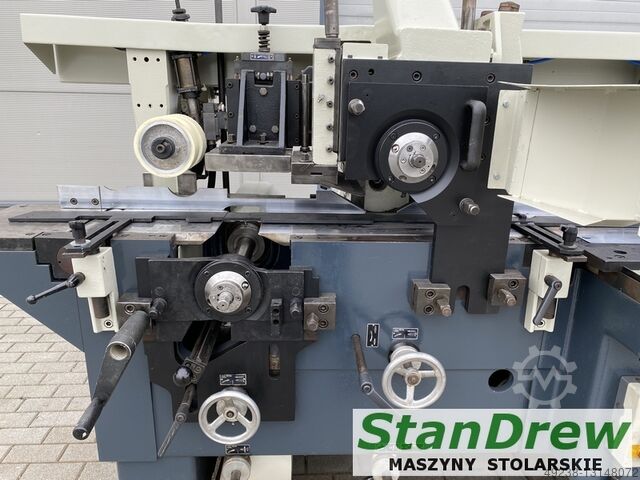

Weinig Hydromat H22N planya makinesi
