Thickness Planers with Tersa

SCM / Holzkraft Minimax s 41 es

4-knife cutterhead for optimal planing results
Smooth operation thanks to the precision unit and the heavy cast-iron construction
Front steel infeed roller with helical gearing for optimal feed rate
Satin-finished steel outfeed roller, optionally with a rubber roller in the outfeed
The work table is mounted on four large columns, ensuring maximum stability under all working conditions.

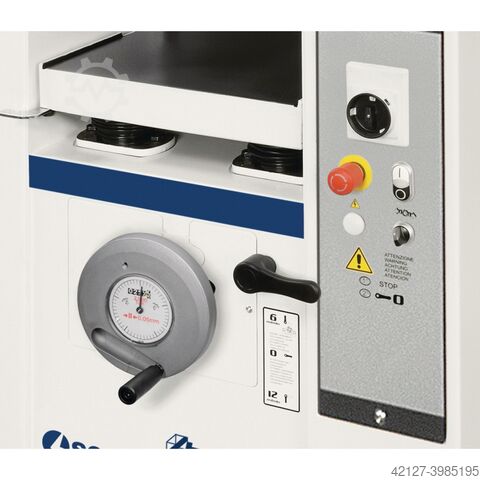

The thickness table adjustment is done via a handwheel with a numerical display for the set planing height (accurate to 1/10 mm)
Standard with two feed speeds, comfortably selectable from the operator's side
Powerful industrial motor
Stable steel and cast iron construction

Equipment details:
Work table

Mounted on four large spindles, which ensure maximum stability under all working conditions
A special lifting device ensures that the table position is maintained perfectly, even without locking

TERSA planing cutterhead

No more adjustment and screwing
Planer knife change in seconds
Self-locking
Particularly quiet

Thickness table adjustment on S 41 elite s

via a handwheel with a numerical display for the set planing height (accurate to 1/10 mm)

Dimensions and weights
Length approx. 900 mm
Width/Depth approx. 1070 mm
Weight approx. 361 kg
Dust extraction connection
Dust extraction nozzle diameter for thicknessing 120 mm
Drive power
Main motor 5 kW
Installation information
Space requirement Length 1070 mm
Space requirement Width/Depth 900 mm
Space requirement Height 1100 mm
Explanation of space requirement: The dimensions take into account maximum travel distances or usable lengths.
Machine body Length 1040 mm
Machine body Width/Depth 900 mm
Length 3000 mm
Width 1600 mm
Chsdpfxod Hx Hns Alyjd
Explanation of working area: Please add the specified dimensions to the space requirement to obtain the recommended free installation area for the machine.
Thicknessing
Thickness table Length 423 mm
Thickness table Width 775 mm
Working height min. 3 mm
Working height max. 240 mm
Working length min. 180 mm
Maximum chip removal 5 mm
Electrical data
Connection voltage 400 V
Planer cutterhead
Type TERSA
Diameter 95 mm
Number of planer knives 4 pcs
Speed 5000 min¯¹
Planer width max. 410 mm
Feed
Speed 6/12 m/min
