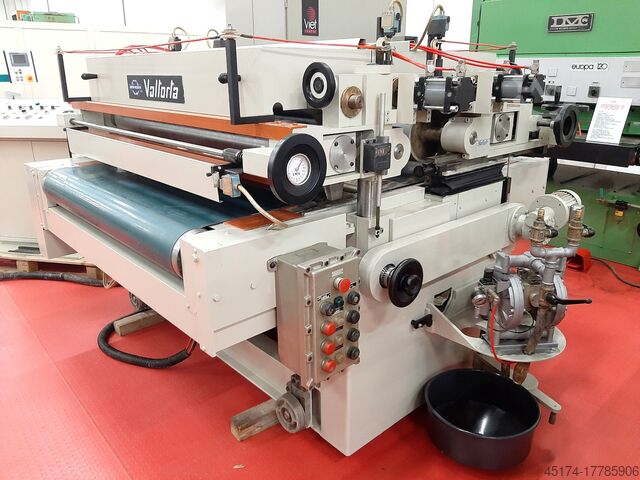

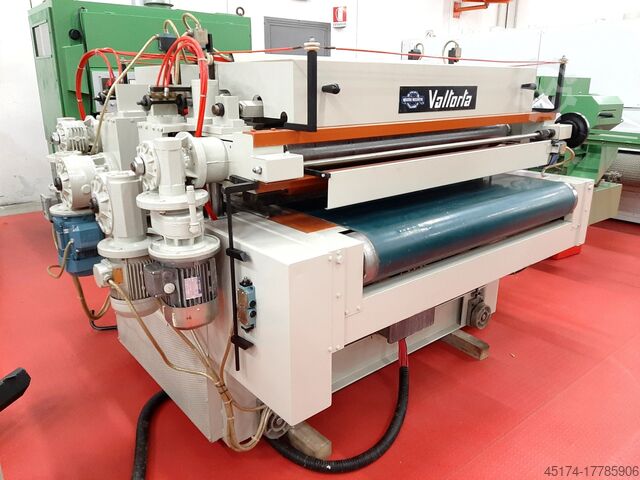

Roller coater

VALTORTA FV/TR

Code: 0442
Brand: VALTORTA
Model: FV/TR

Roller coater machine REVERS for rollcoating of basecoats and U.V. top coats

Conveyor feed system with auto-centering system to keep the belt in track
Working width mm 1300
Working table height from the floor mm 900
Working thickness mm 1/180
1 Rubber covered spreading roll diameter mm 240
Chedpfx Asu T Hbwslyed
1 Steel dosing roll unit n° 1 diameter mm 165
1 Rubber covered spreading roll REVERS unit diameter mm 240
1 Steel dosing roll REVERS unit diameter mm 165
Rubber covered conveyor rolls diameter mm 190
Rubber covered conveyor rolls diameter mm 60
Rubber covered roll motor power Hp 2
Steel roll motor power Hp 1
Rubber covered roll REVERS unit motor power Hp 2
Steel roll REVERS unit motor power Hp 1
Doctor blade REVERS unit motor power Hp 0,5
Feed speed mt/min 6/30

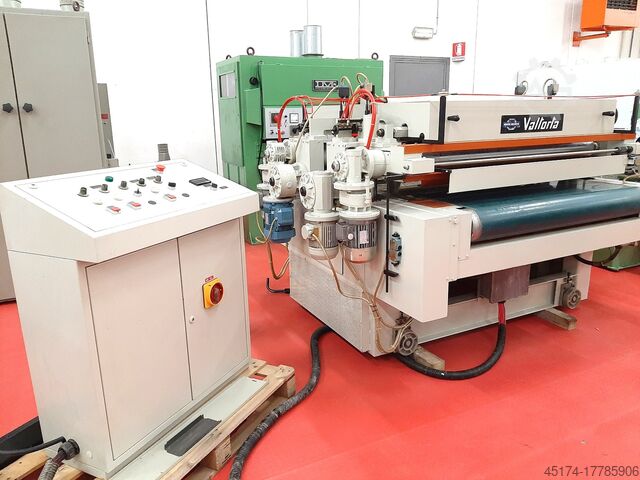

Independent electrical cabinet with easy commands
Machine installed on wheels and rails
Overall dimensions mm 2700 x 2000 x 1550 h
Weight kg 2700
