CNC torna ve freze merkezi

DMG Mori CLX 550

CLX 550 V6
2-axis universal lathe
with driven tools
Including C-axis, Y-axis, and counter spindle

Standard equipment:

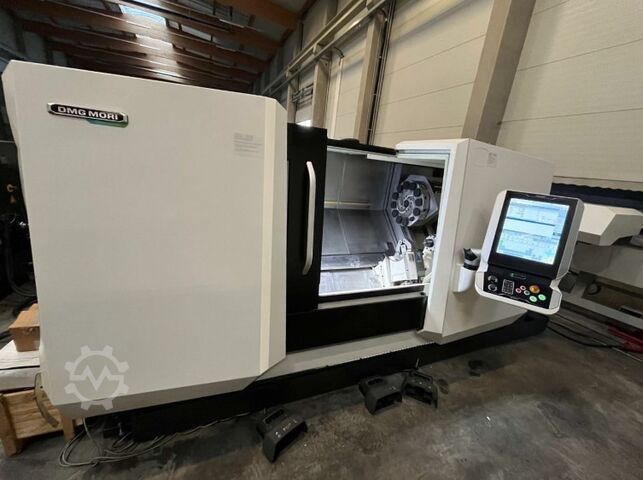

1. Ergonomic DMG MORI SLIMline control panel

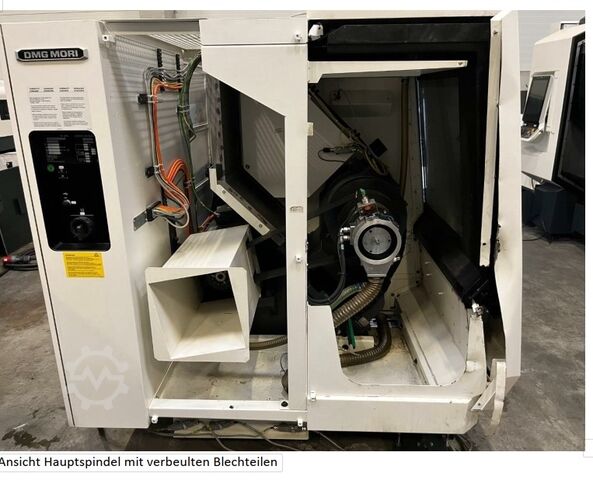

2. Main spindle A2-8 with AC motor, drive power 22 / 33 kW (100/40% duty cycle), 3,250 rpm
3. Counter spindle A2-6 with ISM 52 synchro, drive power 13 / 14 kW, torque 171.5/192 Nm (100/40% duty cycle), 5,000 rpm

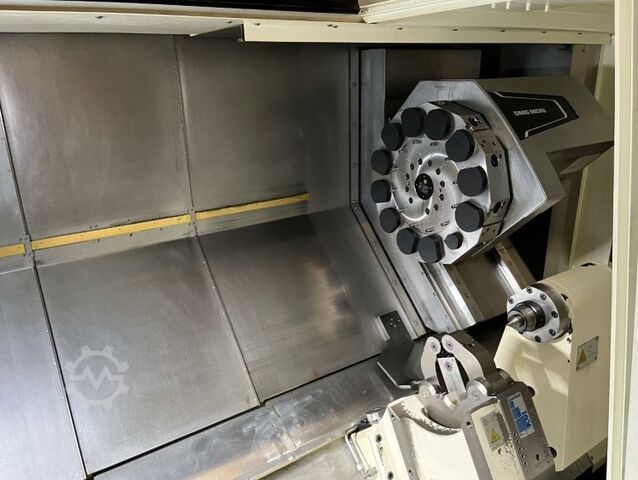

4. 12-position servo turret VDI 40 mounting, with Trifix® precision interface and 12 driven tool holders per DIN 5480
5. Y-axis ±60 mm
6. Chip tray
7. Hollow clamping device, max. bar capacity Ø 80 mm
8. Electronic handwheel
Drive power (100%/40% duty cycle) 22/33 kW and hydraulic clamping, with bar capacity Ø 102 mm
Surcharge for
Differential pressure chucking on the main spindle
Bar package & interface
Option includes:
- Workpiece pickup device for parts up to Ø 80 x 200 mm (Ø 100 x 200 mm with option C-B7000G), max. workpiece weight 4 kg
- Interface for bar feeder or bar loading unit (DMG MORI standard interface)
- Hinged belt chip conveyor instead of chip tray
- 4-color signal light
We also recommend the double cartridge filter option for coolant, especially under high-volume machining conditions.
Automatic workpiece ejector
Counter spindle with internal coolant supply for chuck cleaning.
Note: This option is recommended for machines with the workpiece pickup device option.
External chuck flushing for counter spindle. Option recommended for machines with automation.
Differential pressure chucking for the counter spindle
Tailstock function for the counter spindle; mechatronic control of contact force adjustable via program (contact force 250-600 daN), including foot pedal. Only for CLX 550 V6.
Direct path measuring system for X- and Y-axes. Note: Option only for machines version V4 and V6.
Manual tool measurement device in working area, manufacturer Marposs.
Documentation according to "Technical Documentation Delivery List" – included in the machine price.

Software option DXF import: Conversion of DXF files into NC programs (SIEMENS control)
Tool monitoring system: Easy Tool Monitor 1.0—monitoring per machining cut, learn function for determining tool monitoring limit via cutting process, manual adjustment/correction.
Technology Cycle: Alternating speed (turning) for vibration-sensitive applications.
Itjdpfxjxx Tcmo Ac Eop

Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and proper assembly – all from a single source. Billing according to individual terms and durations. Contact us for your personal offer.
