Palet etiketleyici

Logopak 920 II PF

Logopak 920 II PF Pallet Labeller

Manufacturer: Logopak
Pallet Labeller
Model: 920 II PF

Your advantages at a glance:

- Top speed (up to 240 pallets/hour)
- Fewer roll changes
- Maximum flexibility
- Robust construction (protective housing)
- Intuitive touchscreen operation
- Quick-change print engine system
- Thermal direct or thermal transfer printing for labels up to A3 size
- Internal database, error diagnostics, and many other features
- Can be used as a stand-alone solution or integrated into a network

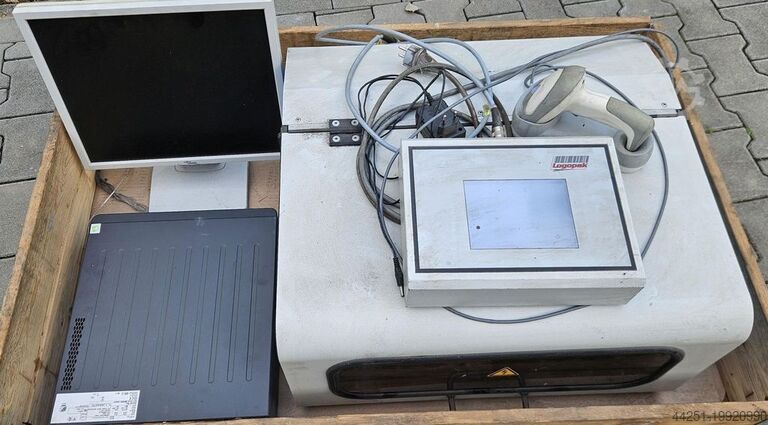

VLP 210 II F Label Printing System

The Logopak VLP 210 is an intelligent label printing system for barcode product identification. Its rugged mechanical design, featuring a 10 mm thick cast aluminum housing with solid steel hinge plates, is specially developed for continuous operation in harsh industrial environments.

The printer can be controlled externally via a serial interface or, thanks to its integrated intelligence, operated as a stand-alone device.

SPECIFICATIONS
- Print speed: 150 mm/s
- Core diameter: 50 mm/76 mm
- Label roll diameter: 180 mm
- Font size: 2 mm–50 mm
- Print direction: Rotatable by 90°, 180°, and 270°
- Barcode types: Codabar, Code39, Code128, CodeMatrix, EAN13, EAN8, EAN-128, Lata 2/5, Industrial 2/5, Interleave 2/5, ITF-14, Maxicode, PDF417, QR, UPC-A
- Interface: V.24 or 20 mA, network-capable
- Memory (RAM): 1 MB battery-buffered CMOS, expandable to 8 MB
Bcedpfx Agjw U Tc Tefow
- Operating temperature: 5 °C to 40 °C
- Dimensions (W x L x H): 700 mm x 500 mm x 400 mm
- Weight: approx. 50 kg
- Housing: Painted steel

Integrated Intelligence: IP54 control unit with Power Leap II® processing performance
• User-friendly control interface with color LCD display and touchscreen
• Multilingual user interface (standard)
• Internal article database and error logging (standard)
• Remote maintenance for software updates (optional)
• 10 standard fonts, 4 scalable
• Dual 64-bit RISC processors, 150 MHz clock speed
• RS 422 and 20 mA, Ethernet connection also available (10/100 Mbit)
• Industrial fieldbus for I/O control (CAN bus) with flexible programming using advanced PLC language
• Up to 200 digital I/Os for process control without loss of efficiency

Financing through our partner bank is available.
komplett-konzept.leasingo.de

You will find more new and used items in our shop!
International shipping costs on request!
