Kullanılmış Rausch Rs 3/1000 satın al (2)

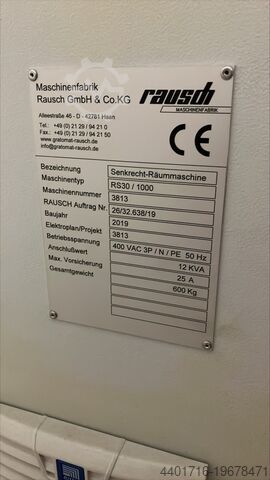

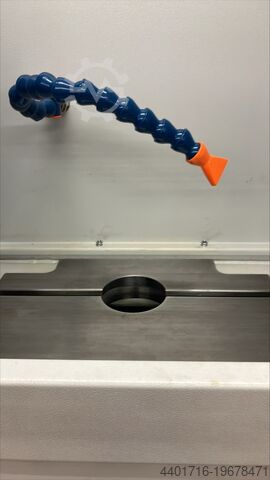

Durumu: yeni, Üretim yılı: 2019, makine/araç numarası: 3813, toplam ağırlık: 600 kg, güç: 7 kW (9,52 bg), giriş voltajı: 400 V, giriş frekansı: 50 Hz, broş uzunluğu: 1.000 mm, iş parçası çapı (maks.): 300 mm, Designation: Vertical Broaching Machine Manufacturer: Rausch GmbH & Co. KG Model: RS 30/1000 Machine No.: 3813 Year of Manufacture: 2019 Never commissioned Complete documentation Without broaching tools Nedpfxsw Evkij Afzown Working area Max. stroke: 1000 mm Max. pull force: 30 kN Min./max. cutting speed: 1.0 – 7.5 m/min Min./max. return speed: 1.0 – 7.5 m/min Internal broaching: Tool feeder: manual/automatic Max. workpiece diameter: 300 mm External broaching: Fixed/movable/rotatable workpiece clamping table Clamping table area: 255 mm x 400 mm T-slots: 2 pieces, 14 mm wide, parallel/perpendicular to the mounting surface of the tool slide Accessories/Special features: Coolant system Broaching tool safety device Machine enclosure for operator safety Space requirement: 0.72 m x 1.3 m x 2.67 m (LxWxH) Weight: 600 kg Voltage: 400 V Current type: Three-phase Υ/Δ 50 Hz Connected load: 12 kVA Max. fuse: 25A Motor: Main drive: 7 kW / 2000 rpm Coolant pump: 0.12 kW / 2700 rpm Broaching tool holder: Clamping jaws for flat and profile tools up to 18 mm shank width Coolant feed: ½" Please send inquiries by email only. All information has been provided to the best of our knowledge. Subject to errors. This offer is directed exclusively at businesses as defined in § 14 BGB (German Civil Code). The sale is made under exclusion of any warranty. This exclusion does not apply to claims for damages resulting from grossly negligent or intentional breach of duty by the seller or in the case of injury to life, body, or health. For further information, please visit the Witzenmann GmbH website under the sections "Imprint", "Terms and Conditions", and "Data Protection".

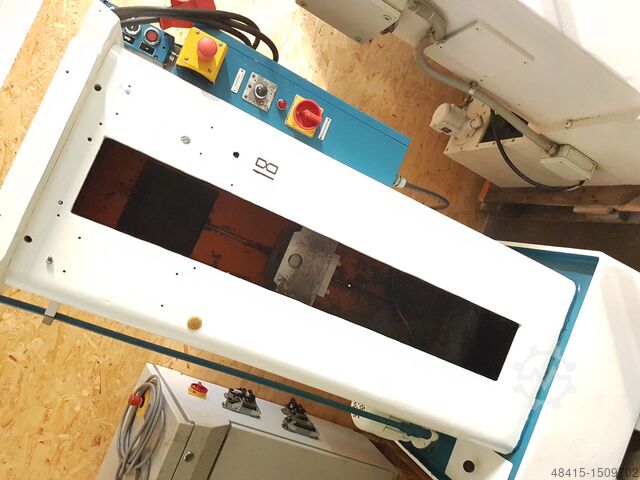

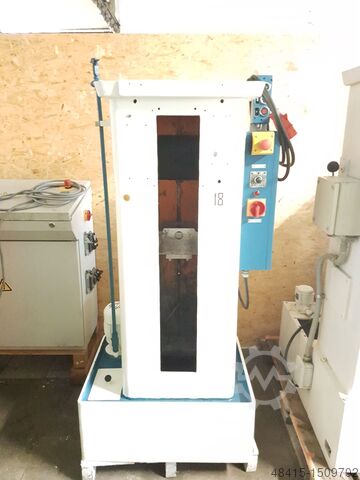

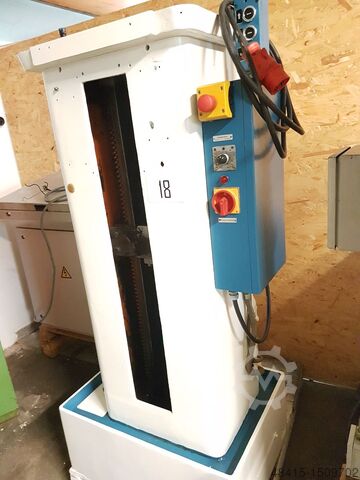

Üretim yılı: 1960, Durumu: iyi (kullanılmış), makine/araç numarası: 758, refitted kuvvet: 2 felç: 1000mm Nwedpfx Afsbrcmhezen
