Stromab TR 600 çapraz kesim testeresi

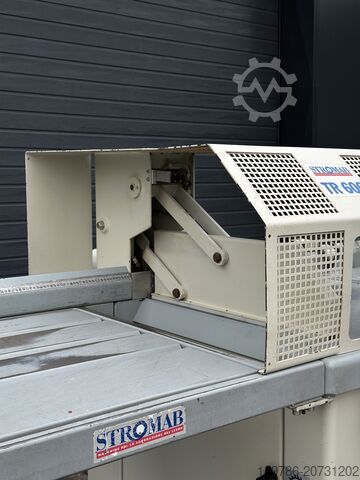

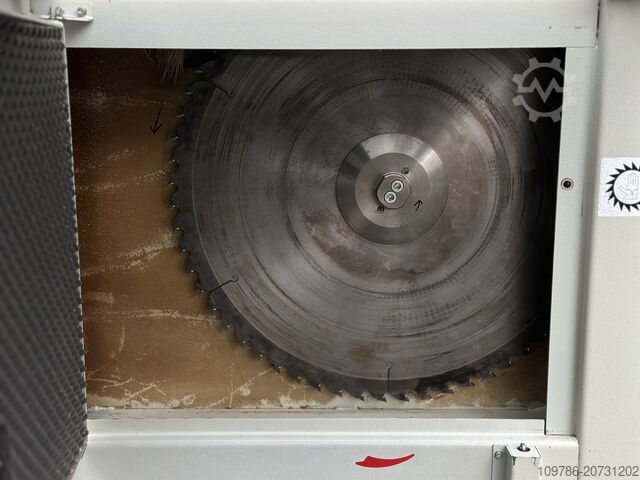

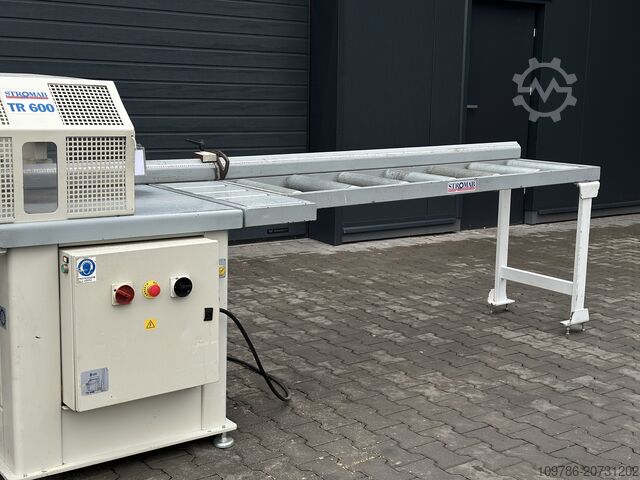

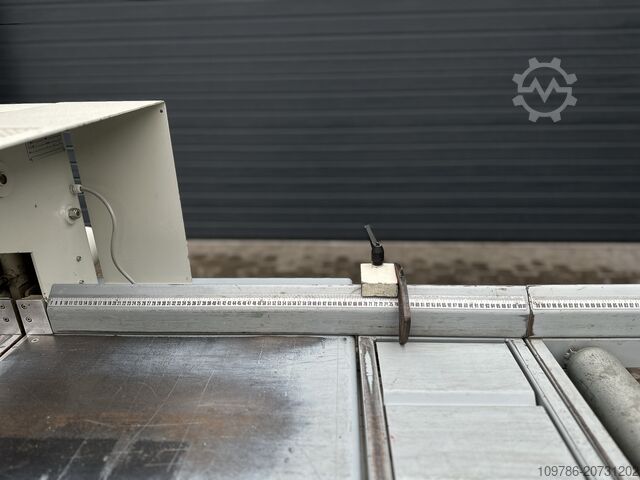

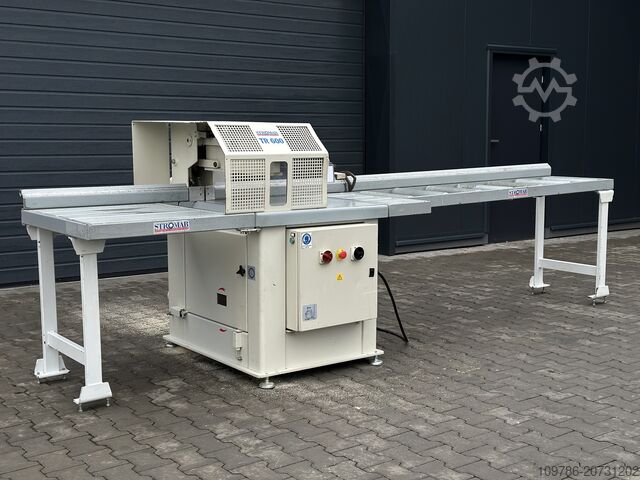

Stromab TR 600

Koşul: yeni gibi (kullanılmış), Fonksiyonellik: tamamen fonksiyonel, maksimum kesme yüksekliği 160 mm en fazla kesme genişliği 600 mm daire testere çapı 600 mm en küçük testere çapı 590 mm testere dönme hızı 2800 devir/dakika Psdpfx Aeyu Shnjnxjgk motor gücü 9,2 kW imalat yılı 2006 CE işareti

Koşul: ikinci el, Maximum cutting width: 250 mm Maximum cutting height: 80 mm Saw blade diameter: 400 mm Motor power: 3.0 kW Speed: 2800 rpm Compressed air connection: 6-8 bar Working height: 900 ±20 mm Dimensions (LxWxH): 530 x 869 x 1217 mm SALVAMAC Legend 400 High-speed semi-automatic cross-cut saw Maximum cutting range: 220x80 / 250x50 mm. (When cutting stacked boards, please note: Rear fence height is 100 mm) The frame is made entirely of robust, thick-walled steel, fully painted and reinforced. The solid floor mounting system is equipped with flanged steel feet for secure installation. The two-hand control system is ergonomically positioned for comfortable and efficient operation. Saw motor power: 3.0 kW The cutting speed is adjustable via a pneumatic regulator for precise settings. Additionally, the system features a shock-absorbing mechanism to minimize vibrations and enhance work safety. TCT circular saw blade, diameter 400 mm, Z=96 The upper pressure hood is equipped with an electro-pneumatic control for precise operation. The hood movement system uses innovative ball bearings with double dust protection and an automatic lubrication system to ensure smooth functionality. The electrical system complies with CE standards. CE models are standardly equipped with at least 1-meter-long infeed and outfeed tables (unpowered roller or flat table) to optimize workflow and meet safety requirements. Technical Data: ----- Maximum cutting area: 220x80 / 250x50 mm Motor power (saw blade): 3.0 kW Saw blade diameter: 400 mm Blade type: TCT Z=96 Blade rotational speed: 2800 rpm Air consumption per cycle: 5 Nl Extraction port: 1 x 120 mm / 1 x 100 mm Air pressure: 6 - 8 bar Voltage: 400V / 50 Hz, 3-phase Working table height: 900 mm ± 20 mm Color: RAL 7035 ----- Total ex works price: on request! ----- Options such as: - Infeed/outfeed tables with unpowered rollers/flat table - Mechanical or pneumatic stops - Electronic length stop / Salvastop pusher (Combo Series) - Movable front guard and more upon request! ----- (All technical data according to manufacturer, subject to change or error!) Psdpfxjxmk Dde Anxsgk

Koşul: mükemmel (kullanılmış), Üretim yılı: 2001, Fonksiyonellik: tamamen fonksiyonel, testere bıçağı çapı: 600 mm, kesme yüksekliği (maks.): 160 mm, maksimum kesme yüksekliği 160mm maksimum kesme genişliği 610mm testere çapı 600mm minimum testere çapı 590mm testere devir hızı 2800 dev/dak Pgodeymnvlspfx Anxjk motor gücü 7,5kW 2 dayama imal yılı 2001 ağırlık yaklaşık 700kg

Koşul: yeni, Üretim yılı: 2025, Dimensions (L/W/H): 0 x 0 x 0 mm Weight: 1,500 kg Total power requirement: 10.2 kW Automatic optimizing cross-cut saw with full optimization TR-600 MATRIX-6000 - Motor drive power: 9.2 kW - Saw blade diameter: 600 x 30 mm, Z=60 - Cutting capacity according to cutting diagram - Cutting capacity: 150 x 365 mm - Cutting capacity: 130 x 440 mm - Cutting capacity: 100 x 530 mm - Cutting capacity: 60 x 580 mm - Cutting capacity: 30 x 610 mm - Cutting cycle: 6 seconds - Hydraulic cross-cutting unit - Inclined worktable by 8° - Minimum workpiece thickness: 10 mm - Safety cover over cross-cutting unit - CE standard - Weight: 1,500 kg Connection data: - Supply voltage: 400 V / 50 Hz - Control voltage: 24 V - Extraction ports: 4 x 100 mm diameter - Extraction capacity: 2,400 m³/h - Air speed at extraction port center: approx. 25-35 m/s Electronically controlled pusher: - Feed length: 6,000 mm Pjdpfx Aov A Htkjnxegk - Maximum pusher speed: 90 m/min - Drive via brushless servo motor - Feed system with precision racks and measurement by servo motor - Pneumatic lifting of the pusher at cycle end and overhead return - Photocell for workpiece length measurement - Photocell for defect detection - Marking with fluorescent chalk - Worktable inclination: 8° - Positioning tolerance: +/- 0.4 mm Control: - High-resolution 12" touchscreen monitor (800 x 600 pixels) - Creation of cutting lists directly in the machine control - Up to 1,000 cutting lists with 10 dimensions each - Single list with up to 10,000 dimensions in sequence - 3 optimization options (maximum length, sequence, and workpiece sequence) - 3 optimization options (volume, minimal offcut, and priority) - Standard USB and Ethernet ports - Including OPTI function for automatic measurement of the workpiece to be cut. Optimal solution for processing material with variable lengths, either single or bundle feed - 6 optimization options (maximum length, sequence, workpiece sequence, volume, minimal offcut, and priority) - Including OPTI PLUS function for mark detection, which ensures full optimization and removal of knots and defects. - Marking with chalk Options: - Pneumatic side clamp: €850.00 - Creation of cutting lists on PC: €360.00 - Outfeed table: €360.00/m

Koşul: ikinci el, Üretim yılı: 2016, toplam yükseklik: 1.600 mm, toplam uzunluk: 14.100 mm, toplam genişlik: 1.600 mm, Ağırlık: 2.500 kg Pgsdpfx Anjwnh N Nexek - Üretim yılı: 2016 - Dokümantasyon mevcut: Evet - CE işareti mevcut: Evet - CE sertifikası mevcut: Hayır - Seri numarası: 6237 - Gerilim [V]: 415 - Akım tüketimi [A]: 20 - Taşıma ölçüleri: 14.100mm x 1.600mm x 1.600mm (uz x gen x yük) - Taşıma ağırlığı [kg]: 2.500kg - Taşıma paketleri [adet]: 4 Finansal Bilgiler KDV: Belirtilen fiyat KDV hariçtir KDV/Farklı Vergilendirme: KDV, işletmeler için indirilebilir Endüstri alanındaki tüm ürünler için teslimat ve takas her zaman mümkündür Yorick Diebels

Koşul: ikinci el, Üretim yılı: 2004, Fonksiyonellik: tamamen fonksiyonel, OTOMATİK KESME MAKİNESİ (TOMRUK) STROMAB MOD. TR600 – CE NORMUNA UYGUN - Giriş makaraları 2 metre - Çıkış makaraları 2 metre - 3 adet 250 mm uzunluğunda dayanak - CE normları - Yıl 2004 - Kullanım ve bakım kılavuzu + CE Sertifikası ile birlikte Pgjdpfx Aex Rrp Senxsk

Koşul: işlem için hazır (kullanılmış), Üretim yılı: 1997, Fonksiyonellik: tamamen fonksiyonel, giriş voltajı: 380 V, giriş akımı türü: trifaze, kesme yüksekliği (maks.): 160 mm, kesme genişliği (maks.): 600 mm, testere bıçağı çapı: 600 mm, toplam ağırlık: 550 kg, disk çapı: 600 mm, disk deliği çapı: 30 mm, Hidrolik Yatar Testere - STROMAB TR 600 Pjdpsxz S Dnsfx Anxsgk Motor: 7,5 kW, 380 V, 16,5 A Ağırlık: 550 kg Çalışır durumda, üretime hazır.

Koşul: yeni, Üretim yılı: 2025, Dimensions (L/W/H): 0 x 0 x 0 mm Weight: 1000 kg Total power requirement: 8.5 kW Fully automatic optimizing cross-cut saw TR-500 MATRIX-6000 (with full optimization) Pgjdpfx Anjv A Htdsxsk - Motor power: 7.5 kW - Saw blade diameter: 500 x 30 mm Z=144 - Cutting capacity as per cutting diagram - Cutting capacity: 135 x 280 mm - Cutting capacity: 125 x 295 mm - Cutting capacity: 95 x 325 mm - Cutting capacity: 80 x 340 mm - Cutting capacity: 55 x 360 mm - Cutting cycle: 4 seconds - Pneumatic cross-cutting unit - 8° inclined work table - Minimum workpiece thickness: 10 mm - Safety guard over cross-cutting unit - CE-compliant - Weight: 1000 kg Electrical connections: - Supply voltage: 400 V / 50 Hz - Control voltage: 24 V - Extraction port: 4 x 100 mm diameter - Extraction capacity: 2400 m3/h - Air consumption per cycle: 4 Nl - Air velocity at center of extraction port: approx. 25–35 m/s Electronically controlled pusher: - Infeed length: 6000 mm - Pusher speed: 90 m/min - Driven by brushless servomotor - Feed system with precision rack and pinion, position feedback via servomotor - Pneumatic pusher lift at end of cycle, top return - Photocell for workpiece length measurement - Photocell for defect detection – Marking with fluorescent chalk - 8° working surface inclination - Positioning tolerance: +/- 0.4 mm Control system: - High-resolution 12" touchscreen monitor (800 x 600 pixels) - Cut list creation directly in the machine's control - Up to 1000 cut lists with 10 sizes each - Single list with up to 10,000 sizes in sequence - 3 optimization options (maximum length, sequence, workpiece sequence) - 3 optimization options (volume, minimum waste, priority) - Standard USB and Ethernet ports - Includes OPTI function for automatic measurement of workpieces to be cut. Optimal solution for processing material of variable lengths, with single or bundled feeding - 6 optimization options (maximum length, sequence, workpiece sequence, volume, minimum waste, priority) - Includes OPTI PLUS function for defect marking detection, ensuring full optimization and removal of knots and defects - Marking with chalk Options: - Pneumatic side clamp: €850.00 - Cut list creation on PC: €360.00 - Outfeed table: €360.00/m

Koşul: yeni, Üretim yılı: 2025, Dimensions (L x W x H): 4500 x 1200 x 1200 mm Weight: 1,500 kg Total power requirement: 8 kW Optimizing cross-cut saw WS1 - Cutting height Position A: 130x175, 120x200, 100x230, 85x250, 50x280, 15x305 mm Position B: 100x290, 80x315, 50x340, 30x355, 15x365 mm - Cutting speed: up to 100 cycles/min - Feed speed: 120 m/min - Motor power: 7.5 kW - Voltage: 400 V / 50 Hz - Saw blade diameter: 500 mm, bore 30 mm - Speed: 3,600 rpm - Min. workpiece length: 550 mm - Min. workpiece width: 40 mm - Min. workpiece height: 15 mm - Cutting accuracy: +/- 0.8 mm - Infeed roller conveyor right side 2,000 mm with double marking station Pgjdpsvz Hz Eofx Anxsk - Outfeed table left side 1,000 mm - Extraction nozzle diameter: 200 mm - Air consumption: 20 NL/cycle - Operating pressure: 6 bar - Working height: 930 mm - PLC control with 7" color touch screen for easy operation + fixed length cross-cut mode + sequential cross-cut mode (storage for 10 different dimensions) + cross-cutting on marked chalk lines + cross-cutting fixed lengths and on marked chalk lines - CE conformity - Dimensions: L=4500, W=1200, H=1200 mm - Weight: 1,500 kg

Koşul: mükemmel (kullanılmış), Maksimum kesme genişliği: 560 mm Maksimum kesme yüksekliği: 100 mm Motor gücü: 7,5 kW Üretim yılı: 2007 Bıçak çapı: 700 mm (maksimum 750 mm) Çift elli kontrol Pnömatik baskı Pgsdpfx Asxz Up Honxok
