Kullanılmış Walter Helitronic Mini Power satın al (4)

Durumu: kullanılmış, Üretim yılı: 2013, The original year of manufacture of this machine was 1998. At the end of 2013, the machine was completely overhauled by Walter and converted from HMC500 to Fanuc control. In 2014, it was recommissioned. Maintenance and all corresponding parts have been replaced up to 2024. Service logs are available. 14 days ago, the spindle bearings were replaced with high-precision ball bearings. The spindle now runs at 0-1 µm and is very quiet. Suitable for regrinding and manufacturing new wood and metalworking tools of all kinds. Accessories: - FANUC i15 control Hfodoyrrhvspfx Adped - Cylindrical pallet loader - Toolstudio Software Standard & Advanced Version 2.1 - Toolstudio Software Drills - Toolstudio Software Boost - Toolstudio Calibration Probe - Software package 1 (cylindrical cutters) - Software package 2 (tapered spiral cutters) - Software package 3 (drills and step drills) - Software package 16 (warm-up program) - Measuring probe - Electrostatic mist collector - Oil drip tray - Automatic fire extinguishing system - Pneumatic workpiece clamping - Machine light Technical data: - X-axis longitudinal travel: 350 mm - Y-axis vertical travel: 200 mm - Z-axis cross travel: 470 mm - C-axis rotary table swivel range: +/- 200° - Workpiece holder: ISO 50 - Center height (with/without upper table): 130 / 160 mm - Maximum workpiece diameter: 100 mm - Workpiece length: 270 mm - Workpiece length for face grinding: 150 mm - Grinding wheel diameter: max. 150 mm - Grinding spindle drive power: 9 kW - Grinding spindle speed (stepless): 0 – 9500 rpm - Connected load: 400 V / 50 Hz / 25 kW - Weight: approx. 3600 kg - Dimensions (W x D x H): 2869 x 2716 x 1933 mm - Color: grey RAL 7035 / 7043.

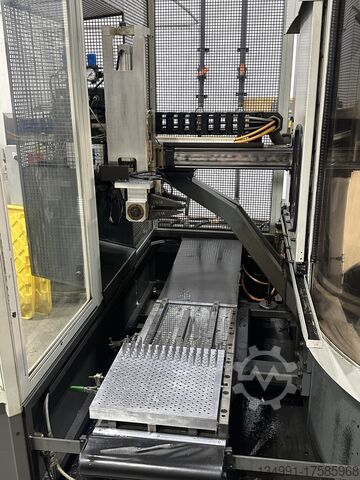

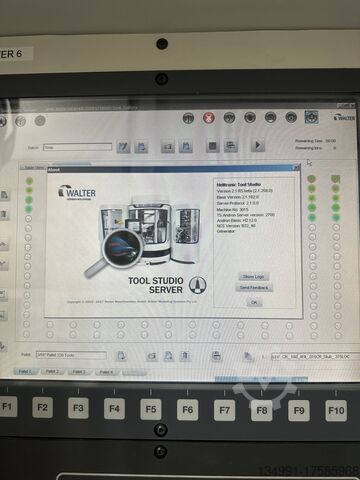

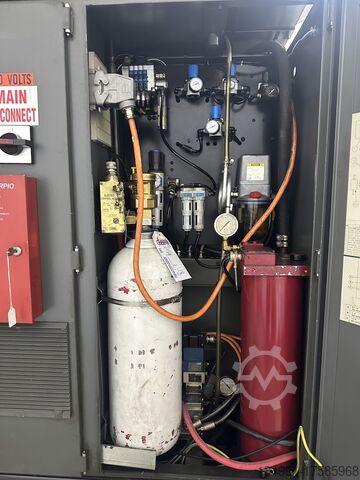

Durumu: kullanılmış, Üretim yılı: 2013, The original year of manufacture of this machine was 1999. In late 2013, the machine was completely overhauled by Walter and converted from HMC500 to Fanuc control. The machine was recommissioned in 2014. Maintenance and all associated parts were carried out and replaced up to 2024. Corresponding maintenance logs are available. Suitable for regrinding and manufacturing new wood and metal processing tools of all kinds. Accessories: - FANUC i15 control - Cylindrical pallet loader - Toolstudio Software Standard & Advanced Version 2.1 - Toolstudio Software Drills - Toolstudio Software Step Tools Hfedpfxeyrra Sj Adpjd - Toolstudio Software Boost - Toolstudio Calibration Probe - Software Package 1 (cylindrical end mills) - Software Package 2 (tapered spiral mills) - Software Package 3 (drills and stepped drills) - Software Package 4 (step tools) - Software Package 6 (woodworking tools) - Software Package 8 (thread taps) - Software Package 16 (warm-up program) - Software Package 32 (contours) - Measuring probe - Electrostatic mist separator - Oil collection tray - Automatic fire extinguishing system - Pneumatic workpiece clamping - Machine light Technical specifications: - X-axis longitudinal travel: 350 mm - Y-axis vertical travel: 200 mm - Z-axis cross travel: 470 mm - C-axis rotary table swivel range: +/- 200° - Workpiece mounting: ISO 50 - Center height (with / without sub-table): 130 / 160 mm - Max. workpiece diameter: 100 mm - Workpiece length: 270 mm - Workpiece length, face grinding: 150 mm - Grinding wheel diameter: max. 150 mm - Grinding spindle drive power: 9 kW - Grinding spindle speed, stepless: 0 – 9500 rpm - Connected load: 400 V / 50 Hz / 25 kW - Weight: approx. 3600 kg - Dimensions (W x D x H): 2869 x 2716 x 1933 mm - Colour: grey RAL 7035 / 7043.

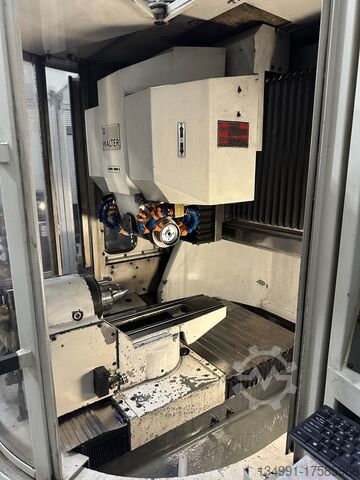

Durumu: iyi (kullanılmış), Üretim yılı: 2008, Walter Mini Power Machine type: 5-Axis Tool Grinding Machine Manufacturer: Walter Maschinenbau Model: Mini Power Year of manufacture: 2008 Control type: Fanuc Country of origin: Germany Location: Albstadt Delivery time: by arrangement Technical specifications: - 5 axes - Maximum workpiece length (cylindrical grinding): 255 mm - Maximum workpiece length (surface grinding): 185 mm - Maximum workpiece weight: 30 kg - Maximum travel in X / Y / Z axes: 320 / 200 / 470 mm - Rapid traverse speed in X, Y, Z axes: 15 m/min - C rotary axis: ± 200° - Linear axis A: ∞ - Minimum machined tool diameter: 1 mm - Maximum machined tool diameter: 100 mm Hfsdpfxjyk Ta Rs Adpod - Maximum grinding wheel diameter: 150 mm - Spindle diameter: 70 mm - Grinding spindle speed: 0–10,500 rpm - Power: 9 kW - Pump: 120 l/min - Electrical requirement: 25 kVa HELITRONIC MINI POWER Equipment: - CNC control: FANUC Series 31i Model A5 - CAD/CAM software: HELITRONIC TOOL STUDIO - Robot with automated tool loading - Package 1, 2, 3, 16 - Drip tray - Integrated measuring system (IMS)

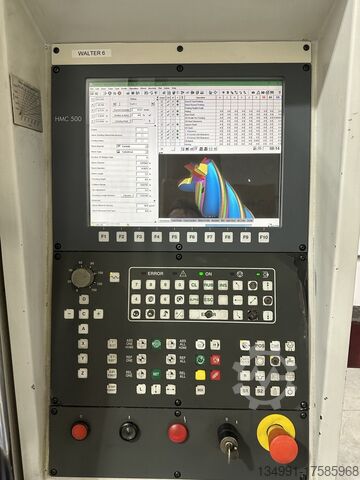

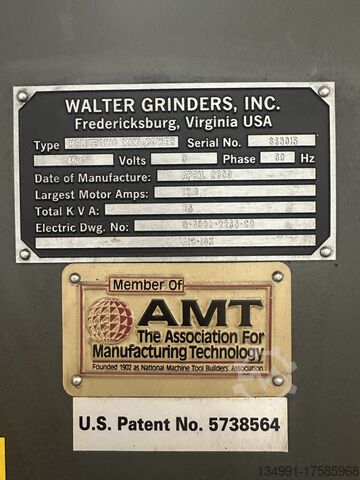

Durumu: mükemmel (kullanılmış), Üretim yılı: 2000, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 663015, Walter Helitronic Mini Power Production 5-Achsen CNC Werkzeug- und Formschleifmaschine Universelle Werkzeug- und Formschleifmaschine (CNC-gesteuert) Hersteller: Walter, Modell: Helitronic Mini Power Production, Serien-Nr.: 663015, Baujahr: 2000 Beschreibung: Geeignet zur Herstellung und Nachschärfung von Metall- und Holzbearbeitungswerkzeugen aller Art. Ausgestattet mit einem 1-Mikron-Filtrationssystem, daher ist die Maschine sehr sauber. Technische Daten: • Längsverfahrweg (X-Achse): 350 mm • Vertikalverfahrweg (Y-Achse): 200 mm • Quertraverse (Z-Achse): 470 mm • Schwenkbereich Rundtisch (C-Achse): +/- 200° • Arbeitsspindel ISO 50, Spitzenhöhe (mit/ohne Werktisch): 145 / 190 mm • Max. Werkstückdurchmesser: 100 mm • Max. Werkstücklänge: 270 mm • Max. Schleifscheibendurchmesser: 150 mm • Spitzenleistung: 11,5 kW, Schleifspindelmotor 9 kW, Drehzahlbereich 0 – 9500 U/min • Anschlusswert ca. 25 kW (460 V, 3 Phasen, 60 Hz) • Abmessungen (B x T x H): 2600 x 2550 x 1970 mm, Gewicht ca. 3950 kg, Farbe: grau RAL 7035 / grau RAL 7043 Zubehör: • Steuerung HMC 500 mit Windows XP Upgrade • Inklusive: Ebbco Filtrations- & Kühlgerät Modell PMF-MWF5-623-P-40K (Baujahr 2021), zur Filterung und Kühlung von bis zu 2 Schleifmaschinen. 40.000 BTU Kühlleistung, Filterung bis 1 Mikron. • Booster-Box Upgrade-Option sowie eine zusätzliche Booster-Box als Ersatz oder zur Nutzung an bis zu 3 weiteren Walter-Maschinen. Wert je Booster-Box: $10.000. • Stufenlose Drehzahlregelung, Messtaster, pneumatische Werkstückspannung • Feuerlöschsystem • Emulsionsabscheider • Ölauffangwanne, 2 Schleifscheibenflansche • Vollständiger Satz Handbücher Software: • Tool Studio Version 2.1 Standard & Steptools • WWM Software Zustand: • Neuer Y-Achsen-Motor & Kugelgewindetrieb 2021 eingebaut • Neue Spindel 2021 eingebaut • Neue Schaltschrank-Klimaanlage 2021 eingebaut • Alle neuen Encoder- & Motorkabel für A-, C-, X-, Y- und Z-Achse 2021 installiert • Aktuell in Produktion, erzielt sehr präzise und konstante Ergebnisse. Unter Strom besichtigbar. • Sämtliche Transportsicherungen vorhanden, damit die Maschine für den Versand fachgerecht gesichert werden kann. • Verladung auf einen Tieflader für $900 möglich. Versand- und Verpackungsangebote auf Anfrage verfügbar. Hsdpfxeu Ez Hue Adpsfd
